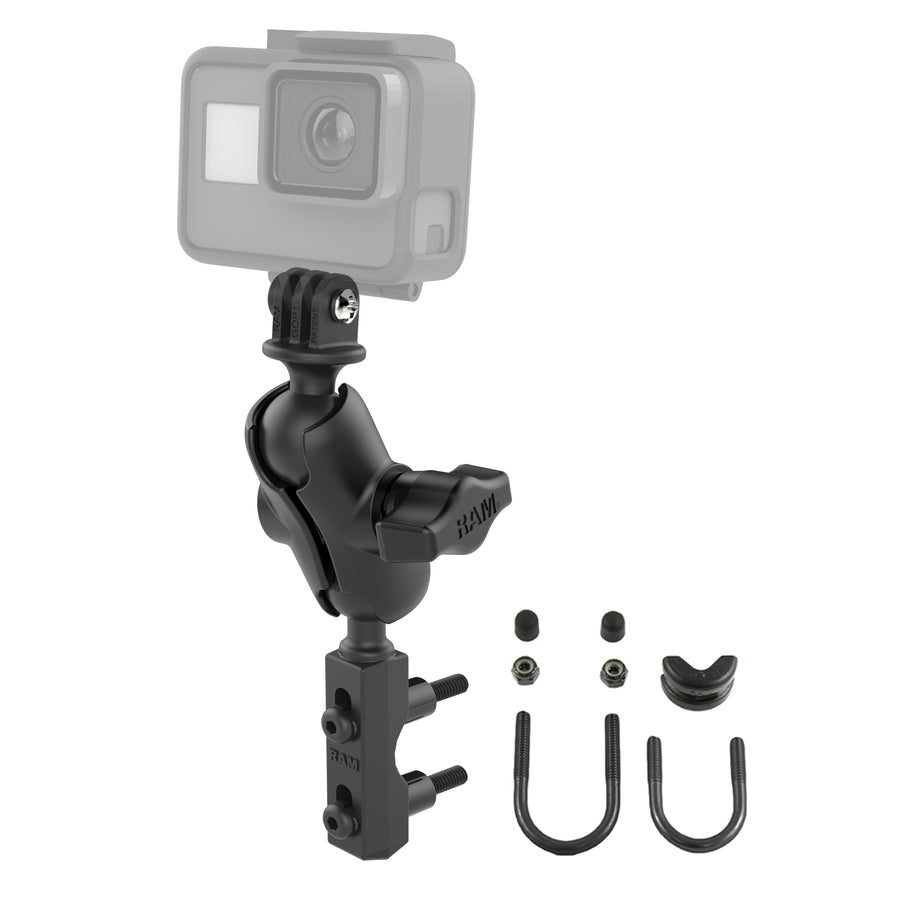

RAM® Motorcycle Brake/Clutch Reservoir Base with Action Camera Mount
Part #: RAM-B-174-A-GOP1U UPC: 793442952609 Patented

Product Information

Overview

The RAM-B-174-A-GOP1U consists of hardware for mounting to either brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, short length double socket arm and action camera mount. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts.

Specifications
hardware included	Assembly Hardware (2) M6 x 55mm Hex Bolts (2) #1/4-20 x 2" Hex Bolts (2) 1/4"-20 x 2.5" Hex Bolts (2) 1/2" Spacers (2) 1/4" Split Lock Washers (1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer
clamp range	.5" - 1.25" diameter
socket to socket length	1.75"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.71 lb

RAM® Motorcycle Brake/Clutch Reservoir Base with Action Camera Mount

Patented

RAM® Motorcycle Brake/Clutch Reservoir Base with Action Camera Mount

Name: RAM® Motorcycle Brake/Clutch Reservoir Base with Action Camera Mount
Brand: RAM Mounts
SKU: RAM-B-174-A-GOP1U
Price: 53.99 USD
Availability: InStock

Part#: RAM-B-174-A-GOP1U

UPC: 793442952609

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
