RAM® Motorcycle Brake/Clutch Reservoir & Handlebar Ball Base
Overview

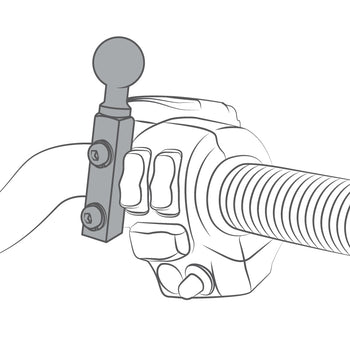

The RAM-B-309-7U combination handlebar and brake/clutch reservoir base provides the ultimate flexibility for mounting to your motorcycle. Attach the base to either your handlebar or brake/clutch, and achieve near-infinite adjustability and ideal viewing angles for your phone, GPS unit, or action camera. The zinc-coated metal U-bolt accommodates rails ranging from 0.5" to 1.25" in diameter. Hardware included.
Features
- Combination handlebar and brake/clutch reservoir base for motorcycles; includes U-bolt hardware
- Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty

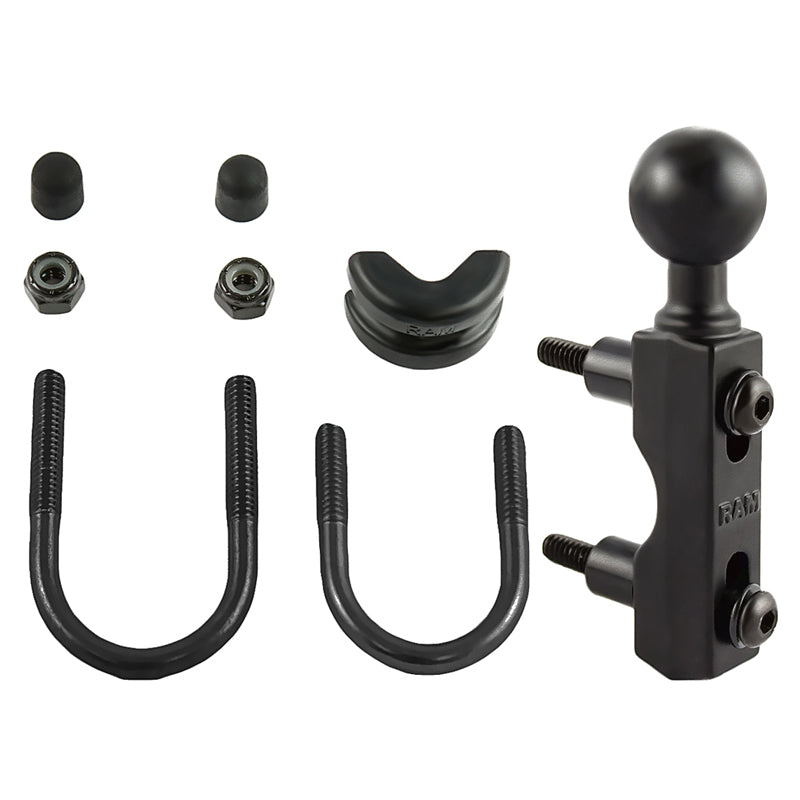

hardware included:
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nyloc Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range:
.5" - 1.25" diameter
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
0.47 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
Instructions
Documents
QUESTIONS & ANSWERS
Have a Question?
-
Will this fit a 2022 BMW R1250RT?
RAM Mounts does not make bases for specific makes or models of motorcycle, as long as the hole spacing for the RAM-B-309-7U lines up with the mounting holes for your controls, that base will be a solid option for you.
