RAM^® Handlebar Mount for Garmin nuvi 220, 500, 510, 550 & zumo 220
Part #: RAM-B-149Z-GA32U UPC: 793442916601 Patented

Product Information

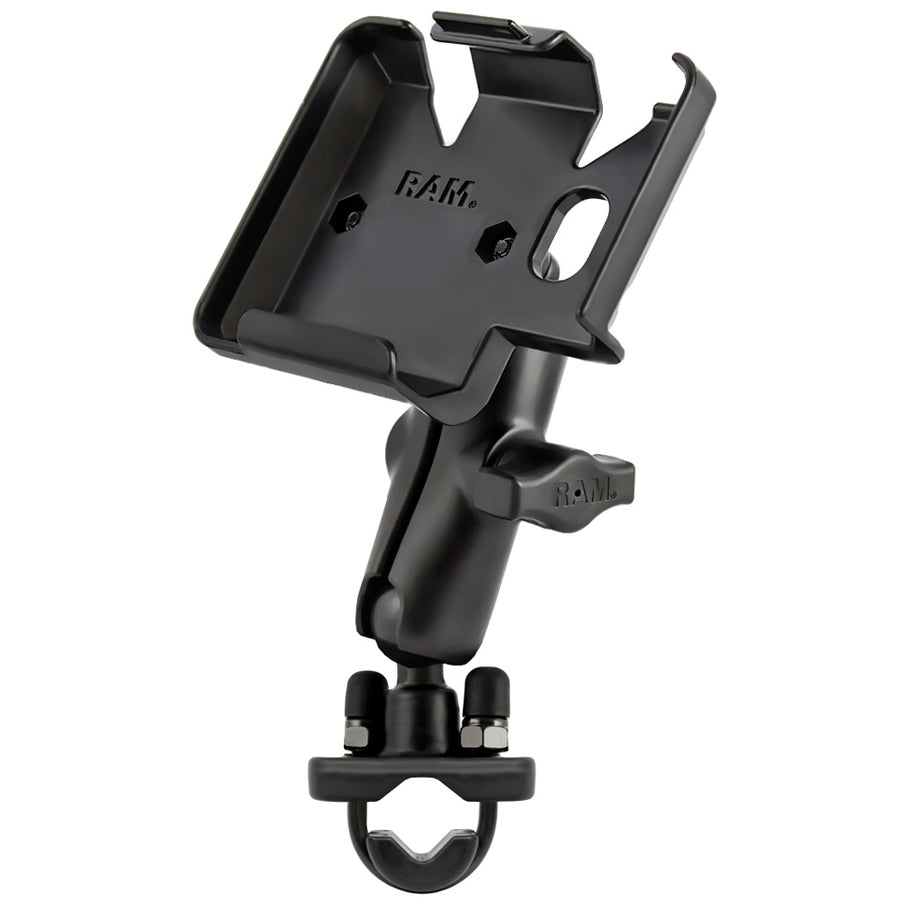

Overview	The RAM-B-149Z-GA32U consists of a zinc coated u-bolt base, double socket arm and high strength composite cradle for the Garmin nuvi. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

Product Information

Overview

The RAM-B-149Z-GA32U consists of a zinc coated u-bolt base, double socket arm and high strength composite cradle for the Garmin nuvi. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

Specifications
hardware included	Assembly Hardware (1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer
clamp range	.5" - 1.25" diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.68 lb

RAM<sup>®</sup> Handlebar Mount for Garmin nuvi 220, 500, 510, 550 & zumo 220

Questions about our products? Email us for support.

Patented

RAM^® Handlebar Mount for Garmin nuvi 220, 500, 510, 550 & zumo 220

Part#: RAM-B-149Z-GA32U

UPC: 793442916601

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

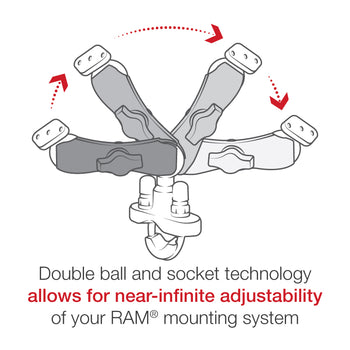

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.
