$43.49
Medium Arm, Diamond Plate

Features

  • Includes zinc-coated U-bolt base that accommodates rails from .5" to 1.25" in diameter, medium length B size RAM® double socket arm, and diamond adapter ball base for connecting to a wide variety of device holders
  • RAM® Mounts ball and socket technology allows for near-infinite adjustability on bicycle and motorcycle handlebars
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

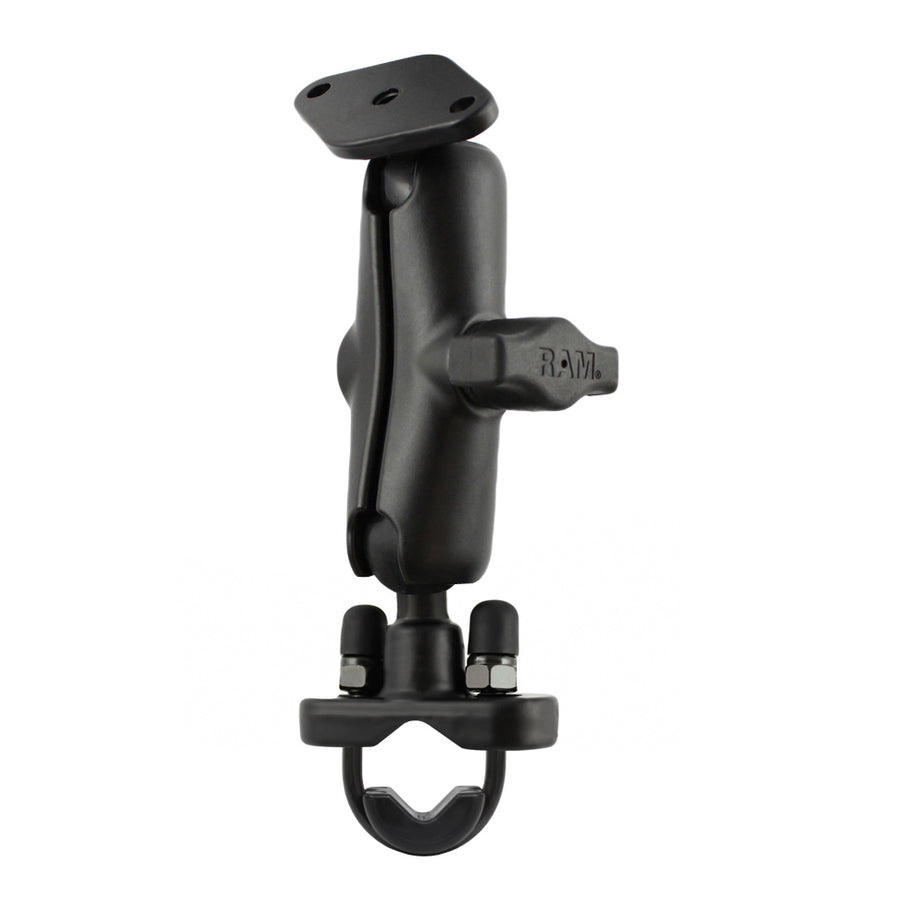

RAM® Handlebar U-Bolt Double Ball Mount - B Size Medium
Part#:RAM-B-149ZU UPC:793442149009 Patented
The RAM-B-149ZU consists of a zinc-coated U-bolt base, double socket arm, and diamond adapter base. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM® components. Included is hardware that will accommodate rails from .5" to 1.25" in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. Also included is a B size medium length double socket arm featuring adjustment points at both ends, allowing for near-infinite adjustability.

hardware included

(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

.5" - 1.25" diameter

socket to socket length

3"

hole pattern

2-Hole AMPS: 1.912"

plate size

2.43" x 1.31"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.63 lb

Components

RAM® Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter - B Size RAM-B-231ZU $19.99
RAM® Double Socket Arm - B Size Medium RAM-B-201U $19.49
RAM® Diamond Ball Base - B Size RAM-B-238U $9.49
