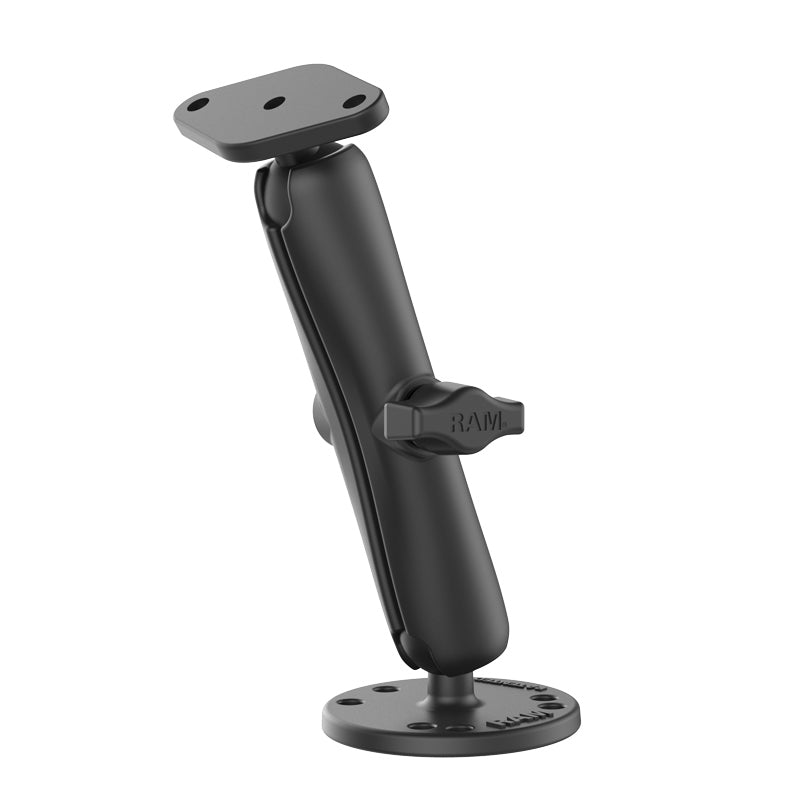

RAM® Double Ball Drill-Down Mount with Diamond Plate - Long
B Size
Long Arm
$45.49
Overview
The RAM-B-138U-C consists of a 2.5" diameter round base that contains the universal AMPs hole pattern, LONG double socket arm and diamond base adapter. The mount is designed with a 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base adapter will connect to most RAM cradles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.
Features
- Drill-down mounting solution; diamond plate features 2-hole AMPS hole pattern for attachment to compatible device holders
- Includes round ball base, diamond ball base, and B size long length double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty
product dimensions:
Overall Height: 7.3125"
socket to socket length:
5.31"
hole pattern:
Diamond Plate: 2-Hole AMPS: 1.912"
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter
plate size:
Round Plate: 2.5" Diameter
Diamond Plate: 2.43" x 1.31"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
0.75 lb
Questions & Answers
Have a Question?
-
What size screws are needed for the holes on this ball plate?
The most common screw sizes are #8, #10, M4 and M5 screws. However, if you are pairing this with any RAM® Holder, the holder will come with the necessary hardware to connect to your mount.
