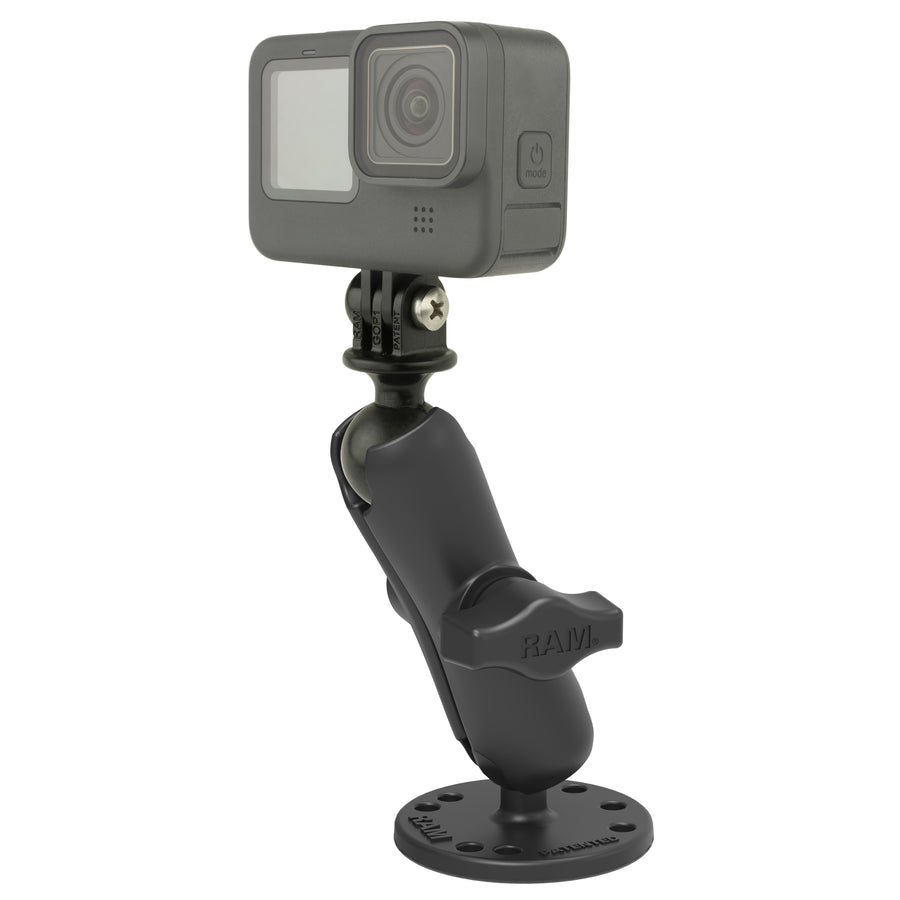

RAM® Drill-Down Mount with Universal Action Camera Adapter | |
---|---|
Part #:
RAM-B-138-GOP1U
UPC:
793442947919
|
![]() |
Product Information | |
---|---|
Overview | The RAM-B-138-GOP1U consists of a 2.5" diameter round base with the universal AMPS hole pattern, STANDARD size double socket arm and 1" diameter ball with custom GoPro® Hero adapter. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The RAM-B-138-GOP1 can be used as a drill-down or a temporary, removable mounting solution with the addition of the RAP-339U accessory. The GoPro® Hero adapter attaches directly to the underside of the camera, replacing the factory mounting bracket. |
Specifications | |
---|---|
hardware included | Assembly Hardware |
socket to socket length | 3" |
hole pattern | 4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter |
plate size | 2.5" Diameter |
ball size | B Size (1") |
weight capacity | Standard Use: 2 lbs Heavy-Duty Use: 1 lb |
materials | Marine-grade aluminum High strength composite |
packaging type | Poly Bag |
Weight | 0.49 lb |


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
GoPro
Hero
Session
Garmin
Virb
SJCAM
SJ4000
SJ5000X Elite 4K
Muvi
veho K-Series K-2 Pro 4K
Xcel
1080C
Vivitar
HD
ACTIVEON
CX Gold
Discovery
Kids Photo & Video Adventure Camera
AEE
ACE S70 Black 16MP 2"
AKASO
EK7000 4K WIFI Sports
AEDILYS
4K WIFI Sports
Lightdow
LD4000 1080P HD
WiMiUS
Q2 Black 1080P Wifi
Vtin
4k
WiFi


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
GoPro
Hero
Session
Garmin
Virb
SJCAM
SJ4000
SJ5000X Elite 4K
Muvi
veho K-Series K-2 Pro 4K
Xcel
1080C
Vivitar
HD
ACTIVEON
CX Gold
Discovery
Kids Photo & Video Adventure Camera
AEE
ACE S70 Black 16MP 2"
AKASO
EK7000 4K WIFI Sports
AEDILYS
4K WIFI Sports
Lightdow
LD4000 1080P HD
WiMiUS
Q2 Black 1080P Wifi
Vtin
4k
WiFi

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-B-138-GOP1U!
We'll email you once the item is available.
Overview
The RAM-B-138-GOP1U consists of a 2.5" diameter round base with the universal AMPS hole pattern, STANDARD size double socket arm and 1" diameter ball with custom GoPro® Hero adapter. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The RAM-B-138-GOP1 can be used as a drill-down or a temporary, removable mounting solution with the addition of the RAP-339U accessory. The GoPro® Hero adapter attaches directly to the underside of the camera, replacing the factory mounting bracket.
hardware included:
Assembly Hardware
socket to socket length:
3"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size:
2.5" Diameter
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
0.49 lb
