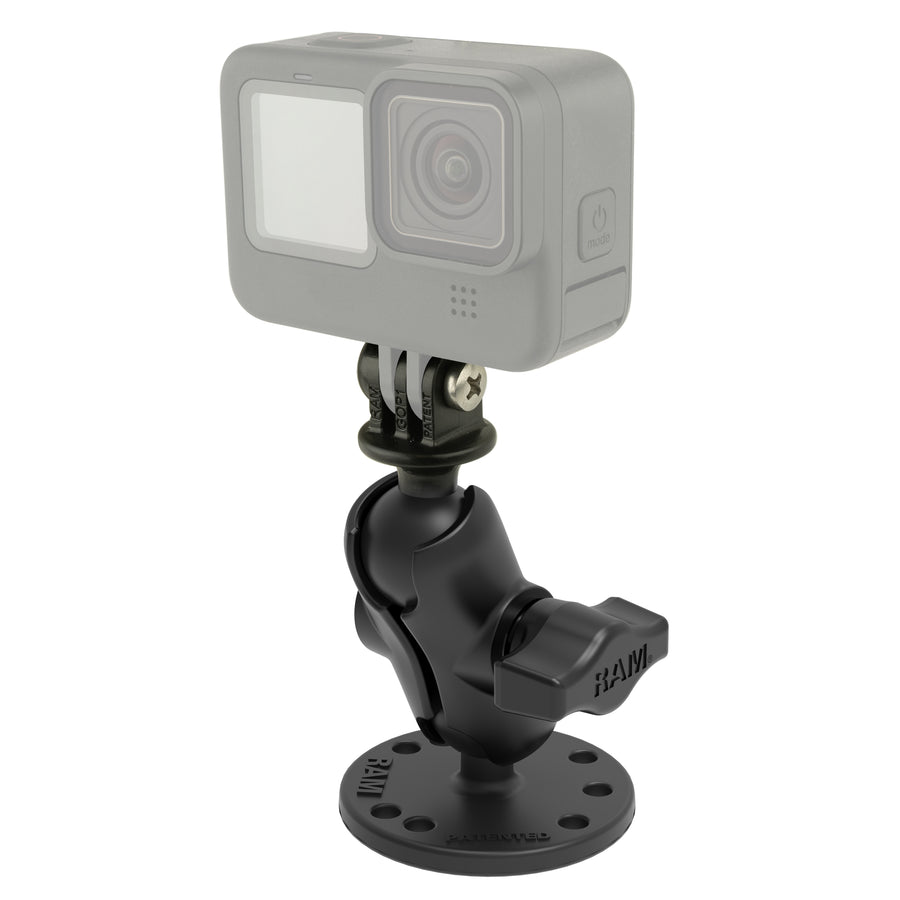

RAM® Drill-Down Double Ball Mount with Universal Action Camera Adapter
Part#: RAM-B-138-A-GOP1U
UPC: 793442936593
Ball Icon B Size
Arm Icon Short Arm
$35.99

Overview

The RAM-B-138-A-GOP1U consists of a 2.5" diameter round base with the universal AMPS hole pattern, SHORT size double socket arm and 1" diameter ball with custom GoPro® Hero adapter. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The RAM-B-138-A-GOP1U can be used as a drill-down or a temporary, removable mounting solution with the addition of the RAP-339U accessory. The GoPro® Hero adapter attaches directly to the underside of the camera, replacing the factory mounting bracket.

hardware included:

Assembly Hardware

socket to socket length:

1.75"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

plate size:

2.5" Diameter

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

0.39 lb

Print

Instructions
