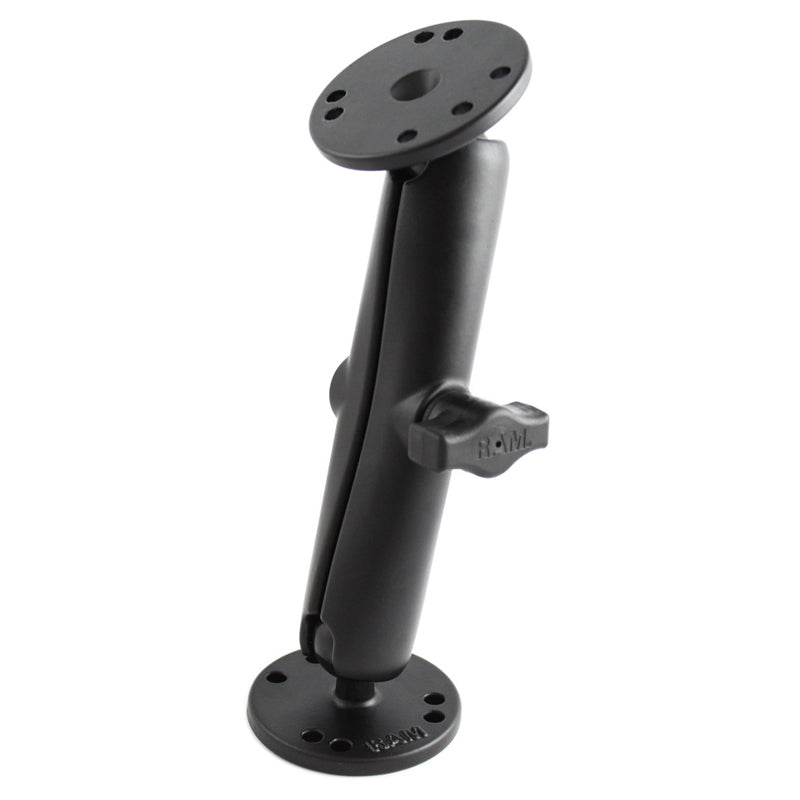

RAM® Universal Double Ball Mount with Two Round Plates - B Size Long
B Size
Long Arm
$46.49
Overview

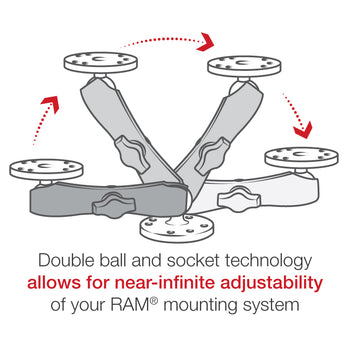

The RAM-B-101U consists of a long length B size 1" double socket arm and two 2.5" diameter round ball bases that contain the universal AMPS hole pattern. The ball and socket system provides shock and vibration damping, and allows for near-infinite adjustability to achieve an ideal viewing and operating angle of your device.
Features
- Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders
- Includes two round ball bases and B size long length double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
product dimensions:
Overall Height: 7.3125"
socket to socket length:
5.31"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size:
2.5" Diameter
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
0.8 lb
Questions & Answers
Have a Question?
-
Does this SKU include the hardware needed to bolt it to a flat surface?
No, the hardware required to install this mount is not included. Because these are mounted to such a wide variety of materials and applications we do not know what hardware to provide. The best resource for that type of information is usually a local hardware store or the manufacturer of the vehicle you are mounting to.
-
What size screws are needed for the holes on this ball plate?
The most common screw sizes are #8, #10, M4 and M5 screws. However, if you are pairing this with any RAM® Holder, the holder will come with the necessary hardware to connect to your mount.
-
I'm looking to purchase sku RAM-B-101U-C with sku RAM-HOL-TABL24U. Is anything else needed to make sure this has security (lockable) solution, or anything else needed?
To make the mount fully lockable, you would also need a locking knob for the double ball mount itself. There are a few options to choose from; top two would either be the key locking RAM-KNOB3LU, or the Pin-Lock security knob RAP-S-KNOB3U.
