RAM® Double Ball Mount for Lowrance Elite-4 & Mark-4 Series
Overview

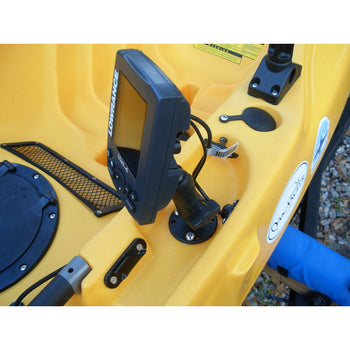

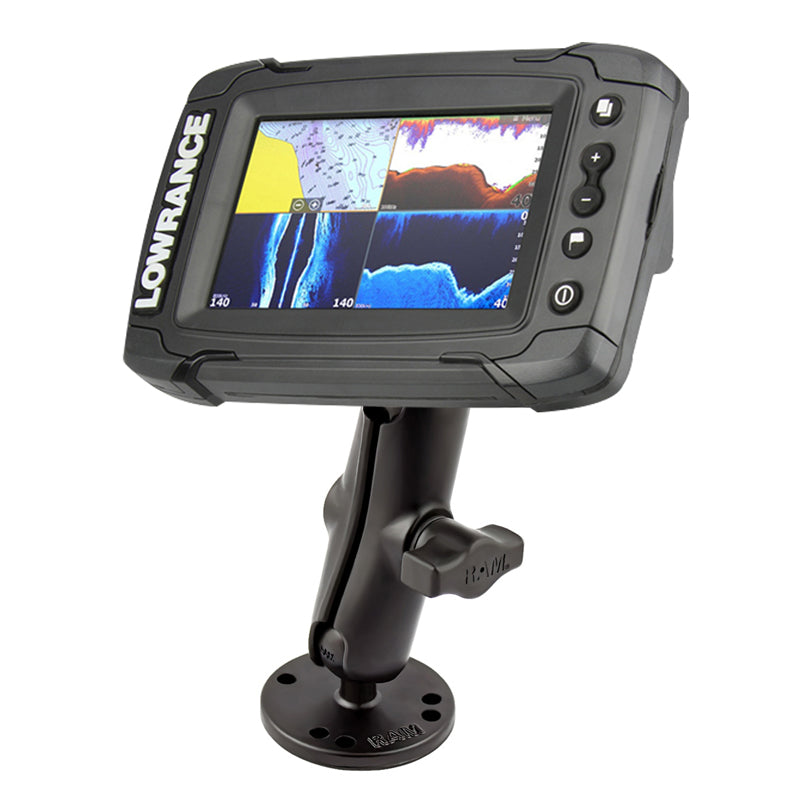

The RAM-B-101-LO11 consists of a 2.5" diameter round base with the universal AMPS hole pattern, double socket arm and adapter base that inserts directly to the back of Lowrance Elite-4, Mark-4 and Hook-4 fish finders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your fish finder in seconds. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm; this with RAM's rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
product dimensions:
Overall Height: 5"
socket to socket length:
3"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size:
2.5" Diameter
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
packaging type:
Retail Box
Weight:
0.58 lb
