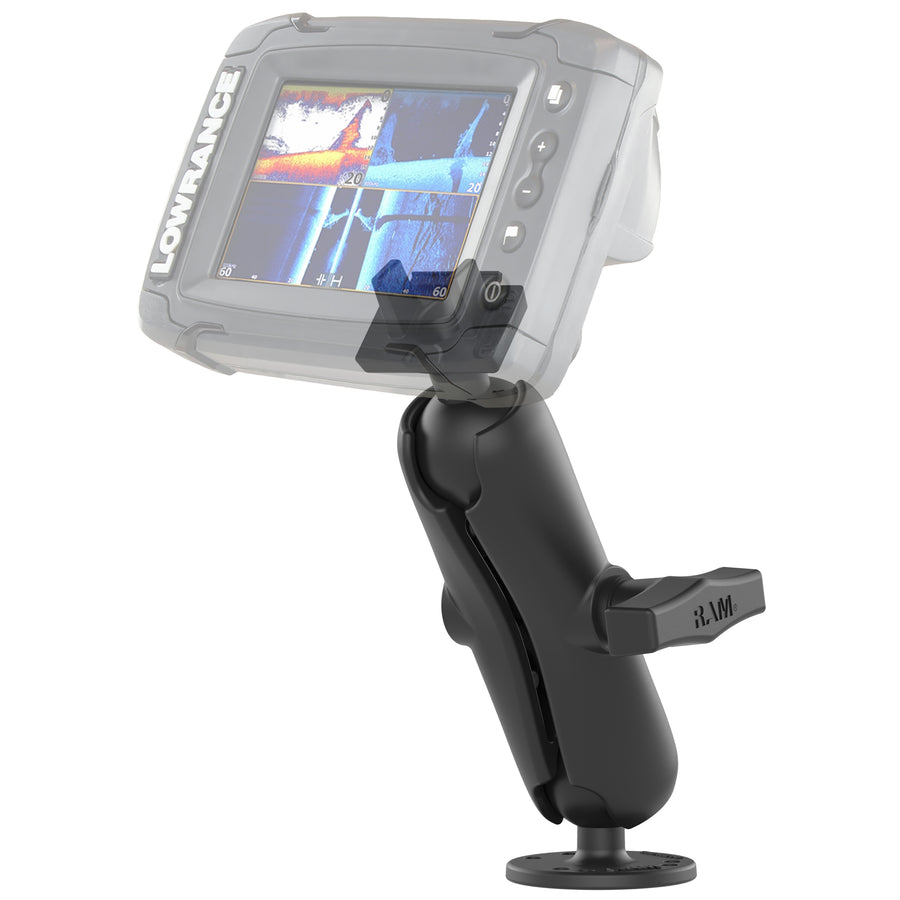

RAM® Double Ball Mount for Lowrance Elite-5 & Elite-7 Ti + More
Overview
The RAM® Double Ball Mount for Lowrance Elite-5 & Elite-7 Ti + More (RAM-101-LO11) is a complete, drill-down mounting solution for compact Lowrance fish finders. This kit consists of C size components, including a 2.5" diameter round base, medium-length double socket arm, and adapter inserts directly to the back of Lowrance Elite-5, Elite-5 Ti, Elite-7 Ti/Ti², HOOK-3, HOOK-4, HOOK-5, and MARK-5 fish finders. The adapter base serves as a quick release mechanism, allowing you to remove or transfer your fish finder in seconds. The patented rubber ball for use within the double socket arm system, allowing for almost infinite adjustment and perfect viewing angles. The drill-down base features the universal 4-hole AMPS pattern.
Features
- Drill-down mounting solution for Lowrance devices
- RAM® Mounts ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty
product dimensions:
Overall Height: 7.35"
socket to socket length:
4.66"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size:
2.5" Diameter
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Marine-grade aluminum
packaging type:
Retail Box
Weight:
1.22 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
QUESTIONS & ANSWERS
Have a Question?
-
What hardware should be used with the mount?
Hardware depends on the type of material it is being mounted into or whether or not you have access to the back side of the surface that is being mounted to. The best resource for that type of information is usually a local hardware store or the manufacturer of the vehicle/boat you are mounting to.
