Overview

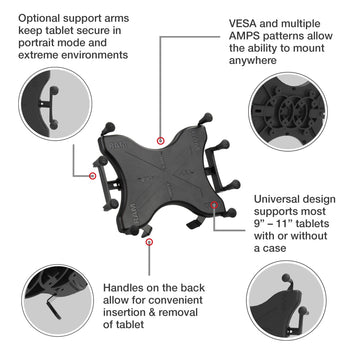

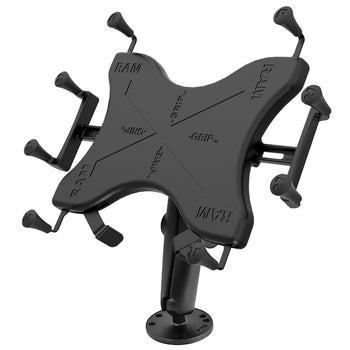

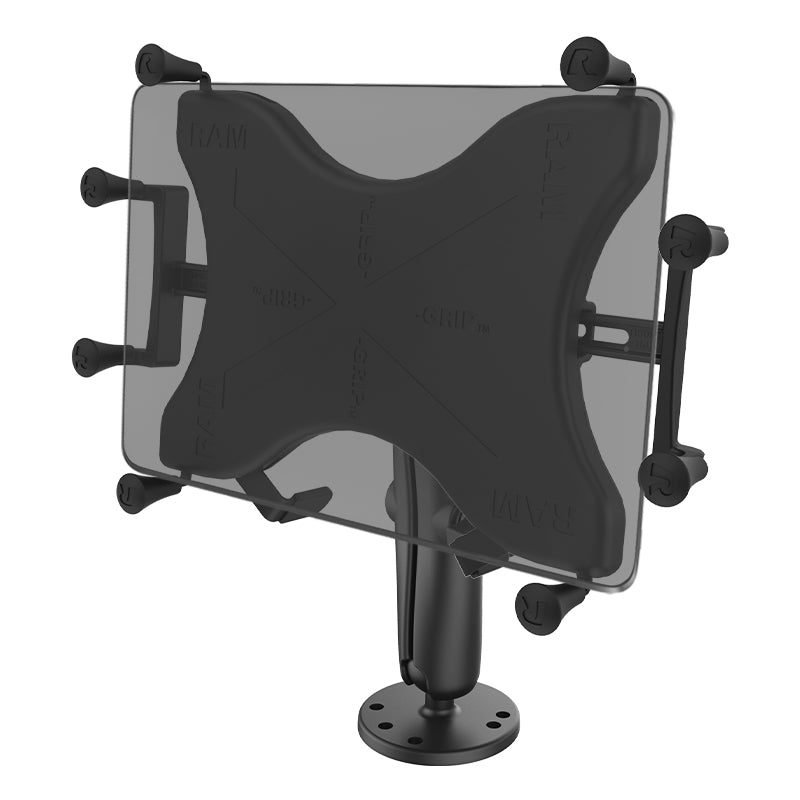

The RAM-B-101-C-UN9U consists of a long length B size 1" double socket arm and two 2.5" diameter round ball bases that contain the universal AMPS hole pattern, as well as the RAM® X-Grip® universal holder for 9"-11" tablets. The RAM® X-Grip® features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Included are easy access grip knobs located on the back of the cradle for quick release of your tablet. RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping. This version of the RAM® X-Grip® holder is compatible with tablets that will fit the dimensions listed below. It is important to verify the dimensions of device with its case, sleeve, or skin when determining the overall size.
Features
- Complete flat surface, drill-down mounting solution for the RAM® X-Grip® 9"-11" tablet holder
- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; easy access grip knobs on the back of the holder allow for the quick release of your device
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
hardware included:
Assembly Hardware

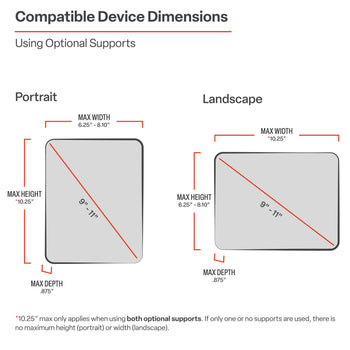

holder dimensions:
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"
socket to socket length:
5.31"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
1.91 lb
Instructions
Documents
Questions & Answers
Have a Question?
-
Will this holder not work if the additional side supports do not fit my tablet?

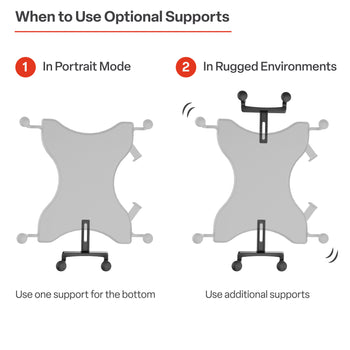

In most cases this should not be an issue. The additional side supports are optional to keep your tablet secure in extreme, high vibration environments; or if you are supporting the tablet in portrait mode, it is recommended to install one of the supports to hold the bottom of the tablet.
-
How is it that this holder fits 9" - 10" tablets, yet it can also hold the iPad Pro 11"?
The 11 in iPad Pro 11 refers to the diagonal dimension of the screen display. Overall dimensions of this tablet are 9.74" x 7.02" x .23", which fits the dimension ranges of this holder. For all universal holders including the RAM® X-Grip®, it is a matter of cross referencing overall dimensions (L x W x D) when determining compatibility. Case dimensions will need to be taken into account if your tablet is in a case.
-
What size screws are needed for the holes on this ball plate?
The most common screw sizes are #8, #10, M4 and M5 screws. However, if you are pairing this with any RAM® Holder, the holder will come with the necessary hardware to connect to your mount.
-
We are in Jordan and are seeking a mount for the iPad Air 6th generation, specifically one that includes two suction cups for secure attachment. The mount should be suitable for use in a cockpit. Could you recommend any compatible models?
For the iPad Air gen 6 in a cockpit we recommend this complete double suction cup mount with cradle:
https://rammount.com/products/ram-b-189-piv1-un9u
And you can see our Middle Eastern Ram dealers on this page:
https://rammount.com/pages/partners#international -
Does this include the arm?
Yes, the RAM-B-101-C-UN9U does come with the double socket arm as well as two round plates with ball. One screws into the back of the X-Grip holder and serves as the attachment point for one one of the arm, while the other round plate is the drill down base that serves as the attachment point for the arm to the mounting surface.
-
This part says it has a maximum height of 10.25" (using optional supports). Is it possible to use this cradle with a tablet that is taller than that?
Yes, the maximum height listed only applies if you are using the optional side support arms. If you leave at least one of those arms off of the mount it will be able to support taller tablets.
