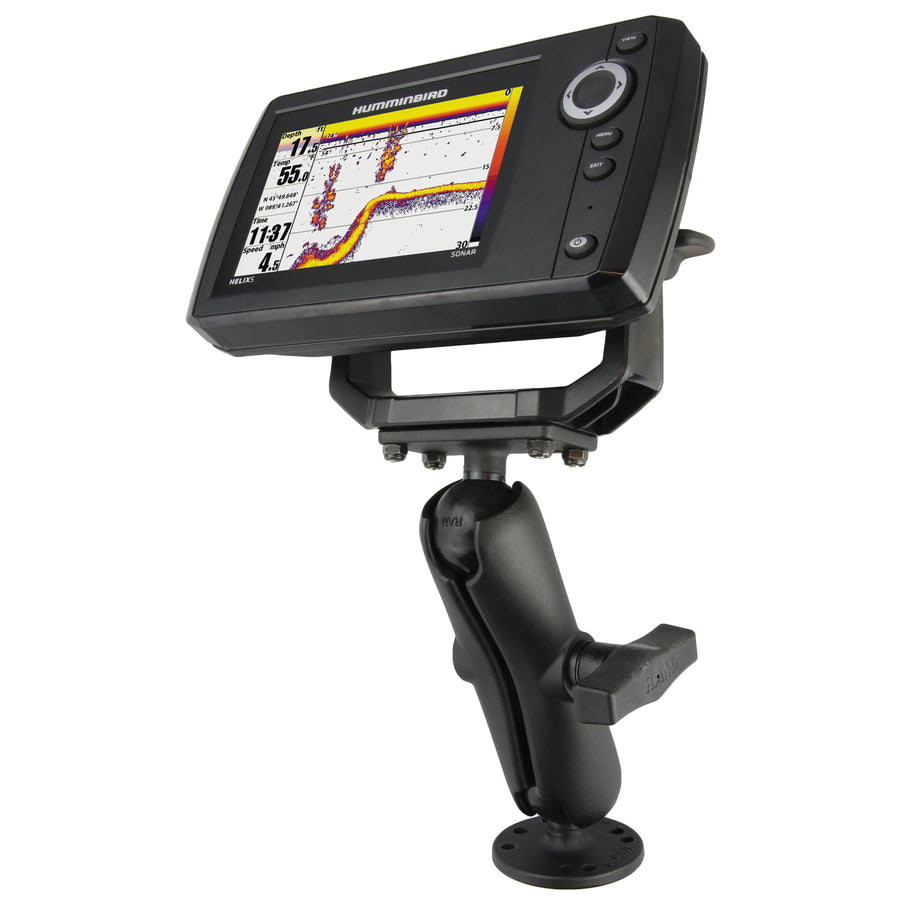

RAM® Drill-Down Double Ball Mount for Humminbird Helix 5 - Medium
$64.49
Overview
The RAM® Drill-Down Double Ball Mount for Humminbird Helix 5 (RAM-202-153-202U) is a rugged, adjustable mounting solution designed for reliable performance on the water. Constructed from powder-coated, marine-grade aluminum, this mount includes a C size medium-length double socket arm, a 2.5" round base with the universal AMPS hole pattern for drill-down installation, and a 1.5" x 3" rectangular ball adapter for the Humminbird Helix 5. Its overmolded rubber ball helps absorb shock and vibration for a smoother, more secure experience.
Features
- Complete flat surface, drill-down mounting solution for the Humminbird Helix 5; RAM® Mounts ball and socket technology allows for near-infinite adjustability
- Includes 2.5" round base with C size 1.5" rubber ball, medium length C size double socket arm, and a 1" x 2.5" rectangle base with C size 1.5" rubber ball that connects to your Humminbird Helix 5
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty
product dimensions:
Overall Height: 7.35"
socket to socket length:
4.66"
hole pattern:
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree 1.812" Diameter
Rectangular Plate: 1" x 2.5"
plate size:
Top Plate: 1.5" x 3"
Bottom Plate: 2.5" Diameter
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
1.15 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
QUESTIONS & ANSWERS
Have a Question?
-
What screws are used to attach the RAM Mount to the gimbal bracket?
Typically, the gimbal bracket included with your fishfinder will also come with mounting screws that should connect to the RAM® mounting plate. As these mounts are universal and are for many different applications, the necessary hardware needed for each application will vary. For marine applications, RAM® recommends stainless steel hardware to prevent corrosion.
-
What size screws are needed for the holes on this ball plate?
The most common screw sizes are #8, #10, M4 and M5 screws.
