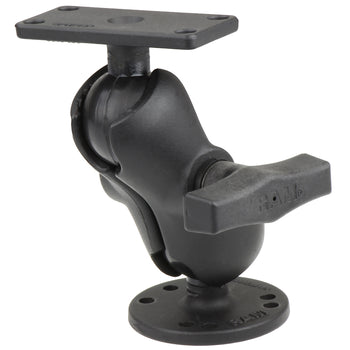

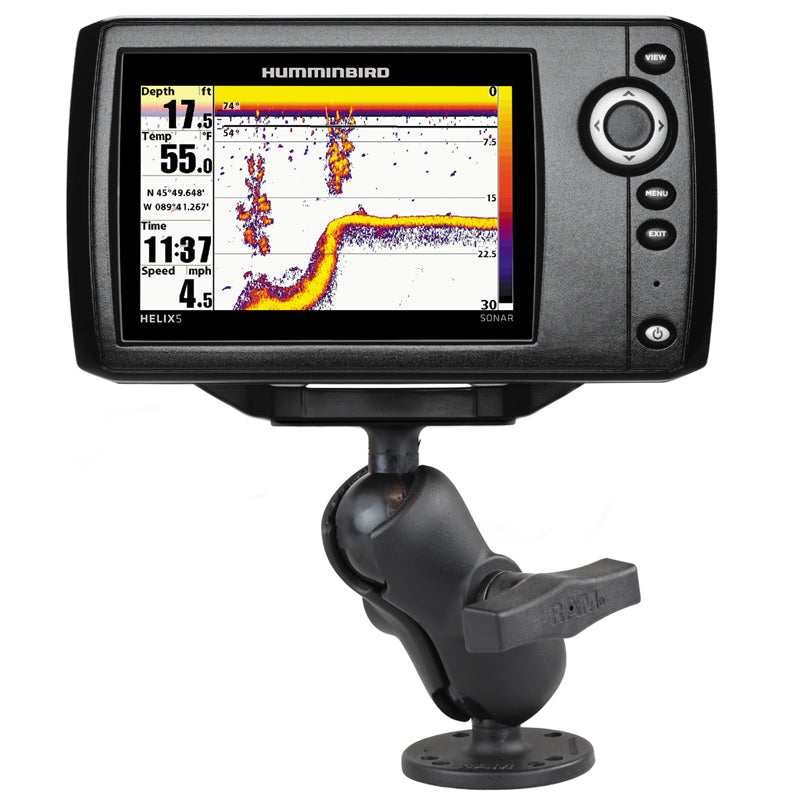

RAM® Drill-Down Double Ball Mount for Humminbird Helix 5 - Short
Part#: RAM-202-153-B-202U
UPC: 793442950063
Ball Icon C Size
Arm Icon Short Arm
$60.49

Overview

The RAM-202-153-B-202U consists of a round 2.5" diameter round base (Universal AMPs Hole Pattern), short double socket arm and 1.5" x 3" rectangular base. The rectangular base contains four holes with a center to center pattern of 1" x 2.5".

product dimensions:

Overall Height: 5.225"

socket to socket length:

2.5"

hole pattern:

Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree 1.812" Diameter
Rectangular Plate: 1" x 2.5"

plate size:

Top Plate: 1.5" x 3"
Bottom Plate: 2.5" Diameter

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.93 lb
