RAM^® Marine Electronics Ball Adapter
Part #: RAM-D-115BU UPC: 793442006968 Features D size ball adapter for 9"-12" fishfinder gimbal brackets RAM^® Mounts ball and socket technology allows for near-infinite adjustability Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments Backed by a lifetime warranty

Product Information

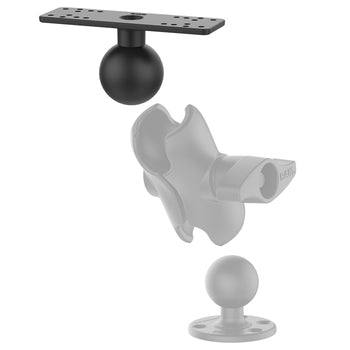

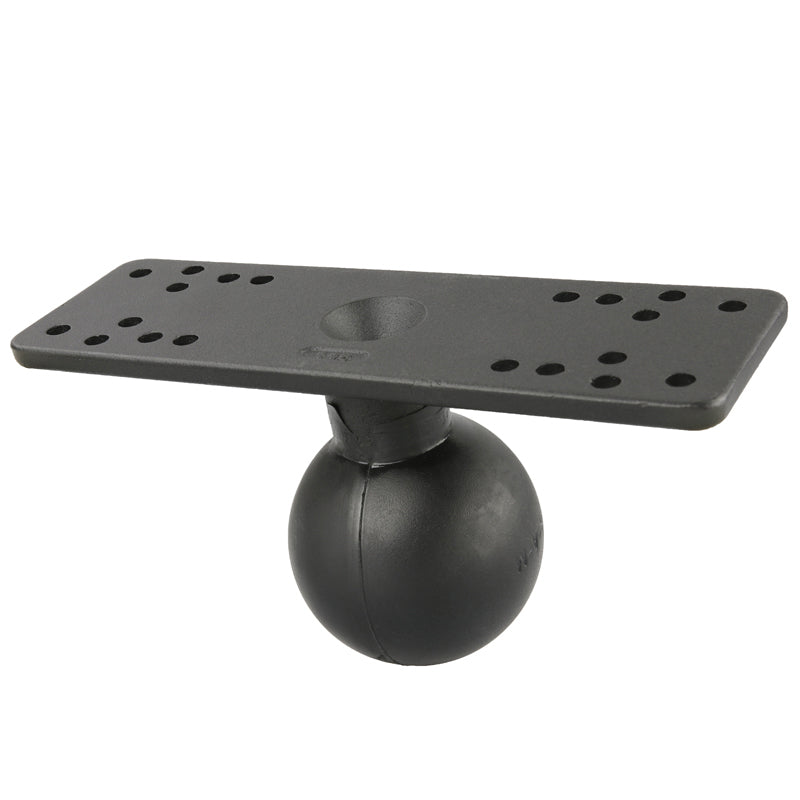

Overview	The RAM-D-115BU, universal mounting plate, consists of a 2.25" diameter rubber ball, connected at right angles to a flat 6.25" x 2" rectangular plate. The plate contains different combinations of pre-drilled holes which will match up to many electronic devices.

Specifications
hole pattern	See Drawing
plate size	6.25" x 2"
ball size	D Size (2.25")
weight capacity	Standard Use: 6 lbs Heavy-Duty Use: 5 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.66 lb
Additional Information	The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
