RAM® Tough-Mag™ Heavy Duty Magnetic Mount with Round Plate - Medium
Part #: RAM-101-MAG88U UPC: 793442025075 Features Magnetic or drill-down mounting solution; secure your device to one end and the other to your preferred surface Includes one round ball base, one Tough-Mag™ base, and one C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability RAM® Tough-Mag™ 88mm base magnetizes to any ferrous metal surface Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments Backed by a lifetime warranty

Part #: RAM-101-MAG88U UPC: 793442025075

Features

Magnetic or drill-down mounting solution; secure your device to one end and the other to your preferred surface
Includes one round ball base, one Tough-Mag™ base, and one C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
RAM® Tough-Mag™ 88mm base magnetizes to any ferrous metal surface
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM® Tough-Mag™ Heavy Duty Magnetic Mount with Round Plate - Medium

Product Information

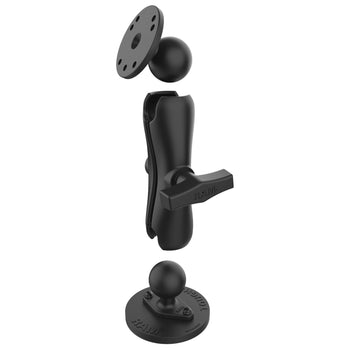

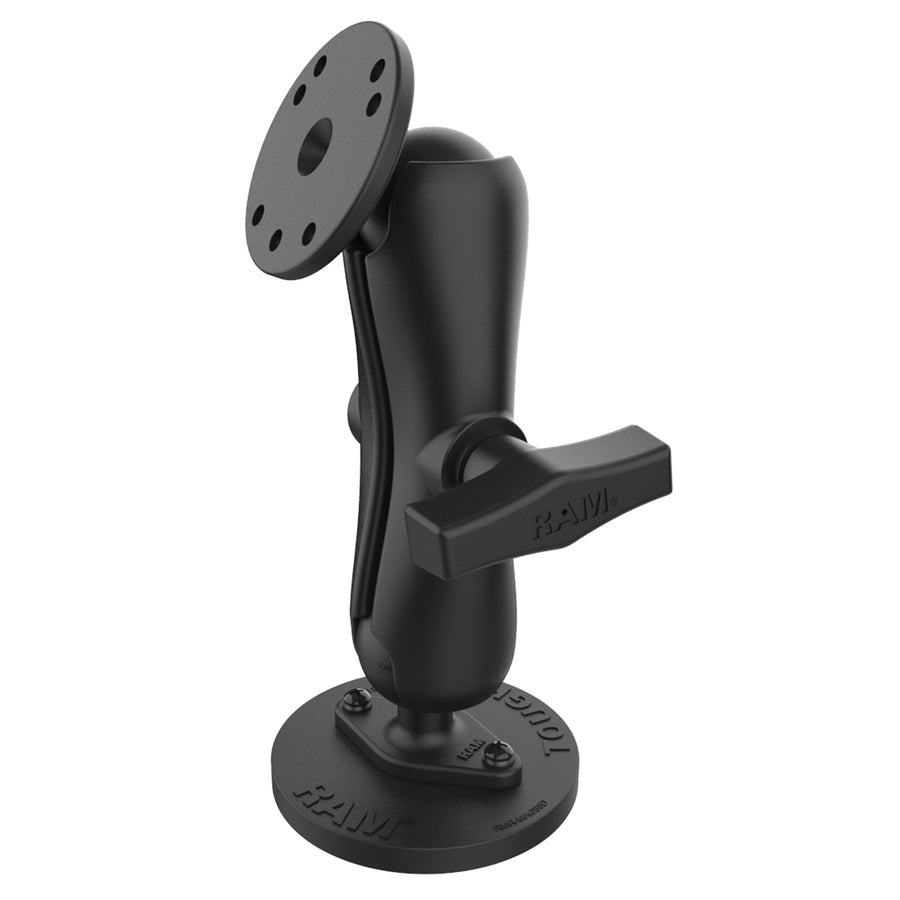

Overview	The RAM® Tough-Mag™ Heavy Duty Magnetic Mount with Round Plate - Medium (RAM-101-MAG88U) features a medium length double socket arm, one 2.5" diameter round base, and one RAM® Tough-Mag™ base. This heavy duty magnetic solution features C size components from our patented rubber ball and socket system, allowing the system to adjust at both ends of the socket arm. The rubber ball and socket technology allows for almost infinite adjustment to provide ideal viewing angles and dampens shock and vibration to extend the life of your device. The RAM® Tough-Mag™ features 10 industrial-strength N52 grade magnets that magnetize to any ferrous metal surface and rubber coating that protects the metal surface you're attaching to.

Product Information

Overview

The RAM® Tough-Mag™ Heavy Duty Magnetic Mount with Round Plate - Medium (RAM-101-MAG88U) features a medium length double socket arm, one 2.5" diameter round base, and one RAM® Tough-Mag™ base. This heavy duty magnetic solution features C size components from our patented rubber ball and socket system, allowing the system to adjust at both ends of the socket arm. The rubber ball and socket technology allows for almost infinite adjustment to provide ideal viewing angles and dampens shock and vibration to extend the life of your device. The RAM® Tough-Mag™ features 10 industrial-strength N52 grade magnets that magnetize to any ferrous metal surface and rubber coating that protects the metal surface you're attaching to.

Specifications
product dimensions	Overall Height: 7.67"
socket to socket length	4.66"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
plate size	Top Plate: 2.5" Diameter Magnetic Base: 3.46" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	1.49 lb

Questions about our products? Email us for support.

RAM® Tough-Mag™ Heavy Duty Magnetic Mount with Round Plate - Medium

Part#: RAM-101-MAG88U

UPC: 793442025075

C Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$117.99

Options

C Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

Features

Magnetic or drill-down mounting solution; secure your device to one end and the other to your preferred surface
Includes one round ball base, one Tough-Mag™ base, and one C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
RAM® Tough-Mag™ 88mm base magnetizes to any ferrous metal surface
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

product dimensions:

Overall Height: 7.67"

socket to socket length:

4.66"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

plate size:

Top Plate: 2.5" Diameter
Magnetic Base: 3.46" Diameter

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

1.49 lb
