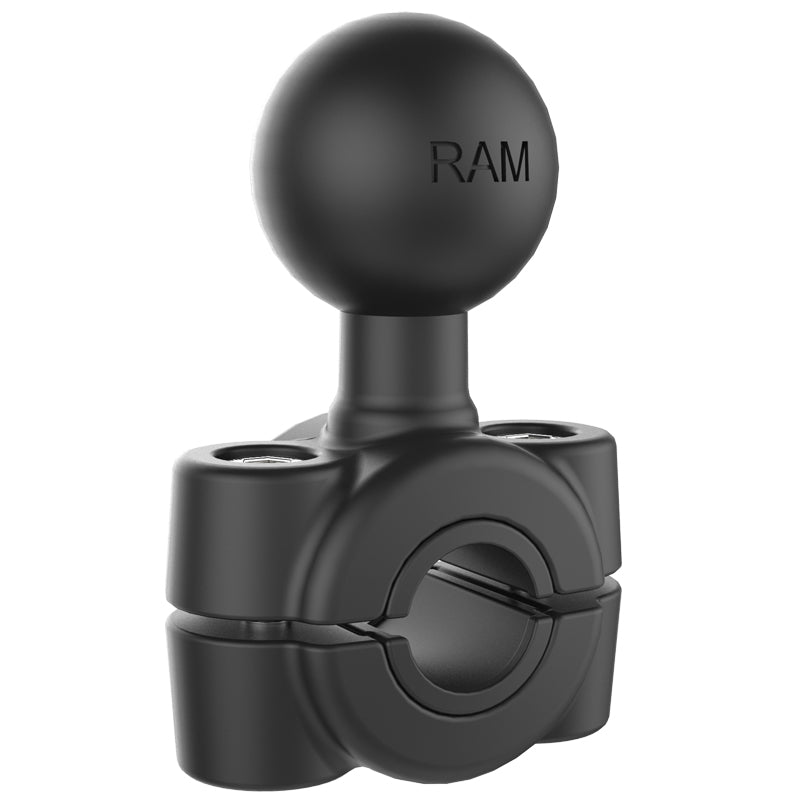

RAM^® Torque^™ Small Rail Base
Part #: RAM-B-408-37-62U UPC: 793442950148 Features Ideal mounting base for scooter mirror rails, vehicle headrests, and much more Included B size 1" RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Torque^™ Small Rail Base

Part #: RAM-B-408-37-62U UPC: 793442950148

Features

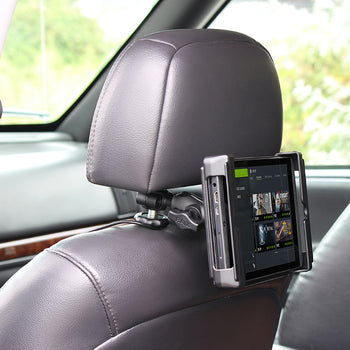

Ideal mounting base for scooter mirror rails, vehicle headrests, and much more
Included B size 1" RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> Torque<sup>™</sup> Small Rail Base

Product Information

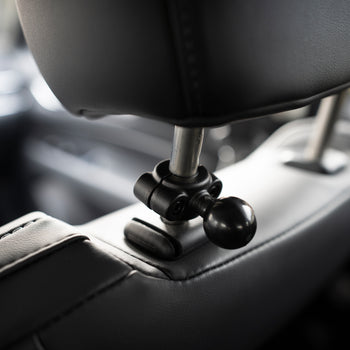

Overview	The RAM^® Torque^™ small rail base features a B size 1” rubber ball and accommodates rails from 3/8” to 5/8” in diameter. Sizing inserts are included to provide a snug fit and protection of the rail. The mount utilizes nylon-insert lock nuts to prevent loosening in high vibration environments. The RAM-B-408-37-62U allows for mounting to scooter mirror rails as well as vehicle headrests and other round rails within the stated dimensions.

Product Information

Overview

The RAM^® Torque^™ small rail base features a B size 1” rubber ball and accommodates rails from 3/8” to 5/8” in diameter. Sizing inserts are included to provide a snug fit and protection of the rail. The mount utilizes nylon-insert lock nuts to prevent loosening in high vibration environments. The RAM-B-408-37-62U allows for mounting to scooter mirror rails as well as vehicle headrests and other round rails within the stated dimensions.

Specifications

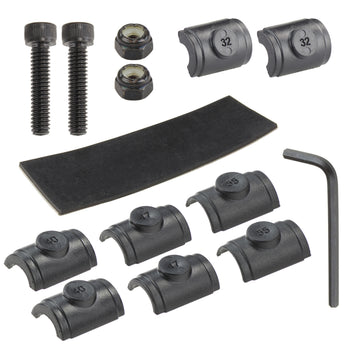

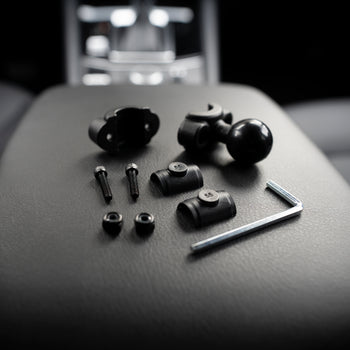

hardware included	(2) #8-32 x .75" Socket Head Cap Screws (2) #8-32 Nylock Nuts (2) .32" Composite Bushings (2) .4" Composite Bushings (2) .47" Composite Bushings (2) .55" Composite Bushings (1) 57.2mm Rubber Strip (1) 9/64" Hex Key Wrench
clamp range	.375" - .625" diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.21 lb

Questions about our products? Email us for support.

RAM^® Torque^™ Small Rail Base

Part#: RAM-B-408-37-62U

UPC: 793442950148

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$27.49

Options

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

Features

Ideal mounting base for scooter mirror rails, vehicle headrests, and much more
Included B size 1" RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hardware included:

(2) #8-32 x .75" Socket Head Cap Screws
(2) #8-32 Nylock Nuts
(2) .32" Composite Bushings
(2) .4" Composite Bushings
(2) .47" Composite Bushings
(2) .55" Composite Bushings
(1) 57.2mm Rubber Strip
(1) 9/64" Hex Key Wrench

clamp range:

.375" - .625" diameter

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.21 lb

Print

Instructions

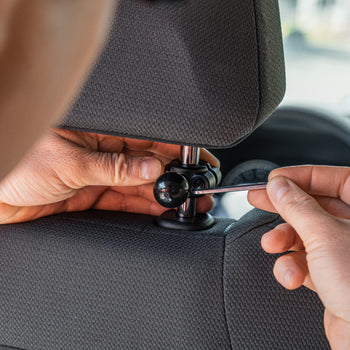

Torque Base Installation Guide

Documents

On Road Catalog

Questions & Answers

Have a Question?

Ask a Question

Is this a good choice for oddly shaped or oblong rails?

No, this base will work best on a perfectly cylindrical rail.
Is this SKu available with a larger ball?

No,the small torque rail base is only available with the 1" diameter (B size) ball a a connection point.
When and where should I use the short rubber strip?

You can either wrap the rubber strip that comes with the RAM-B-408-37-62U around the bar or railing you're using as a mounting point or cut the strip in half and place it inside the small torque rail base to prevent the inserts or the powder coated metal from touching the mounting surface.
Can you put two of these together so as to have a ball on both sides of the clamp?

No, the portion of the RAM-B-408-37-62U with the ball has round openings for screw heads while the lower portion has nut pockets to secure those screws in place. It's possible to achieve that with different hardware but that hardware is not available through RAM.
What do the numbers on the inserts refer to? 32, 40, 47, 55?

These inserts refer to the diameter sizes that are best suited for the size rail that the base will be mounted against. "32" is best for .32" diameter, "40" is best for .4", "47" is for ".47", and "55" is for .55" diameters.
