RAM® Tough-Claw™ Small Clamp Mount with AMPS Plate

Part#: RAP-B-400-347U
UPC: 793442951343

Kit Components

Previous Slide Next Slide
$58.99

Overview

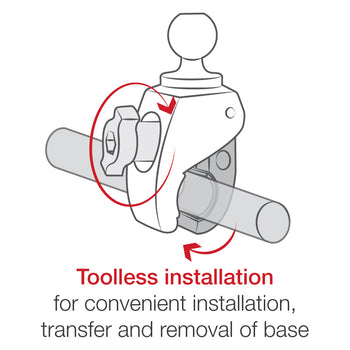

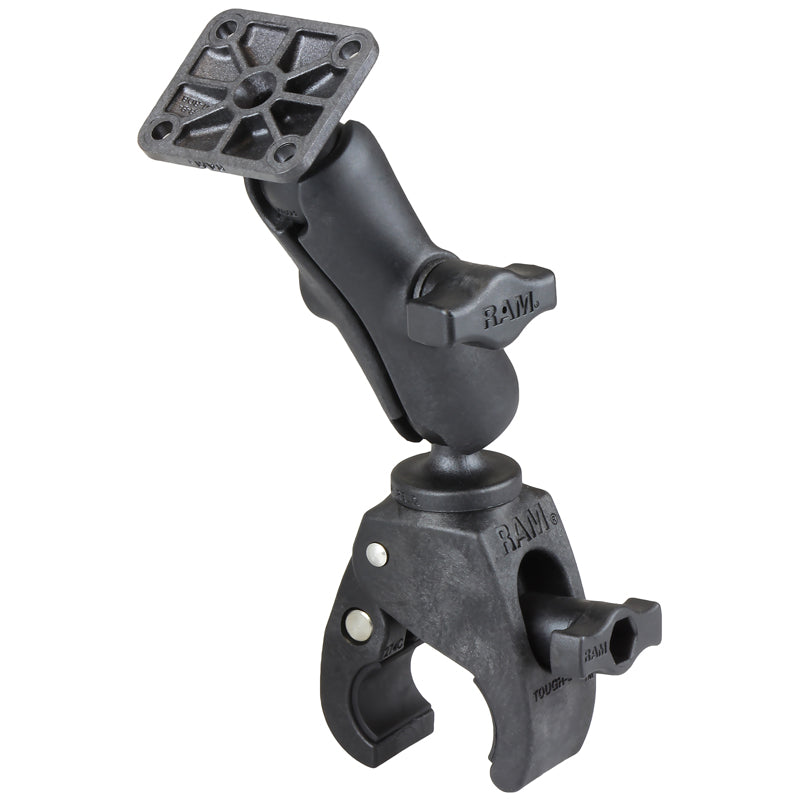

The RAP-B-400-347U consists of the small Tough-Claw™ base, double socket arm and rectangular adapter plate. The RAM Tough-Claw™ is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw™ can be clamped on rails from 0.625" - 1.14" outer diameter. The adapter plate contains the industry standard universal AMPS hole pattern, which will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

clamp range:

.625" - 1.14" diameter

socket to socket length:

3"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

High strength composite

packaging type:

Poly Bag

Weight:

0.56 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

QUESTIONS & ANSWERS

Have a Question?

Ask a Question

  • What is the height from bottom of base to bottom of jaw.

    The double socket arm in this kit is 3 inches and the overall height from the bottom of the claw to the mounting plate on top is 8 inches.
RAM® Tough-Claw™ Small Clamp Mount with AMPS Plate
$58.99

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size — this product 1" ball
  • C Size 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B — this product1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
