Overview

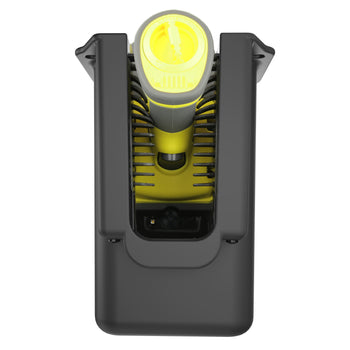

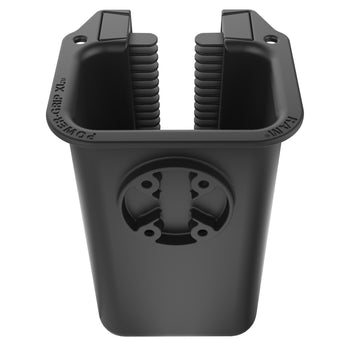

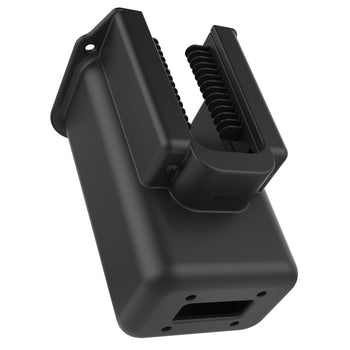

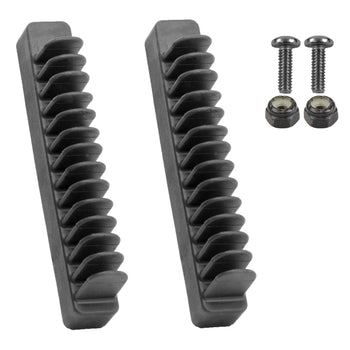

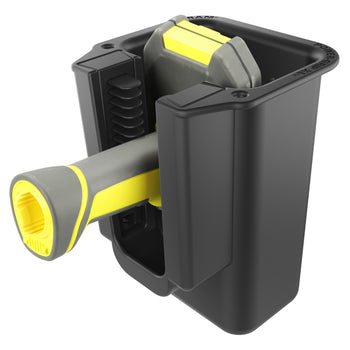

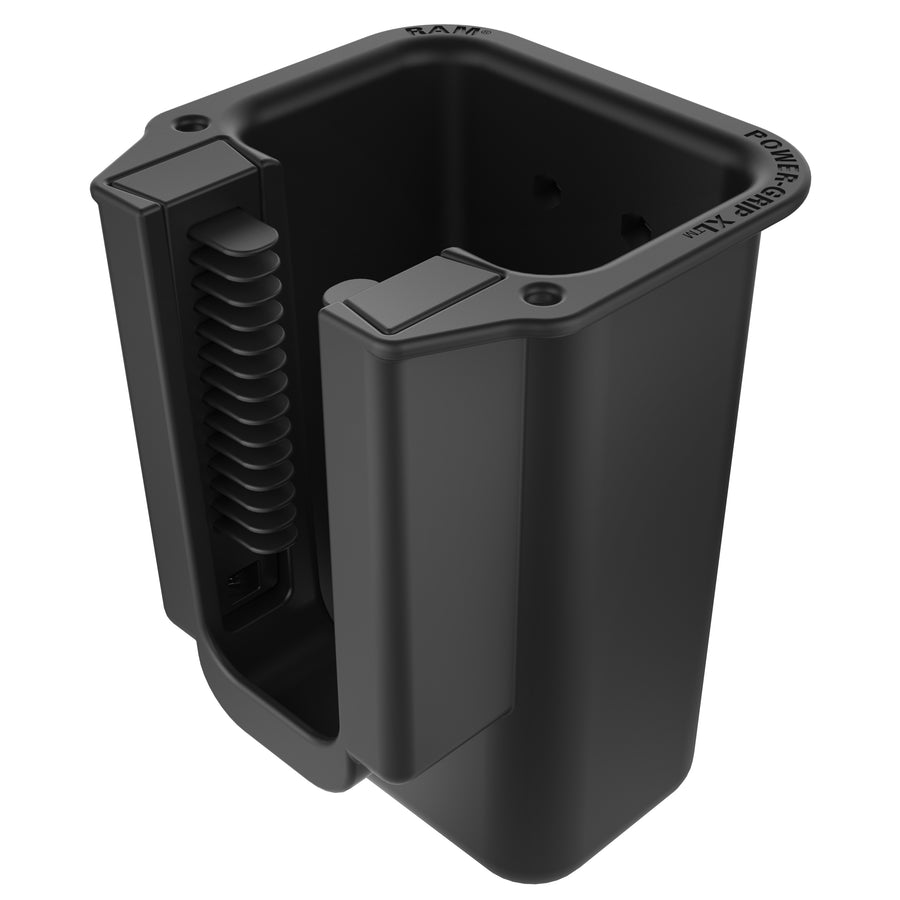

The RAM® Power-Grip™ XL universal scanner gun holder is designed for use with several large form factor scanner guns and is RAM® Mounts Compatible™ with a full range of ball and socket forklift mounting systems. Using high-strength composite materials, the RAM® Power-Grip™ XL secures scanner guns even when not in use. When required, easily remove the scanner gun to quickly scan the desired item. This holder features two attachment points. First, the hole pattern on the back of the holder allows for the connection of the RAM-202U or the RAM-D-254U (hardware is included for these attachments). Second, the hole pattern on the bottom of the holder allows for the connection of a 2” x 3” plate – RAM-202U-23 or RAM-D-202U-23 – or a drill-down mount (hardware is not included for these attachments). To enable use on the go, integrated holes on both sides of the holder allow for the use of a lanyard or the GDS® Shoulder Strap. Elastomeric fins grip the handle of the scanner gun to ensure a secure fit, and can be easily replaced if required.
hardware included:
Assembly Hardware
(4) #8-32 x 3/4" Machine Screws
(4) #8-32 Nylock Nuts
internal dimensions:
Width: 3.96"
Length: 2.66"
Depth: 7.43"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
Weight:
1.2 lb
