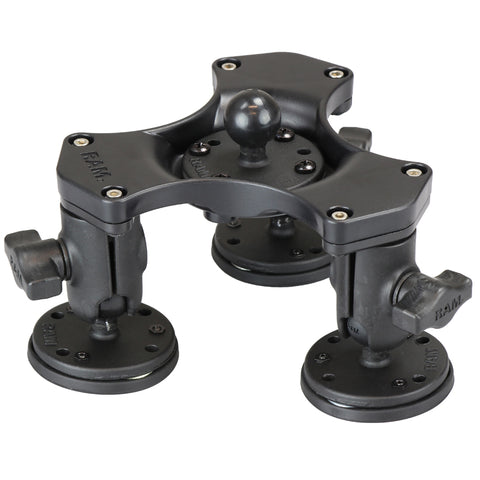

RAM® Triple Ball and Socket Magnetic Base with Ball
Part #: RAP-B-365-1-339U UPC: 793442951336 Patented

Product Information
Overview	The RAP-B-365-1-339U is made up of a 1" ball connected to a triple magnetic adapter system, with each adapter connected by its own 1" ball and socket joint. Each magnetic base contains three rare-earth magnets (nine total) which lock up securely against any steel or ferrous surface. The soft composite coating on the magnetic adapters prevent scratching or scuffing of the surface you are attaching to.

Product Information

Overview

The RAP-B-365-1-339U is made up of a 1" ball connected to a triple magnetic adapter system, with each adapter connected by its own 1" ball and socket joint. Each magnetic base contains three rare-earth magnets (nine total) which lock up securely against any steel or ferrous surface. The soft composite coating on the magnetic adapters prevent scratching or scuffing of the surface you are attaching to.

Specifications
hardware included	Assembly Hardware
suction size	(3) 3.3" Diameter Bases, Total Width 7.95"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	1.75 lb

RAM® Triple Ball and Socket Magnetic Base with Ball

Questions about our products? Email us for support.

Patented

RAM® Triple Ball and Socket Magnetic Base with Ball

Part#: RAP-B-365-1-339U

UPC: 793442951336

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
