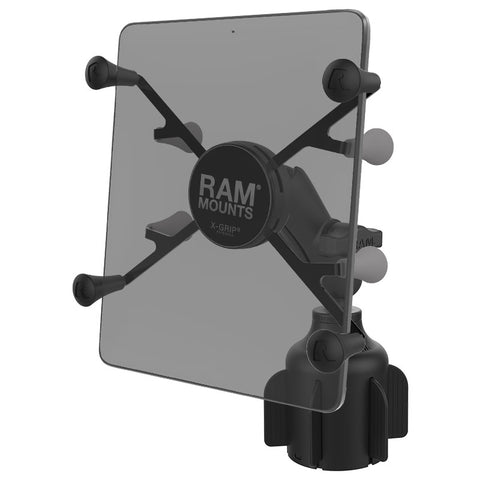

RAM® X-Grip® for 7"-8" Tablets with RAM® Stubby™ Cup Holder Base
Part #: RAP-B-299-4-UN8U UPC: 793442952975 Patented

Product Information

Overview

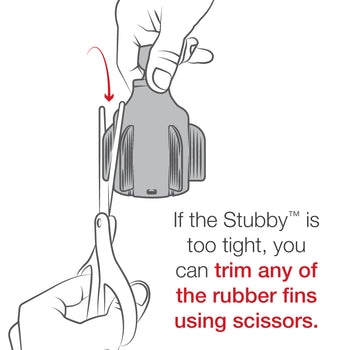

The RAP-B-299-4-UN8U consists of a spring loaded cradle with grip knobs on the back for a quick release function of your tablet. Connecting to the X-Grip is the RAM Stubby™ cup holder mount. The durable composite shell construction and flexible support fins can be trimmed to size make this cup holder base a portable and versatile solution. The RAM ball and socket system allows for articulation at both ends of the double socket arm creating almost infinite adjustment and perfect viewing angles. Compatible with any vehicle cup holder with an inside diameter range of 2.57" to 3.5". The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Specifications
hardware included	(1) Optional Tether (1) Glue Tube for Rubber Caps
product dimensions	Overall Height: 9.15"
holder dimensions	Width Range: 2.5" - 5.75" Depth Range: .875" max

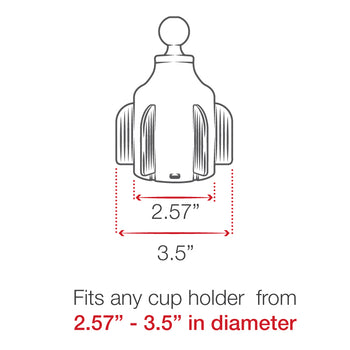

wedge dimensions	Fits cup holders between 2.57" - 3.5" inside diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Poly Bag
Weight	1.62 lb

RAM® X-Grip® for 7"-8" Tablets with RAM® Stubby™ Cup Holder Base

Patented

RAM® X-Grip® for 7"-8" Tablets with RAM® Stubby™ Cup Holder Base

Name: RAM® X-Grip® for 7"-8" Tablets with RAM® Stubby™ Cup Holder Base
Brand: RAM Mounts
SKU: RAP-B-299-4-UN8U
Price: 99.49 USD
Availability: InStock

Part#: RAP-B-299-4-UN8U

UPC: 793442952975

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
