Patented

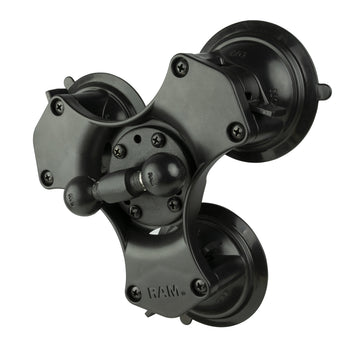

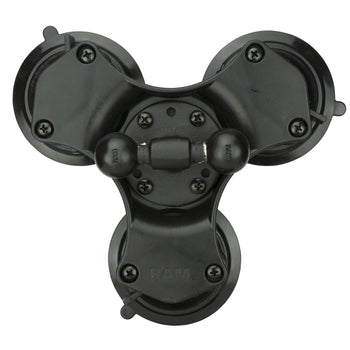

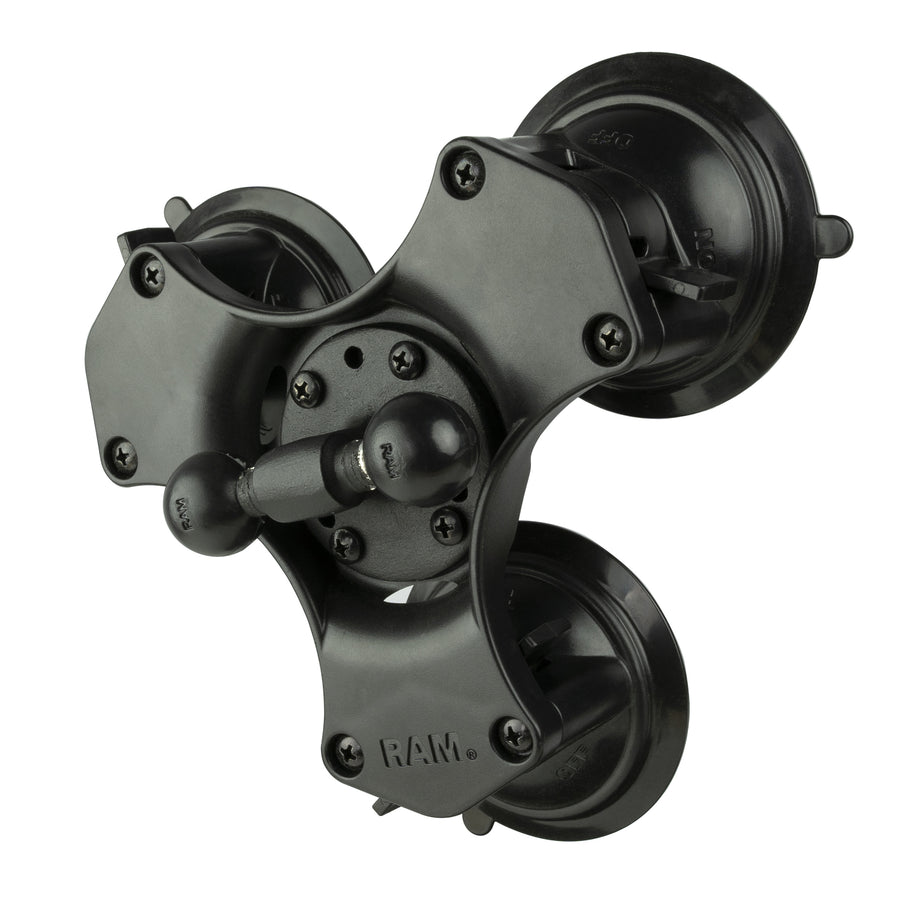

RAM® Twist-Lock™ Triple Suction Cup Double Ball Base

Part#: RAP-B-217-365-224-1U
UPC: 793442913624

Compatibility

Kit Components

Previous Slide Next Slide
$98.99

Overview

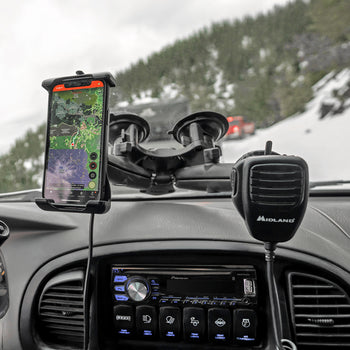

The RAM® Twist-Lock™ Triple Suction Cup with double ball adapter consists of a 2.5" round ball base with a double 1" diameter B size RAM® ball adapter, and a triple suction cup base designed for the most rugged environments. With three 3.3" diameter suction cup bases at each end, this suction cup base can be attached to any non-porous surface, like a windshield, with confidence. Take advantage of the RAM® double ball adapter by attaching two device mounts to one base up to 4 lbs total; ideal for vehicles such as side by sides, overland vehicles, golf carts and more. Customize your device mount with various B size socket arm lengths to achieve your ideal configuration on the road, or off-road.

Features

  • RAM® Twist-Lock™ triple suction cup base is ideal for windshields and other non-porous surfaces
  • Includes round base with double 1" diameter B size RAM® ball adapter that allows for mounting two small devices off one base; ball and socket technology allows for near-infinite adjustability
  • Supports device configurations up to 4 lbs; ideal for mounting a phone, GoPro, GPS/satellite tracker, handheld radio and more
  • Backed by a lifetime warranty*

hardware included:

Assembly Hardware

suction size:

(3) 3.3" Diameter Bases, Total Width 7.95"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs (per ball)
Heavy-Duty Use: 1 lb (per ball)

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

0.96 lb

Additional Information:

*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
RAM® Twist-Lock™ Triple Suction Cup Double Ball Base
$98.99

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size — this product 1" ball
  • C Size 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B — this product1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
