RAM^® Twist-Lock^™ Triple Suction Cup Base with AMPS Hole Pattern
Part #: RAP-365-224-1BU UPC: 793442922855 Patented

Product Information

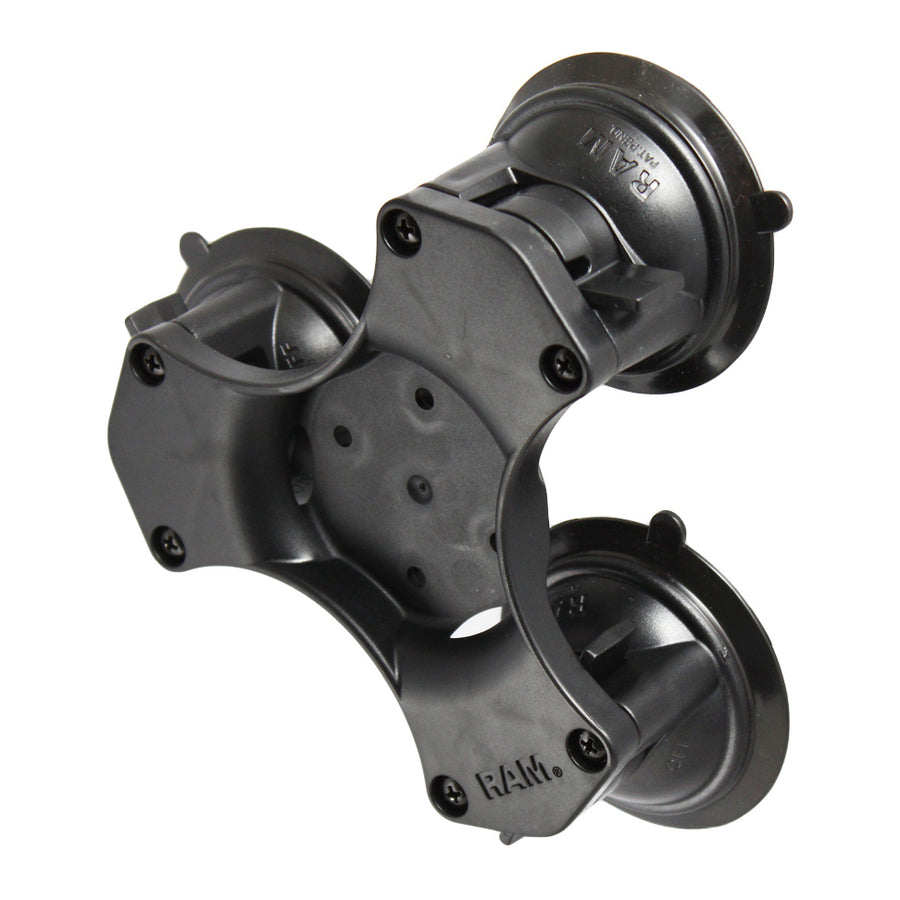

Overview	The RAP-365-224-1BU consists of a triple 3.3" twist lock suction cup base with plate that contains the universal AMPs hole pattern. The suction cup is designed to have an extra strong hold on any smooth non-porous surface, but for best result, mount the suction cup on a glass or non-porous plastic surface.

Specifications
hardware included	Assembly Hardware (4) #10-24 x 5/8" Machine Screws (4) #10-24 Nylock Nuts
suction size	(3) 3.3" Diameter Bases, Total Width 7.95"
hole pattern	4-Hole AMPS: 1.181" x 1.496"
materials	High strength composite
packaging type	Poly Bag
Weight	0.72 lb
Additional Information	*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM^® warranty policy here.

RAM<sup>®</sup> Twist-Lock<sup>™</sup> Triple Suction Cup Base with AMPS Hole Pattern

Questions about our products? Email us for support.

Patented

RAM^® Twist-Lock^™ Triple Suction Cup Base with AMPS Hole Pattern

Part#: RAP-365-224-1BU

UPC: 793442922855

$47.99

Options

Overview

The RAP-365-224-1BU consists of a triple 3.3" twist lock suction cup base with plate that contains the universal AMPs hole pattern. The suction cup is designed to have an extra strong hold on any smooth non-porous surface, but for best result, mount the suction cup on a glass or non-porous plastic surface.

hardware included:

Assembly Hardware
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts

suction size:

(3) 3.3" Diameter Bases, Total Width 7.95"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

materials:

High strength composite

packaging type:

Poly Bag

Weight:

0.72 lb

Additional Information:

*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM^® warranty policy here.
