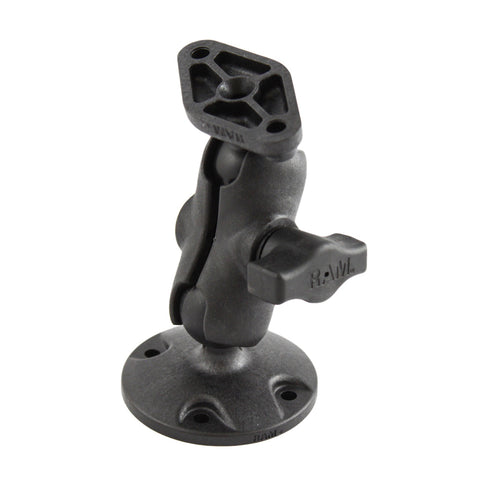

RAM^® Composite Drill-Down Mount with Diamond Plate - Short
Part #: RAP-B-138-AU UPC: 793442907609

Product Information
Overview	Simply choose your preferred mounting location and the possibilities become endless with the RAP-B-138-AU. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. High quality materials insure your device is safe, secure, and within easy reach. RAM’s patented design also dampens shock and vibration helping to extend the life of your device. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the diamond base will connect to a large variety of third party cradles and mounts. The base has a 1.0" diameter rubber ball connected at right angles to a 2.5" diameter base.

Product Information

Overview

Simply choose your preferred mounting location and the possibilities become endless with the RAP-B-138-AU. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. High quality materials insure your device is safe, secure, and within easy reach. RAM’s patented design also dampens shock and vibration helping to extend the life of your device. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the diamond base will connect to a large variety of third party cradles and mounts. The base has a 1.0" diameter rubber ball connected at right angles to a 2.5" diameter base.

Specifications
socket to socket length	1.75"
hole pattern	2-Hole AMPS: 1.912" 4-Hole AMPS: 1.181" x 1.496"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Poly Bag
Weight	0.29 lb

RAM<sup>®</sup> Composite Drill-Down Mount with Diamond Plate - Short

Questions about our products? Email us for support.

RAM^® Composite Drill-Down Mount with Diamond Plate - Short

Part#: RAP-B-138-AU

UPC: 793442907609

B Size

Short Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
