RAM® Finger-Grip™ Universal Holder with Composite Yoke Clamp Base
Part #: RAP-B-121-UN4U UPC: 793442912825 Patented

Product Information

Overview

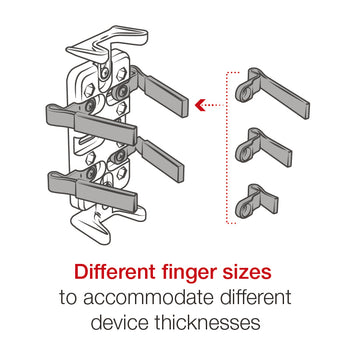

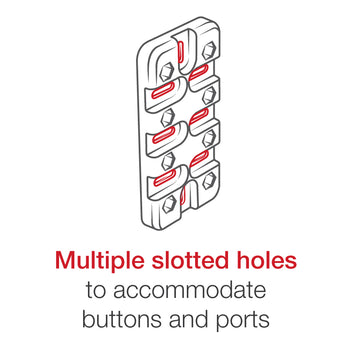

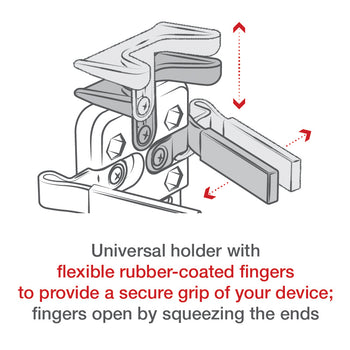

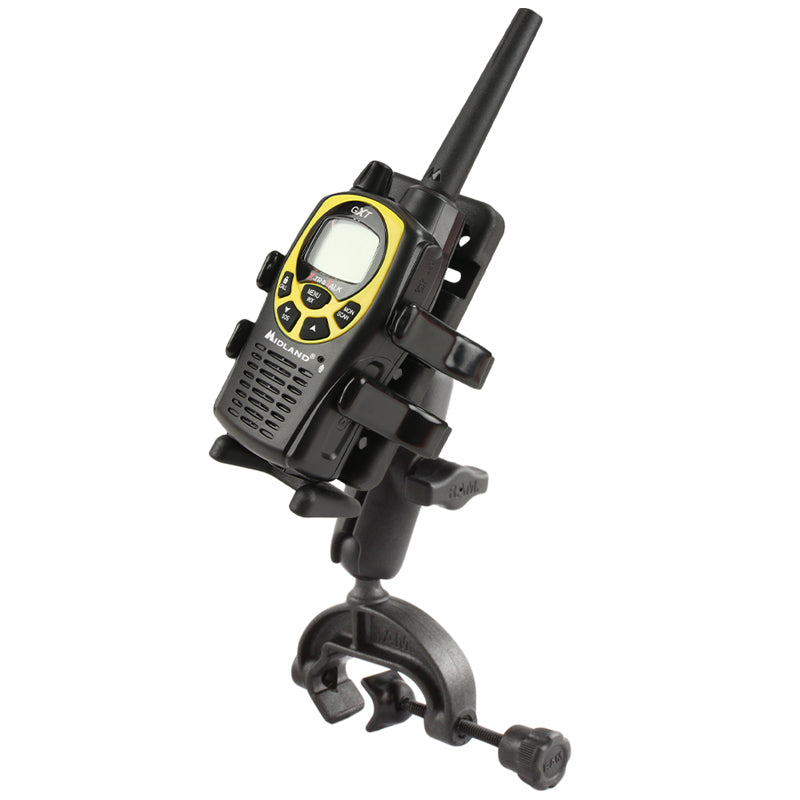

RAM Composite Clamp Mount with Universal Finger Grip™ cradle. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. High quality composite materials insure your device is safe, secure, and within easy reach. The clamp base fits a rail or edge lip from 0.625" to a maximum of 1.25". The mounting base can also accept a second ball giving you the ultimate double ball base. Extra ball not included with purchase of this mount. The RAM Composite Universal Finger Grip™ cradle is designed to hold a large amount of cell phones and electronic devices. The holder comes with (3 sets) of four flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing the ends to open the small finger arms. The bottom of the holder includes a back plate that adds support to the device being held by the mount.

Specifications

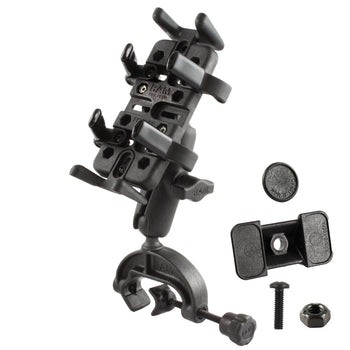

hardware included	Assembly Hardware Flat Clamp Hardware Adapter
holder dimensions	Height Range: 7.25" max (using optional supports) Width Range: 1.25" - 3.5" Max Depth: 1.5"
clamp range	.625" - 1.25"
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Poly Bag
Weight	0.96 lb

RAM® Finger-Grip™ Universal Holder with Composite Yoke Clamp Base

Patented

RAM® Finger-Grip™ Universal Holder with Composite Yoke Clamp Base

Name: RAM® Finger-Grip™ Universal Holder with Composite Yoke Clamp Base
Brand: RAM Mounts
SKU: RAP-B-121-UN4U
Price: 82.99 USD
Availability: InStock

Part#: RAP-B-121-UN4U

UPC: 793442912825

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
