Overview

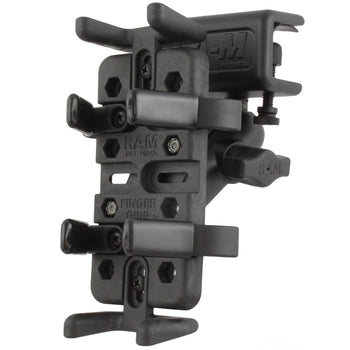

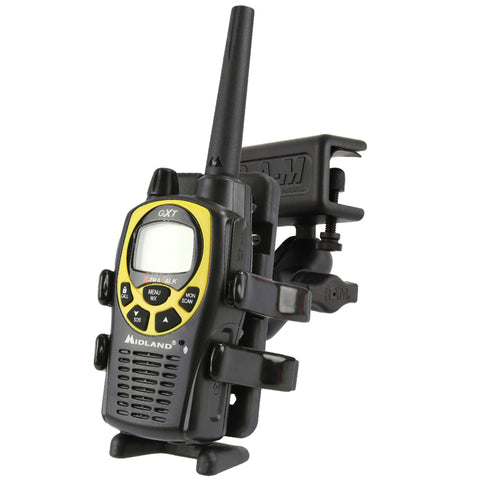

The RAM-B-177-UN4 consists of a glare shield clamp base, double socket arm and universal Finger Grip™ cradle. Simply locate the clamp on any clamping surface up to 5/8" thick and gently snug the nylon thumb screws. The double ball & socket system will provide perfect viewing angles to get the most from your electronic device. The RAM glare shield clamp with double ball & socket system is far and away the most discrete and clean way to mount most any compact electronic device to the glare shield of your aircraft.
hardware included:
Assembly Hardware
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad
holder dimensions:
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"
clamp range:
.625" max
socket to socket length:
1.75"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Retail Bag
Weight:
1.12 lb
