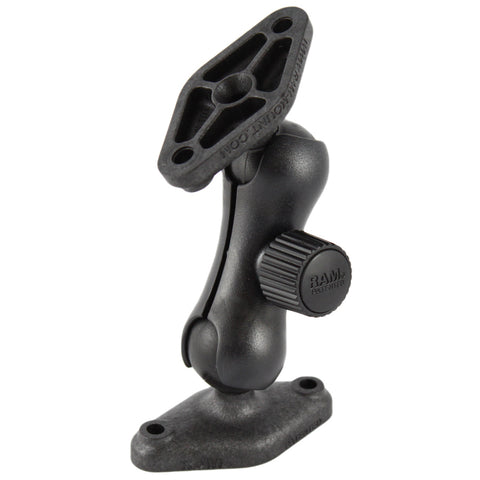

RAM® Low-Profile Composite Double Ball Mount with Two Diamond Plates

Part#: RAP-B-102-2U
UPC: 793442926464

Kit Components
$20.99

Overview

The RAP-B-102-2U consists of a short composite double socket arm and two diamond bases. The diamond bases measure 2.43" x 1.31" diamond base and contain two holes 1.912" from center to center, positioned at both ends of the diamond base. The hole pattern found on the diamond bases will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.

product dimensions:

Overall Height: 4.38"

socket to socket length:

2.1"

hole pattern:

2-Hole AMPS: 1.912"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

High strength composite

packaging type:

Poly Bag

Weight:

0.19 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

QUESTIONS & ANSWERS

Have a Question?

Ask a Question

  • Do you sell the low-profile composite double ball mount separately?

    Yes, the short composite double socket arm is available separately, which is RAM-B-201U-A and has a slightly different tightening knob, but is the same length arm.
RAM® Low-Profile Composite Double Ball Mount with Two Diamond Plates
$20.99

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size — this product 1" ball
  • C Size 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B — this product1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
