RAM® Composite Double Ball Mount for Lowrance Elite-4 & Mark-4 Series | |
---|---|
Part #:
RAP-B-101U-LO11
UPC:
793442940309
Features
|
![]() |
Product Information | |
---|---|

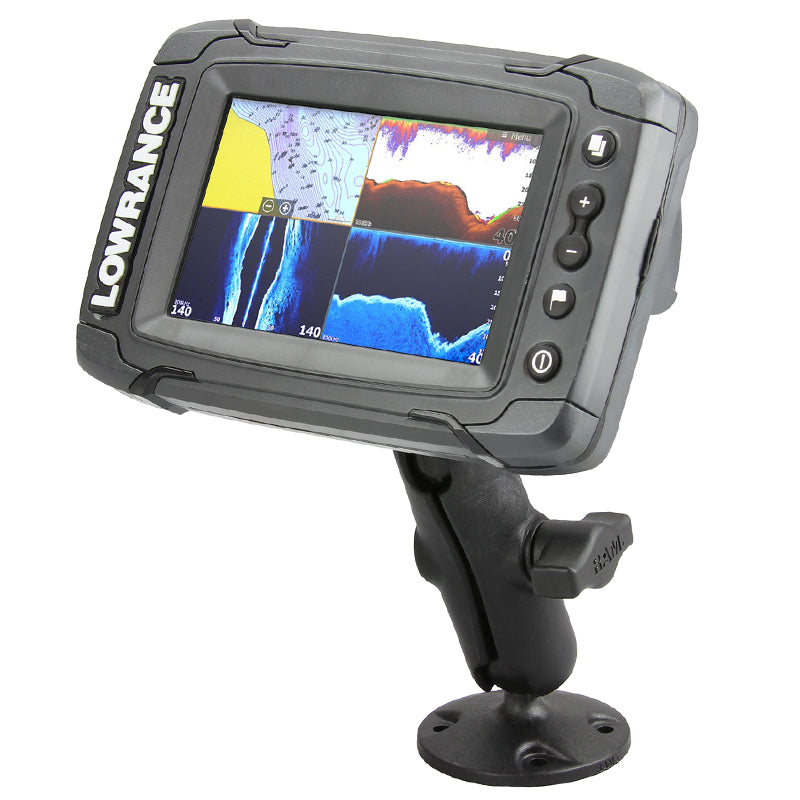

Overview | The RAP-B-101U-LO11 consists of a composite 2.5" diameter round base with the universal AMPS hole pattern, composite B size medium length double socket arm, and adapter base that inserts directly to the back of Lowrance Elite-4, Mark-4, and Hook 4 fishfinders. The adapter includes a quick release mechanism, allowing you to remove or transfer your fishfinder in seconds. Each 1" rubber ball connects to the composite double socket arm, allowing for near-infinite adjustability and the ideal viewing angle. |
Specifications | |
---|---|
socket to socket length | 3" |
hole pattern | 4-Hole AMPS: 1.181" x 1.496" |
plate size | 2.5" Diameter |
ball size | B Size (1") |
weight capacity | Standard Use: 2 lbs Heavy-Duty Use: 1 lb |
materials | Marine-grade aluminum High strength composite |
packaging type | Poly Bag |
Weight | 0.39 lb |
Additional Information | This product is not compatible with the standard Lowrance Elite-7. |


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 2.42" |
Overall Length 3.56" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 2.5" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Lowrance
Elite 3x
Elite 3x DSI
Elite-4
Elite-4 DSI
Elite-4 Gold
Elite-4x
Elite-4x DSI
Elite-4m
Mark-4
Kit Components


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 2.42" |
Overall Length 3.56" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 2.5" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Lowrance
Elite 3x
Elite 3x DSI
Elite-4
Elite-4 DSI
Elite-4 Gold
Elite-4x
Elite-4x DSI
Elite-4m
Mark-4
Kit Components

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAP-B-101U-LO11!
We'll email you once the item is available.
Overview
The RAP-B-101U-LO11 consists of a composite 2.5" diameter round base with the universal AMPS hole pattern, composite B size medium length double socket arm, and adapter base that inserts directly to the back of Lowrance Elite-4, Mark-4, and Hook 4 fishfinders. The adapter includes a quick release mechanism, allowing you to remove or transfer your fishfinder in seconds. Each 1" rubber ball connects to the composite double socket arm, allowing for near-infinite adjustability and the ideal viewing angle.
Features
- Complete flat surface, drill-down mounting solution for the Lowrance Elite series with an overall height of 5"
- Includes quick release B size ball adapter for Lowrance marine electronics, medium length B size double socket arm, and round plate with 1" B size ball; RAM® Mounts ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
socket to socket length:
3"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
plate size:
2.5" Diameter
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
0.39 lb
Additional Information:
This product is not compatible with the standard Lowrance Elite-7.
