RAM® Phone Mount for Wheelchair Armrests with Quick Release & Swivel

Part #: RAP-AAPR-WCT-419-UN7U UPC: 793442015168 Patented

Features

Universal fitment for all wheelchairs with tracks on seat and/or armrest, including Invacare Armrests

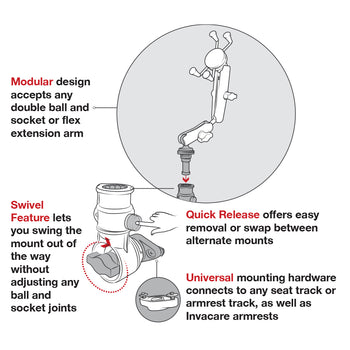

Easy swivel and quick release capabilities without changing ball and socket positioning
Compact design keeps mount within armrest width

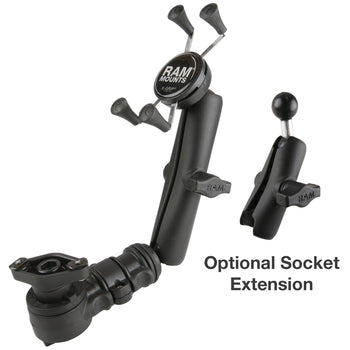

Supports most any phone with or without a case at virtually any angle with optional ball extension
Backed by a lifetime warranty

RAM® Phone Mount for Wheelchair Armrests with Quick Release & Swivel

Product Information

Overview

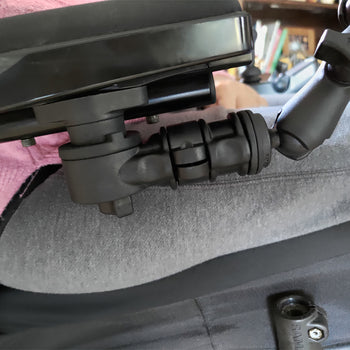

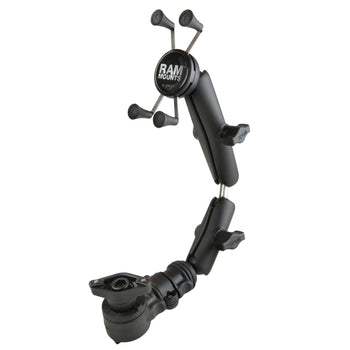

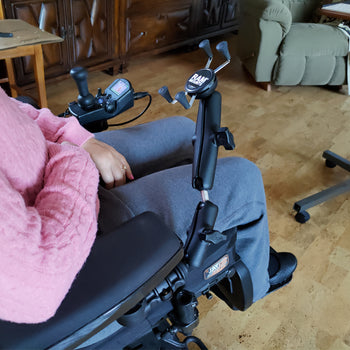

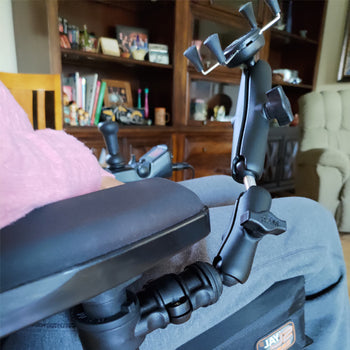

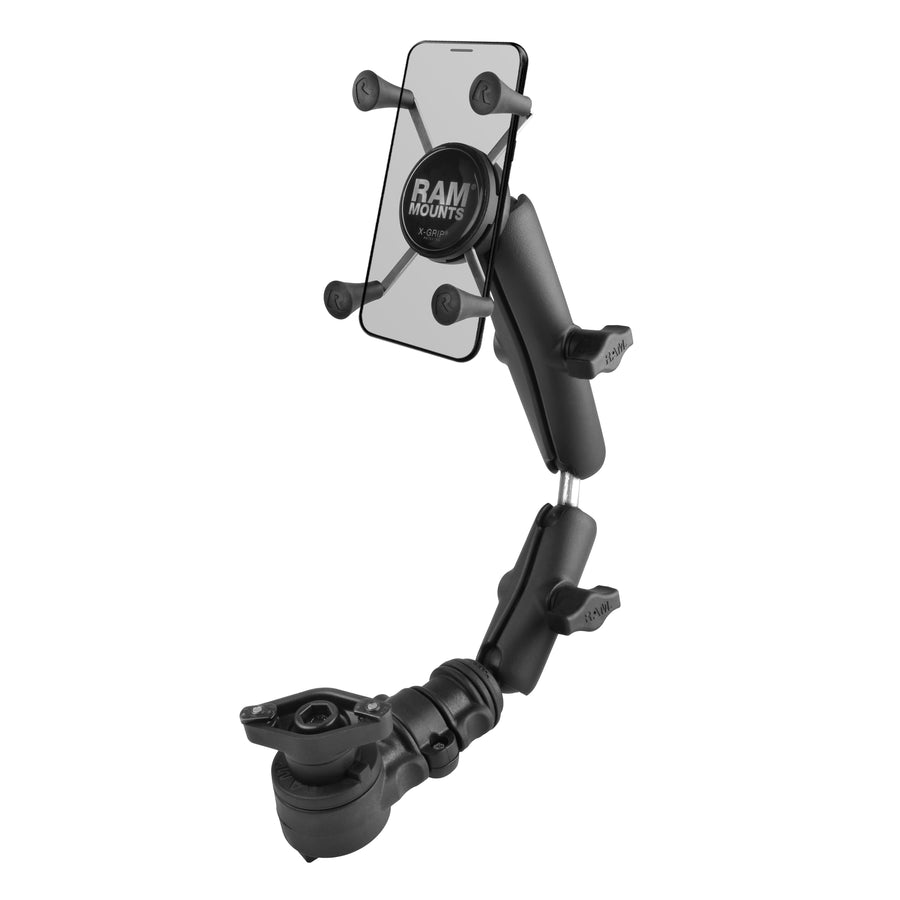

The RAM® Phone Mount with Quick Release & Swivel is the perfect solution for mounting virtually any phone to a wheelchair armrest track or Invacare armrest. The system consists of the RAM® X-Grip® phone holder, double ball & socket extension arms, ball post adapter, and the RAM® Universal Wheelchair Base. The universal base offers a quick disconnect feature of the entire mount without having to adjust any ball and socket components. The base also features an adjustable knob that lets you swivel the mount in and out of position with ease. The compact design of the RAM® Universal Wheelchair mounting system stays within the chair's armrest width, offering peace of mind when navigating through tight spaces and doorways. All RAM® mounting components are backed by a lifetime warranty.

Specifications
hardware included	Assembly Hardware (2) #10-32 T-Nuts (2) #10-32 Flat Weld Nuts (2) #10-32 x 7/16" Machine Screws (2) #8-32 x 3/4" Machine Screws (2) #8-32 Nylock Nuts (2) #8 Washers
holder dimensions	Width Range: 1.875" - 3.25" Depth Range: .875" max
t bolt dimensions	Large: .48" x .95" Small: .375" x .593"
hole pattern	2-Hole AMPS: 1.912"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	1.54 lb

Patented

RAM® Phone Mount for Wheelchair Armrests with Quick Release & Swivel

Name: RAM® Phone Mount for Wheelchair Armrests with Quick Release & Swivel
Brand: RAM Mounts
SKU: RAP-AAPR-WCT-419-UN7U
Price: 158.49 USD
Availability: InStock

Part#: RAP-AAPR-WCT-419-UN7U

UPC: 793442015168

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$158.49

Options

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

Features

Universal fitment for all wheelchairs with tracks on seat and/or armrest, including Invacare Armrests
Easy swivel and quick release capabilities without changing ball and socket positioning
Compact design keeps mount within armrest width
Supports most any phone with or without a case at virtually any angle with optional ball extension
Backed by a lifetime warranty

hardware included:

Assembly Hardware
(2) #10-32 T-Nuts
(2) #10-32 Flat Weld Nuts
(2) #10-32 x 7/16" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
(2) #8 Washers

holder dimensions:

Width Range: 1.875" - 3.25"
Depth Range: .875" max

t bolt dimensions:

Large: .48" x .95"
Small: .375" x .593"

hole pattern:

2-Hole AMPS: 1.912"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

1.54 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
