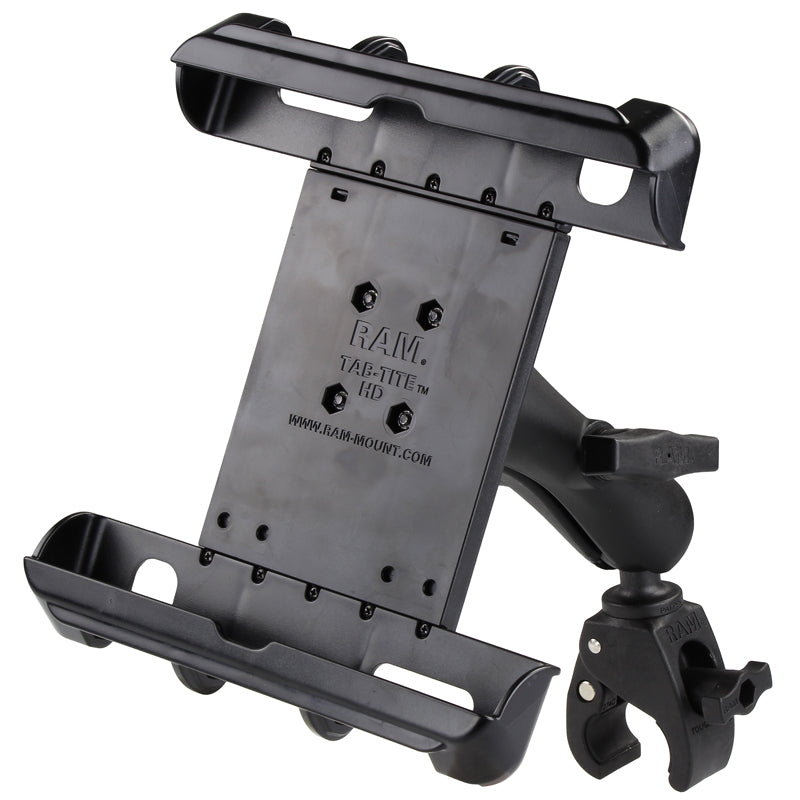

RAM^® Tab-Tite^™ Large Tablet Mount with Medium RAM^® Tough-Claw^™
Part #: RAP-404-TAB17U UPC: 793442948787 Patented & Pats. Pend. Features Medium version of the RAM^® Tough-Claw^™ is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 1" to 1.6" in outer diameter; rubber pads provide stable gripping and protection of mounting surface Spring-loaded holder secures the iPad (1st, 2nd, 3rd, and 4th Gen) with case and more; interchangeable end cups allow you to modify the holder when upgrading devices Includes round ball base and medium length C size double socket arm; ball and socket technology allows for near-infinite adjustability Backed by a lifetime warranty

RAM^® Tab-Tite^™ Large Tablet Mount with Medium RAM^® Tough-Claw^™

Part #: RAP-404-TAB17U UPC: 793442948787 Patented & Pats. Pend.

Features

Medium version of the RAM^® Tough-Claw^™ is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 1" to 1.6" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
Spring-loaded holder secures the iPad (1st, 2nd, 3rd, and 4th Gen) with case and more; interchangeable end cups allow you to modify the holder when upgrading devices
Includes round ball base and medium length C size double socket arm; ball and socket technology allows for near-infinite adjustability
Backed by a lifetime warranty

RAM<sup>®</sup> Tab-Tite<sup>™</sup> Large Tablet Mount with Medium RAM<sup>®</sup> Tough-Claw<sup>™</sup>

Product Information

Specifications
hardware included	Assembly Hardware
holder dimensions	Height Range: 9.5" - 11.75" Width Range: 6.375" - 8.25" Depth Range: .13" - 1.1"
clamp range	1" - 1.6" diameter
socket to socket length	4.66"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	2.27 lb

Questions about our products? Email us for support.

Patented & Pats. Pend.

RAM^® Tab-Tite^™ Large Tablet Mount with Medium RAM^® Tough-Claw^™

Part#: RAP-404-TAB17U

UPC: 793442948787

C Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$131.99

Options

C Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Features

Medium version of the RAM^® Tough-Claw^™ is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 1" to 1.6" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
Spring-loaded holder secures the iPad (1st, 2nd, 3rd, and 4th Gen) with case and more; interchangeable end cups allow you to modify the holder when upgrading devices
Includes round ball base and medium length C size double socket arm; ball and socket technology allows for near-infinite adjustability
Backed by a lifetime warranty

hardware included:

Assembly Hardware

holder dimensions:

Height Range: 9.5" - 11.75"
Width Range: 6.375" - 8.25"
Depth Range: .13" - 1.1"

clamp range:

1" - 1.6" diameter

socket to socket length:

4.66"

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

2.27 lb

Print

Instructions

RAM^® Tab-Tite^™ Assembly Guide

Documents

How to Find the Right Holder for Your Tablet

Questions & Answers

Have a Question?

Ask a Question

Can you use this mount with the RAM® Tough-Claw® with RAM® Flex-Rod™ 26" Extension Arm for Wheelchairs?

Yes, by including a RAM-B-202U with the RAM Tough-Claw with RAM Flex-Rod 26" Extension Arm for Wheelchairs you can incorporate the RAM-HOL-TAB17U tablet holder into that mount.
