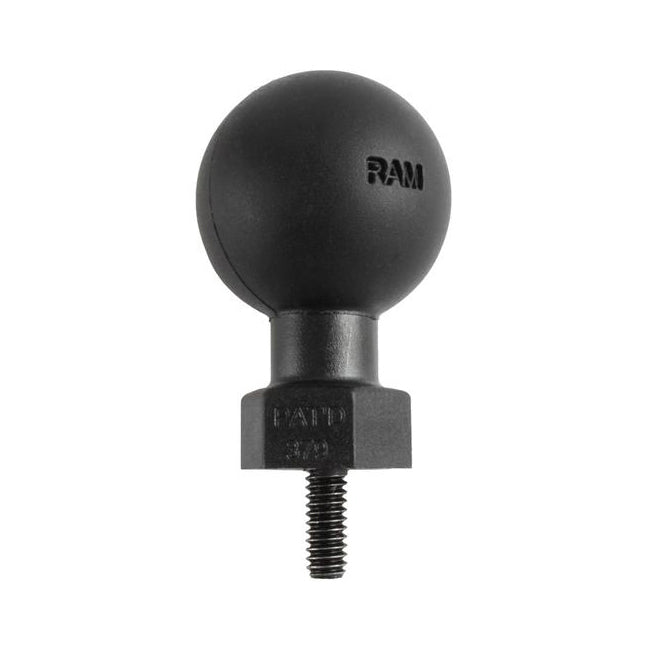

RAM® Tough-Ball™ with 1/4"-20 x .625" Threaded Stud - C Size
Part #: RAP-379U-252062 UPC: 793442938740

Product Information
Overview	Introducing the new RAM Tough-Ball™. Why call it tough? Because this latest addition to the RAM product line has steel inside and out. The seamless transition between RAM versatility and steel durability allows for a multitude of real world, and out of this world, applications. With so many of the things we use incorporating threads and fasteners, there really is no limit to the number of uses you'll find for the RAM Tough-Ball™. The RAP-379U-252062 consists of a 1.5" diameter rubber ball, connected to a 1/4"-20 X .625" male threaded post. The male thread matches most standard camera and camcorder female threads found on the bottom of the camera.

Product Information

Overview

Introducing the new RAM Tough-Ball™. Why call it tough? Because this latest addition to the RAM product line has steel inside and out. The seamless transition between RAM versatility and steel durability allows for a multitude of real world, and out of this world, applications. With so many of the things we use incorporating threads and fasteners, there really is no limit to the number of uses you'll find for the RAM Tough-Ball™. The RAP-379U-252062 consists of a 1.5" diameter rubber ball, connected to a 1/4"-20 X .625" male threaded post. The male thread matches most standard camera and camcorder female threads found on the bottom of the camera.

Specifications
thread pitch	1/4"-20 x .625"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	High strength composite Stainless steel threads
packaging type	Poly Bag
Weight	0.15 lb

Questions about our products? Email us for support.

RAM® Tough-Ball™ with 1/4"-20 x .625" Threaded Stud - C Size

Part#: RAP-379U-252062

UPC: 793442938740

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
