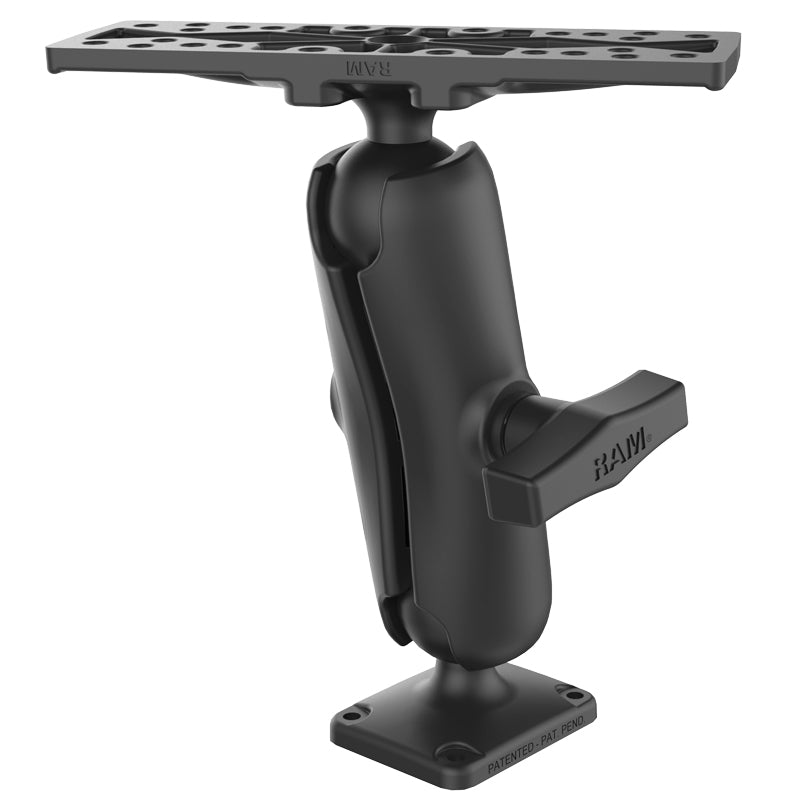

RAM® Universal Composite Marine Electronic Mount - Medium
Part #: RAP-111U UPC: 793442940118 Features Universal mounting bracket with a selection of mounting hole locations; certain applications may require additional holes to be drilled for proper fit Made of high-strength composite durability and reliability in the most demanding environments Backed by a lifetime warranty

Product Information

Overview

The RAM® Universal Composite Marine Electronic Mount (RAP-111U) is a rugged, fully adjustable mounting solution built for dependable performance on the water. Made from high-strength composite materials, this system includes a C size medium-length double socket arm, a 2" x 1.7" square drill-down base, and a 0.25" x 2" rectangular adapter plate for secure device attachment. The rectangular adapter features multiple pre-drilled hole patterns, making it compatible with a wide range of marine electronics and mounting configurations, including marine GPS units, CB and ham radios, gimbal brackets, and more.

Specifications
socket to socket length	4.66"
hole pattern	4-Hole AMPS: 1.181" x 1.496" See Drawing
plate size	Top Plate: 6.25" x 2" Bottom Plate: 2" x 2.25"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	High strength composite
packaging type	Poly Bag
Weight	0.95 lb
Additional Information	The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

RAM® Universal Composite Marine Electronic Mount - Medium

Name: RAM® Universal Composite Marine Electronic Mount - Medium
Brand: RAM Mounts
SKU: RAP-111U
Price: 51.49 USD
Availability: InStock

Part#: RAP-111U

UPC: 793442940118

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
