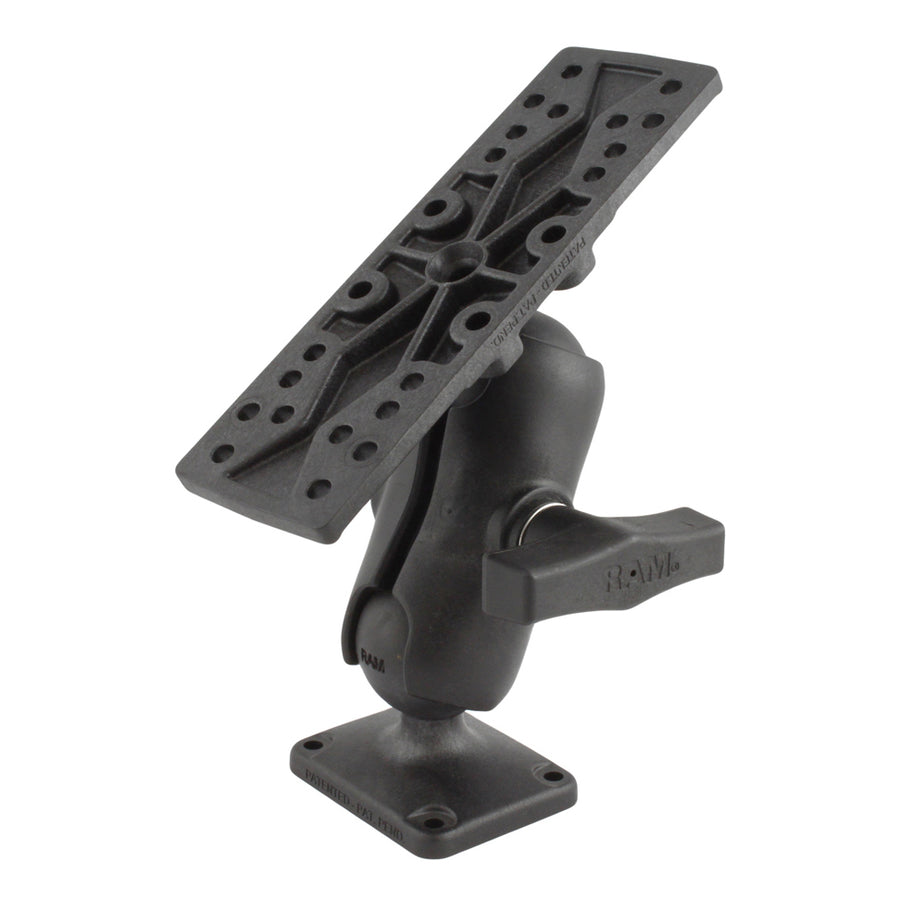

RAM® Universal Composite Marine Electronic Mount - Short | |
---|---|
Part #:
RAP-111-B
UPC:
793442907463
|
![]() |
Product Information |
---|
Specifications | |
---|---|
hole pattern | 4-Hole AMPS: 1.181" x 1.496" See Drawing |
plate size | Top Plate: 6.25" x 2" Bottom Plate: 2" x 2.25" |
ball size | C Size (1.5") |
weight capacity | Standard Use: 4 lbs Heavy-Duty Use: 3 lbs |
materials | High strength composite |
packaging type | Retail Bag |
Weight | 0.75 lb |
Additional Information | The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device. |


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Garmin
GPSMAP 722xs
GPSMAP 723
GPSMAP 723xsv
GPSMAP 742xs
GPSMAP 743
GPSMAP 743xsv
Striker Plus 5cv
Striker Vivid 5cv
Striker Plus 7cv
Striker Plus 7sv
Striker Vivid 5cv
Striker Vivid 7cv
Striker Vivid 7sv
Fishfinders and GPS Chartplotters
Lowrance
Elite FS 7
HDS Carbon 7
HDS LIVE 7
Hook Reveal 7 Series
Hook Reveal 9 Series
Fishfinders and GPS Chartplotters
Humminbird
Fishfinders and GPS Chartplotters
Raymarine
Fishfinders and GPS Chartplotters
Kit Components


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Garmin
GPSMAP 722xs
GPSMAP 723
GPSMAP 723xsv
GPSMAP 742xs
GPSMAP 743
GPSMAP 743xsv
Striker Plus 5cv
Striker Vivid 5cv
Striker Plus 7cv
Striker Plus 7sv
Striker Vivid 5cv
Striker Vivid 7cv
Striker Vivid 7sv
Fishfinders and GPS Chartplotters
Lowrance
Elite FS 7
HDS Carbon 7
HDS LIVE 7
Hook Reveal 7 Series
Hook Reveal 9 Series
Fishfinders and GPS Chartplotters
Humminbird
Fishfinders and GPS Chartplotters
Raymarine
Fishfinders and GPS Chartplotters
Kit Components

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAP-111-B!
We'll email you once the item is available.
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
See Drawing
plate size:
Top Plate: 6.25" x 2"
Bottom Plate: 2" x 2.25"
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
High strength composite
packaging type:
Retail Bag
Weight:
0.75 lb
Additional Information:
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
