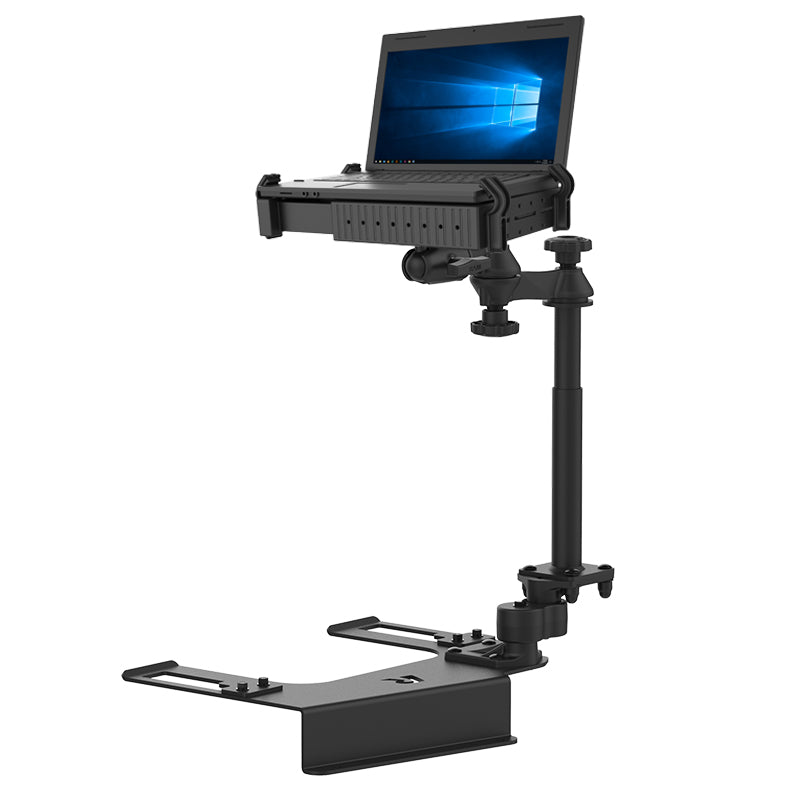

RAM^® No-Drill^™ Laptop Mount for '15-24 Chevrolet Colorado + More
Part #: RAM-VB-193-SW1 UPC: 793442944109 Patented Features RAM^® No-Drill^™ mounting base offers low-profile mounting; telescoping pole allows for height adjustments Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops Made of powder-coated steel and high-strength composite Backed by a lifetime warranty

Product Information

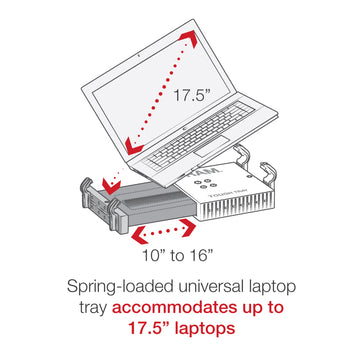

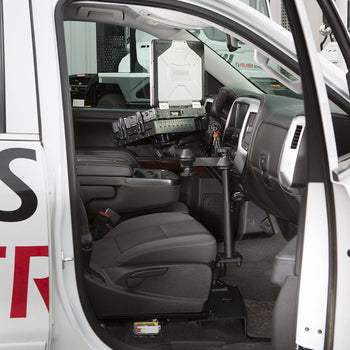

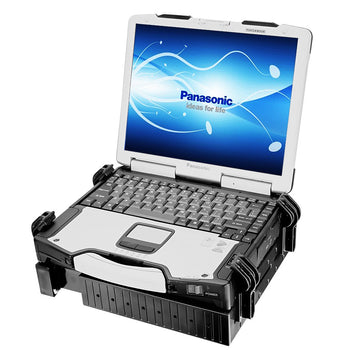

Overview	This RAM^® No-Drill^™ laptop stand system installs quickly and easily into a variety of Chevrolet and GMC vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. RAM^® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. The spring-loaded RAM^® Tough-Tray^™ laptop holder accommodates 10” to 16” wide laptops, and 17” wide screens. The tray features four adjustable retaining arms with rubber grips that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. A screen support and USB light are also available to accessorize the RAM^® Tough-Tray^™. In addition, hole patterns on the perimeter of the laptop holder are compatible with several RAM^® mounting solutions.

Product Information

Overview

This RAM^® No-Drill^™ laptop stand system installs quickly and easily into a variety of Chevrolet and GMC vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. RAM^® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. The spring-loaded RAM^® Tough-Tray^™ laptop holder accommodates 10” to 16” wide laptops, and 17” wide screens. The tray features four adjustable retaining arms with rubber grips that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. A screen support and USB light are also available to accessorize the RAM^® Tough-Tray^™. In addition, hole patterns on the perimeter of the laptop holder are compatible with several RAM^® mounting solutions.

Specifications
hardware included	Assembly Hardware (2) Leg Clamps (2) 1/4"-20 Hex Nuts (2) 1/4" Flat Washers (2) 1/4" Lock Washers
tray dimensions	Width Range: 10" - 16" Side Arm Clamp Height: .5" - 1.75" Tray Depth: 10" Tray Thickness: 2.125"
ball size	C Size (1.5")
materials	Powder coated steel Marine grade-aluminum High strength composite
packaging type	Box
Weight	22.2 lb
Additional Information	This base is best used in bucket seat vehicles with a full center console. For 2014 and 2015 trucks with a 40/20/40 bench seat, the RAM-VB-191 is also an option. To install this base, the plastic trim nearest to the passenger door may need to be cut or modified to accommodate the RAM^® No-Drill^™ base once installed. If this cannot be done in your vehicle, or you are not comfortable with this, you should not purchase this product. Note that the RAM-VB-191-SW1 will not work with the 4x4 lever on the center hump of the vehicle. The RAM-VB-191-SW1 is for 4x2 trucks only.

RAM<sup>®</sup> No-Drill<sup>™</sup> Laptop Mount for '15-24 Chevrolet Colorado + More

Questions about our products? Email us for support.

Patented

RAM^® No-Drill^™ Laptop Mount for '15-24 Chevrolet Colorado + More

Part#: RAM-VB-193-SW1

UPC: 793442944109

C Size

Size Guide

Ball Size
Arm Sizes

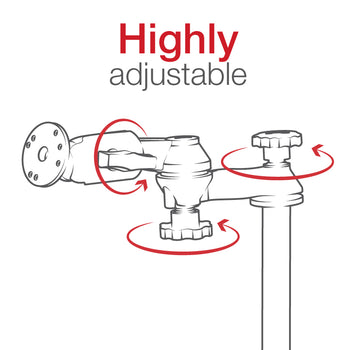

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$486.99

C Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

Features

RAM^® No-Drill^™ mounting base offers low-profile mounting; telescoping pole allows for height adjustments
Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops
Made of powder-coated steel and high-strength composite
Backed by a lifetime warranty

hardware included:

Assembly Hardware
(2) Leg Clamps
(2) 1/4"-20 Hex Nuts
(2) 1/4" Flat Washers
(2) 1/4" Lock Washers

tray dimensions:

Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

ball size:

C Size (1.5")

materials:

Powder coated steel
Marine grade-aluminum
High strength composite

packaging type:

Box

Weight:

22.2 lb

Additional Information:

This base is best used in bucket seat vehicles with a full center console. For 2014 and 2015 trucks with a 40/20/40 bench seat, the RAM-VB-191 is also an option. To install this base, the plastic trim nearest to the passenger door may need to be cut or modified to accommodate the RAM^® No-Drill^™ base once installed. If this cannot be done in your vehicle, or you are not comfortable with this, you should not purchase this product. Note that the RAM-VB-191-SW1 will not work with the 4x4 lever on the center hump of the vehicle. The RAM-VB-191-SW1 is for 4x2 trucks only.

Print

Instructions

RAM No-Drill Seat Bases Instructions 193 Series

Tough-Tray Assembly Guide

RAM^® Adjust-A-Pole^™ Instructions

Upper Tele-Pole Assembly Guide

Documents

On Road Catalog

Questions & Answers

Have a Question?

Ask a Question

Can someone sit in the passenger seat while this mount is installed?

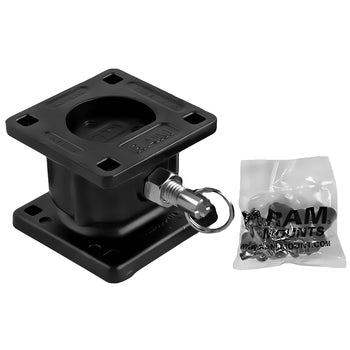

Technically someone can still sit in the passenger seat when this mount is installed but the mount does take up a considerable amount of leg room and it does make the passenger seat much less comfortable. If you want to be able to quickly remove the mount to make room for a passenger you could install our Remove-A-Pole base (RAM-VB-REM1).
Will this unit work in my 2015 Chevrolet 1500?

Your 2015 Chevy 1500 is in the compatibility list. Please be advised of the additions information:
This base is best used in bucket seat vehicles with a full center console. For 2014 and 2015 trucks with a 40/20/40 bench seat, the RAM-VB-191 is also an option. To install this base, the plastic trim nearest to the passenger door may need to be cut or modified to accommodate the RAM® No-Drill™ base once installed. If this cannot be done in your vehicle, or you are not comfortable with this, you should not purchase this product. Note that the RAM-VB-191-SW1 will not work with the 4x4 lever on the center hump of the vehicle. The RAM-VB-191-SW1 is for 4x2 trucks only.
It is possible to buy only a base for this - to be compatible for 2021 +? We use these in a work fleet and are wondering if all new stands will need to be purchased when we upgrade, or if a new base can be purchased to connect. Thanks!

If we offer a part in a kit for sale separately you will see it in the Components section on the bottom of the product page right above the Frequently Bought Together.
I have a Ram mount in my 2018 Chevrolet Sierra 2500 HD. I need the parts from the upright pole to the laptop base. The one I have is worn-out. What items do I need to ask for?

All components are listed at the bottom of the "Overview" tab. The upper pole is the RAM-VP-TTM8U and here is the double swing arm RAM-VB-110-1U
What are the dimensions of the baseplate?

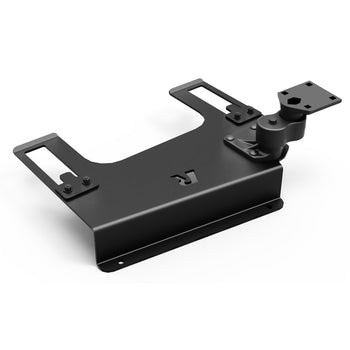

The RAM-VB-193NR that's included as part of the RAM-VB-193-SW1 No Drill Laptop Mount for '14-'19 Chevrolet Silverado+ More is 3.13" tall, 18.94" wide, and approximately 13.25" deep.
Can you please confirm which no-drilling laptop mount I would need for 2016 GMC Yukon? Thx!

Yes, the RAM-VB-193-SW1 is the no drill laptop mount that is compatible with a 2016 GMC Yukon.
Does this model fit a 2022 GMC Canyon?

Yes, the RAM-VB-193-SW1 will accommodate a 2022 GMC Canyon.
2019 Silverado has no front passenger seat bolts, only slide in brackets. How does it mount?

This mount is intended for the seat hook style design instead of seat bolts. You can see the installation guide for this mount here for reference.
