Patented & Pats. Pend.

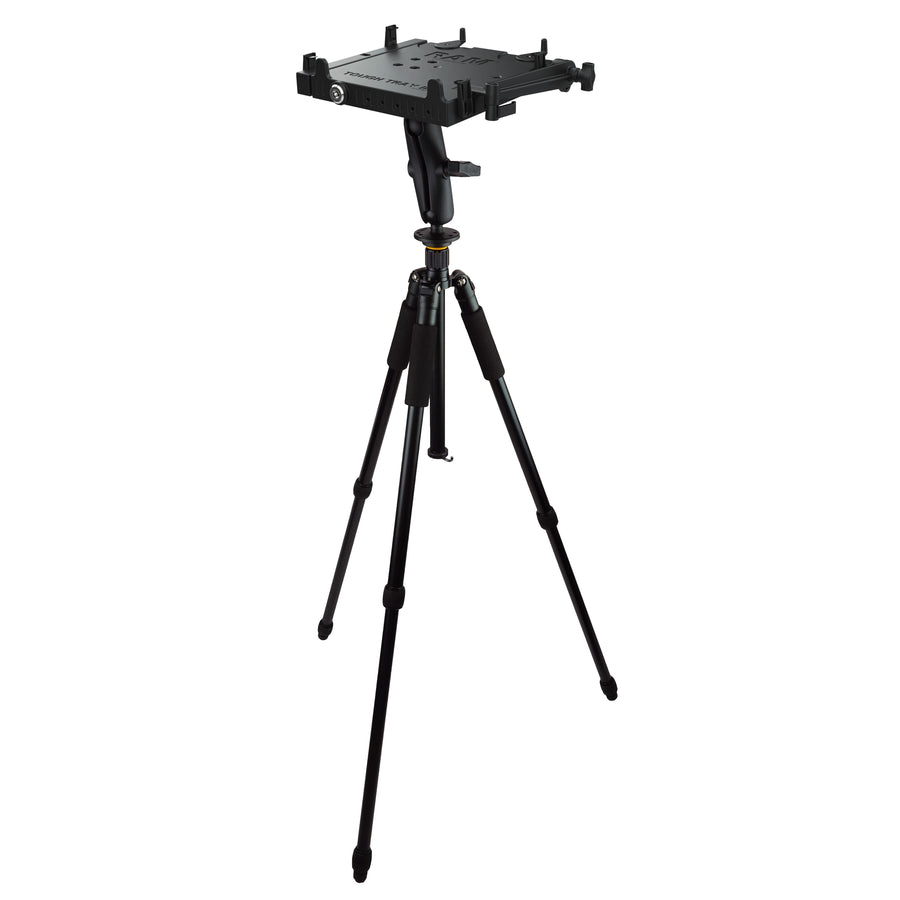

RAM® Tough-Tray™ III Laptop Holder with Adjustable Tripod

Part#: RAM-TRIPOD1-234-7
UPC: 793442038921

Kit Components

Previous Slide Next Slide
$500.99

Overview

The RAM® Tough-Tray™ III with Adjustable Tripod (RAM-TRIPOD1-234-7) is a versatile, all-in-one laptop mounting solution designed for flexible positioning and reliable device support. The included adjustable tripod allows you to customize the setup to suit your workspace and application. The spring-loaded RAM® Tough-Tray™ III accommodates laptops ranging from 10" to 17" in screen size, measured diagonally, and features four adjustable retaining arms with integrated grips. Each arm adjusts vertically and horizontally to provide a secure, customized fit for laptops of varying thicknesses while maintaining access to ports and drives. Integrated 2-hole AMPS mounting patterns around the tray perimeter make it easy to expand your setup with compatible accessories, including printers, handheld devices, and scanners. Further customize your workstation with optional accessories, such as the RAM® Adjustable Screen Support and RAM® Power Caddy, sold separately.

Features

  • Includes an adjustable tripod and RAM® Tough-Tray™ III laptop holder for a customizable mounting solution
  • Universal laptop tray accommodates most laptops
  • Provides a stable, freestanding mounting platform with adjustable positioning to accommodate a variety of workspaces and applications
  • Integrated 2-hole AMPS mounting locations around the tray perimeter support compatible accessories, including printers, handheld devices, and scanners
  • Backed by a lifetime warranty

hardware included:

Assembly Hardware

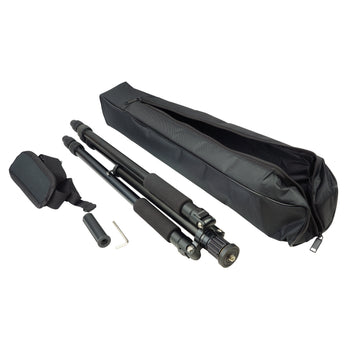

Tripod Carrying Bag

product dimensions:

Tripod Dimensions:
Minimum Height: 12.5"
Maximum Height: 56.5"
Folded Length: 21.5"

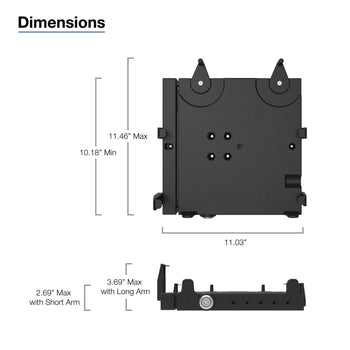

tray dimensions:

Width Range: 10" - 15.25"
Side Arm Clamp Height: 0" - 1.875"
Depth Range: 7.625" - 10.625"
Tray Thickness: 1.26"

socket to socket length:

4.66"

ball size:

C Size (1.5")

weight capacity:

Tripod: 40 lbs
Mount: 4 lbs

materials:

Marine-grade aluminum
High strength composite

packaging type:

Box

Weight:

9.69 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Instructions

RAM® Tough-Tray™ III Assembly Guide
Q&A
Questions & Answers loading...
RAM® Tough-Tray™ III Laptop Holder with Adjustable Tripod
$500.99

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size 1" ball
  • C Size — this product 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C — this product1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
