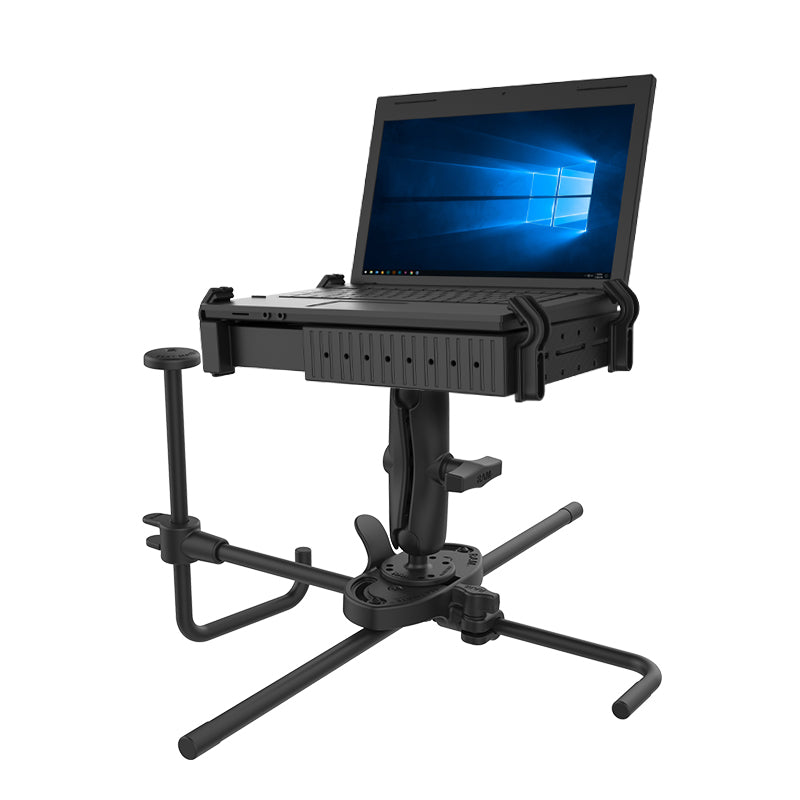

RAM® Seat-Mate Universal Laptop Mount - Medium

rammount.com
1-800-497-7479
sales@rammount.com

RAM® Seat-Mate Universal Laptop Mount - Medium
Part #: RAM-SM1-234-3 UPC: 793442924965 Patented

Product Information

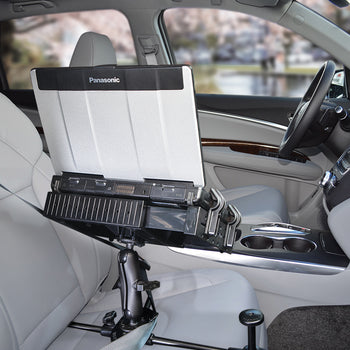

Overview	Compact, portable, amazingly strong and no tools required are words that best describe the new RAM Seat-Mate™. Able to transform most any passenger seat into a workstation, simply unpack the mount from the compact bag, unfold the legs, and buckle it in. Truly innovative in design, this product is able to actively hold onto the seat and stabilize itself. For anyone who needs a temporary mobile workstation, this mounting solution is absolutely perfect. Designed to easily pack into a travel bag, suit case, or even under the seat of a vehicle, RAM makes it possible to create a comfortable workspace in minutes where ever your job takes you. The RAM Seat-Mate™ is perfect for laptops, tablets, and UMPC’s. The integrated rubber ball and socket system allows the user to achieve ergonomic viewing and typing angles. If you're a mobile professional, this product was designed for you.

Product Information

Overview

Compact, portable, amazingly strong and no tools required are words that best describe the new RAM Seat-Mate™. Able to transform most any passenger seat into a workstation, simply unpack the mount from the compact bag, unfold the legs, and buckle it in. Truly innovative in design, this product is able to actively hold onto the seat and stabilize itself. For anyone who needs a temporary mobile workstation, this mounting solution is absolutely perfect. Designed to easily pack into a travel bag, suit case, or even under the seat of a vehicle, RAM makes it possible to create a comfortable workspace in minutes where ever your job takes you. The RAM Seat-Mate™ is perfect for laptops, tablets, and UMPC’s. The integrated rubber ball and socket system allows the user to achieve ergonomic viewing and typing angles. If you're a mobile professional, this product was designed for you.

Specifications
hardware included	Assembly Hardware

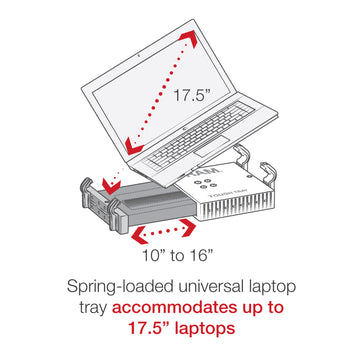

tray dimensions	Width Range: 10" - 16" Side Arm Clamp Height: .5" - 1.75" Tray Depth: 10" Tray Thickness: 2.125"
socket to socket length	4.66"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum High strength composite Powder coated steel
packaging type	Retail Box
Weight	8.1 lb

RAM® Seat-Mate Universal Laptop Mount - Medium

Questions about our products? Email us for support.

Patented

RAM® Seat-Mate Universal Laptop Mount - Medium

Part#: RAM-SM1-234-3

UPC: 793442924965

C Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 3.73"	Overall Length 5.69"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$216.49

Options

C Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 3.73"	Overall Length 5.69"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
