RAM® Pin-Lock™ Marine Electronic Mount with Gimbal Knob - C Size Medium
$89.49
C Size 1.5" Ball

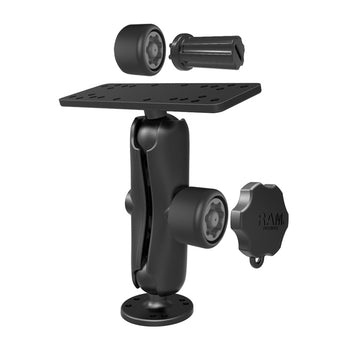

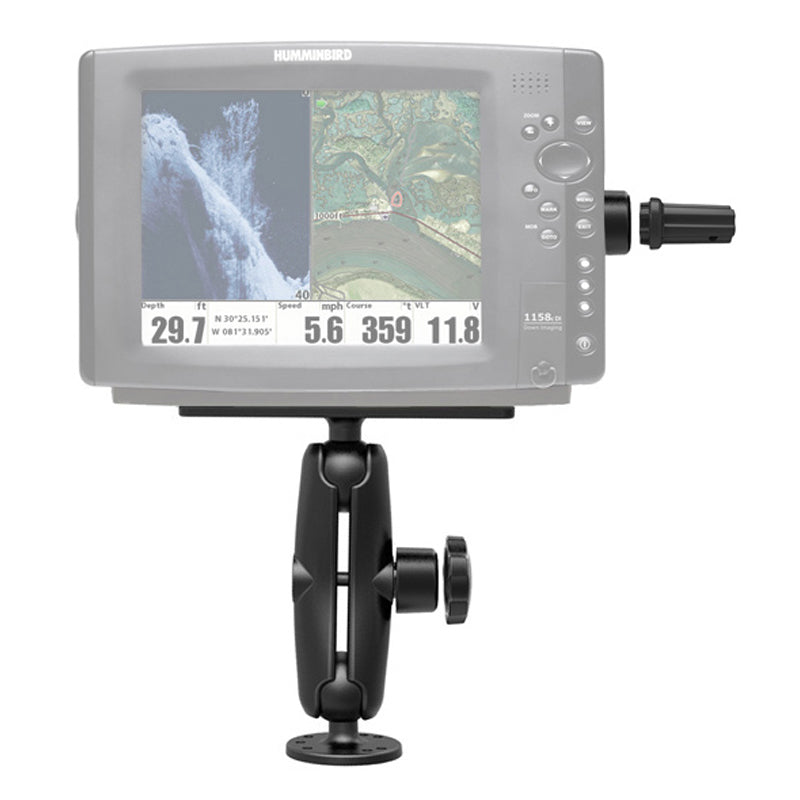

The RAM-SG-111U consists of a 2.5" diameter round base, STANDARD LENGTH double socket arm, 6.25" x 2" rectangle base, RAM mixed combination Pin-Lock™ security nut/knob and key knobs for Gimbal Brackets. The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
RAM® Pin-Lock™ Marine Electronic Mount with Gimbal Knob - C Size Medium
Overview
The RAM-SG-111U consists of a 2.5" diameter round base, STANDARD LENGTH double socket arm, 6.25" x 2" rectangle base, RAM mixed combination Pin-Lock™ security nut/knob and key knobs for Gimbal Brackets. The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
hardware included
(2) RAM Pin-Lock Security Keys
product dimensions
Overall Height: 7.35"
socket to socket length
4.66"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
plate size
Top Plate: 6.25" x 2"
Bottom Plate: 2.5"
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminum
packaging type
Poly Bag
Weight
1.65 lb
