Overview
The GDS® Aina PTT Voice Responder Vehicle Bundle for iPhone 16 (RAM-GDS-V15-SAM84-PTT1) is a rugged, all-in-one Push-To-Talk (PTT) mounting solution designed to seamlessly integrate the iPhone 16 into mission-critical workflows. Ideal for field operations, public safety, and fleet management, this bundle includes a GDS® Dock™, IntelliSkin® for the Apple iPhone 16, microphone bracket, two hardwire chargers, SAE splitter, and double ball mount with backing plate for secure in-vehicle installation. The dock features a USB Type-C female power connector for direct connection to the hardwire charger, while the AINA Vehicle Charging Cradle connects plugs directly into the second hardwire charger for power. Bluetooth-enabled Push-To-Talk communication is supported exclusively through AINA's Voice Responder Remote Speaker Microphone (RSM), offering reliable wireless connectivity in demanding environments. Integrated pogo pins on the dock provide consistent power to the IntelliSkin®-protected device, ensuring optimal uptime and device readiness. This PTT bundle is optimized for use with ESChat. Zello, and Kodiak, making it a powerful communication hub for modern mobile teams. Please note, this kit's IntelliSkin® is only compatible with the iPhone 16 and is not compatible with the iPhone 16 Pro, iPhone 16 Pro Max, or iPhone 16 Plus. Always Protected. Always Connected.®
Features

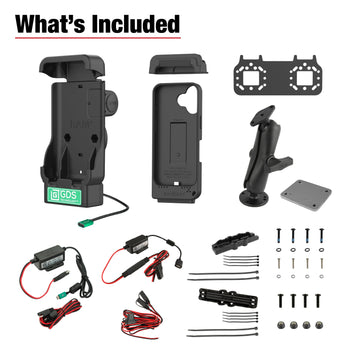

- Bundle includes GDS® Dock™, IntelliSkin® for the Apple iPhone 16, microphone bracket, two hardwire chargers, SAE splitter, and double ball mount with backing plate
- Dock features GDS® Technology™ for charging capabilities; USB-C port connects to power
- AINA's Voice Responder RSM and Vehicle Cradle recommended for bluetooth PTT
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a 3-year warranty
hardware included:
Assembly Hardware
Mic Bracket
Hardwire Charger with USB-C Power Delivery
Hardwire Charger with USB-A Female Connector
SAE Splitter Cable
(2) Cable Clamps
Dashboard Backing Plate with Hardware
socket to socket length:
4.66"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Steel
Marine-grade aluminum
High strength composite
packaging type:
Box
input voltage:
10-30VDC (Both Chargers)
output voltage:
USB-C Charger: 5-15VDC @ 3A
USB-A Charger: 5-9VDC @ 2.5A
input connector:
Bare Wire (via SAE Splitter)
output connector:
USB-C for GDS® Dock
USB-A for Aina PTT Voice Responder
regulatory:
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
certifications:
CE Certification
RCM Certification
FCC Certification
UL 62368-1 Certificaton
