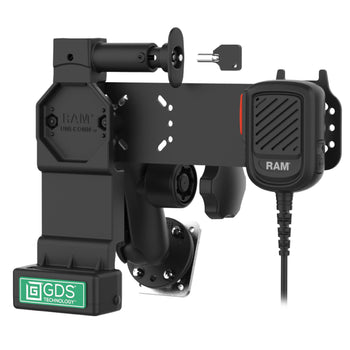

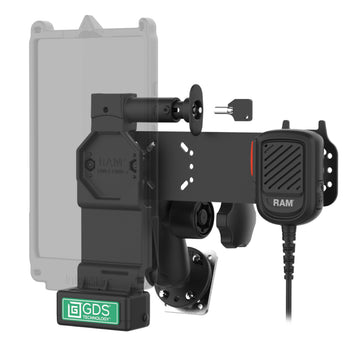

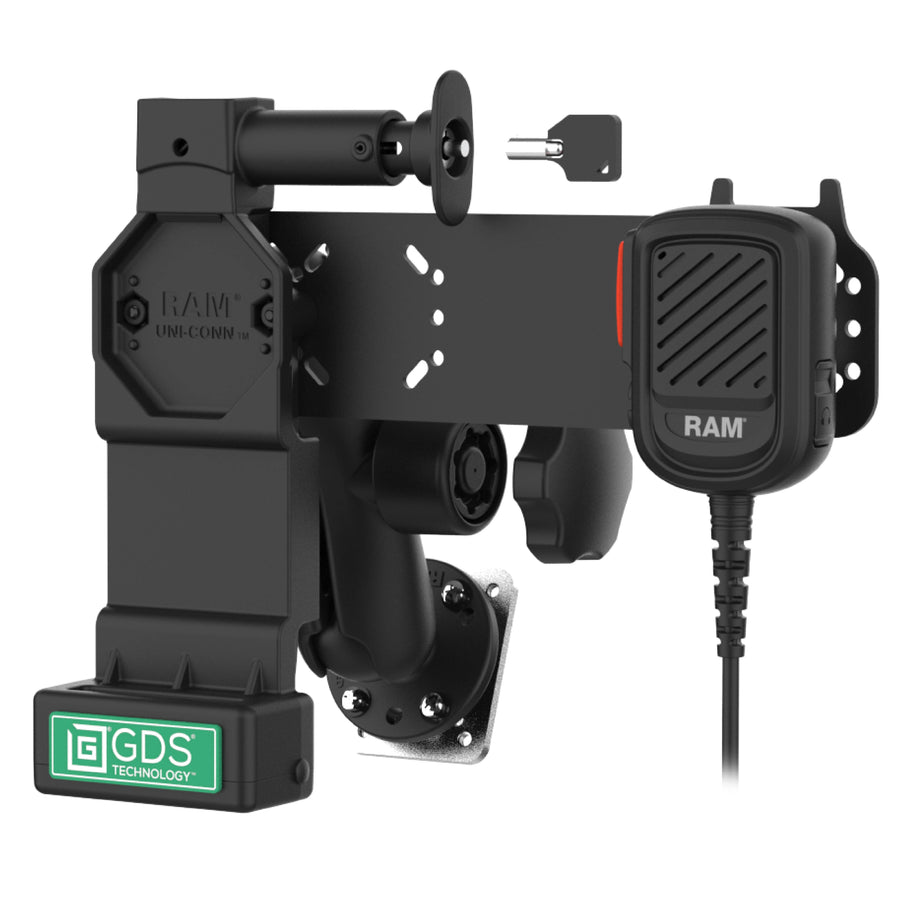

GDS® Uni-Conn™ Locking PTT Remote Speaker Mic Bundle for Kodiak

Part #: RAM-GDS-U4L-RSM-A05 UPC: 793442034640 Patented & Pats. Pend.

Features

GDS® Uni-Conn™ Push-to-Talk mounting bundle designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed (sold separately)
Uses a USB-C connector for reliable push-to-talk (PTT) or PTT over Cellular (PoC) when paired with a RAM® tablet or phone dock
Uni-Conn™ dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
Locking dock and knob provide theft deterrence for added security
Mounting components backed by a lifetime warranty; electronics backed by a 3-year warranty

GDS® Uni-Conn™ Locking PTT Remote Speaker Mic Bundle for Kodiak

Product Information

Overview

The GDS® Uni-Conn™ Locking PTT Remote Speaker Mic Bundle for Kodiak (RAM-GDS-U4L-RSM-A05) delivers everything you need to enable reliable Push-to-Talk over Cellular (PoC) in your fleet. This bundle does not include an IntelliSkin®, ideal for organizations already using IntelliSkin® device sleeves or deploying a mixed-device fleet within the GDS® Ecosystem™. It includes the universal Uni-Conn™ locking dock with side release button, drill-down base with backing plate, microphone bracket, microphone clip, and a rugged USB-C Remote Speaker Microphone (RSM). Compatible with Kodiak, the RSM ensures clear, instant communication for fleets, first responders, logistics teams, and mobile workforces. Plus, with locking knobs for theft deterrence, your hardware stays protected in the field.

Specifications

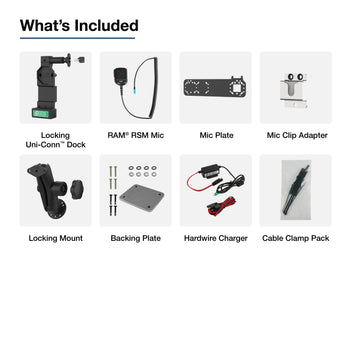

hardware included	(1) Remote Speaker Mic (1) Uni-Conn™ Dock (Locking) (1) Mic Bracket (1) Mic Clip Receiver (1) Double Ball Mount with Backing Plate (1) Hardwire Charger (2) Cable Clamp Kits
socket to socket length	4.66"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
ball size	C Size (1.5")
materials	Steel Marine-grade aluminum High strength composite
packaging type	Box
power specifications	Remote Speaker Mic: Operating Voltage: 1.2VDC - 5VDC Current Consumption 100UA - 500UA Output Impedance @ 1KHZ Max 2.2K Ohms Signal to Noise Ratio: 1KHZ 60+ DB Max Input SPL 110DB Moisture Ingress Rating IP67
input voltage	10-30VDC
output voltage	12VDC
power output	25W
input connector	USB Type-C USB Type-C for 1 Peripheral
input cable length	215mm
output cable length	215mm
peripheral output	500mA
Warranty	3 year warranty
Weight	4.97 lb

Video Thumbnail — YouTube video thumbnail for 56MqlyzgRDY

Patented & Pats. Pend.

GDS® Uni-Conn™ Locking PTT Remote Speaker Mic Bundle for Kodiak

Name: GDS® Uni-Conn™ Locking PTT Remote Speaker Mic Bundle for Kodiak
Brand: RAM Mounts
SKU: RAM-GDS-U4L-RSM-A05
Price: 618.99 USD
Availability: InStock

One Dock to Connect Them All™

Part#: RAM-GDS-U4L-RSM-A05

UPC: 793442034640

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
