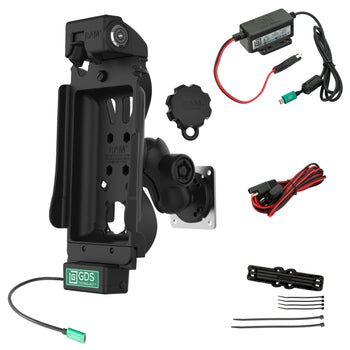

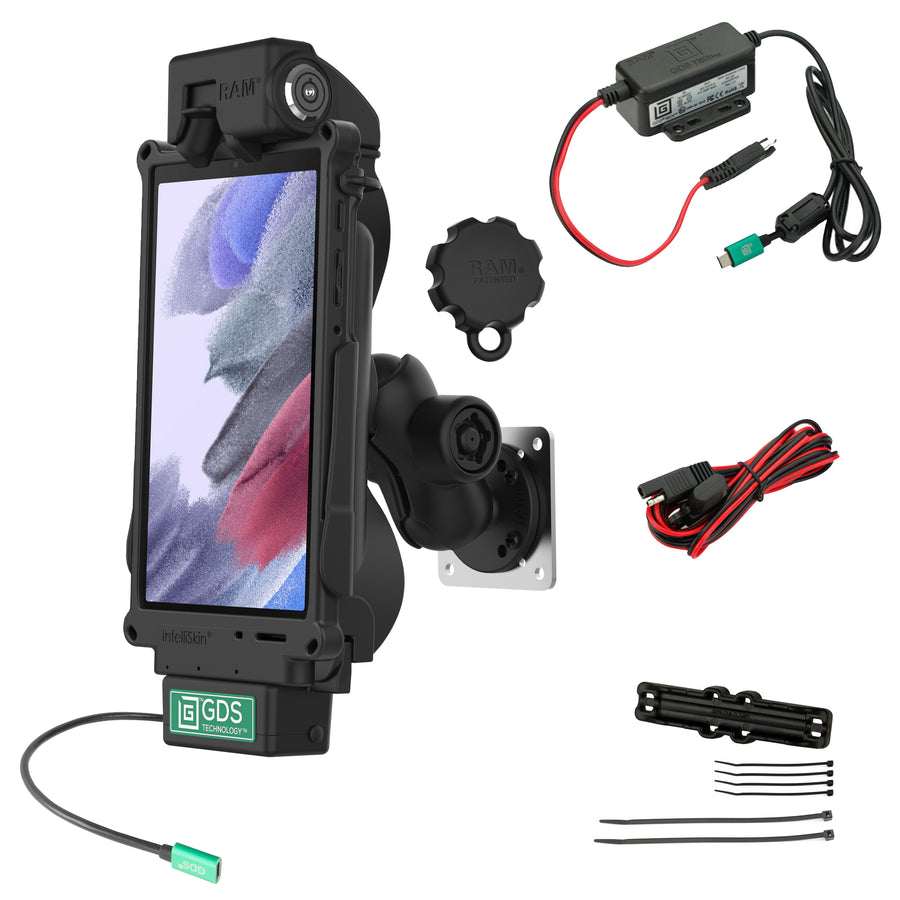

GDS® Tough-Dock™ Locking Vehicle Bundle for Samsung Tab A7 Lite 8.7"
Always Protected. Always Connected.®
$437.99
Locking
Features
- Bundle includes locking GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A7 Lite 8.7", hardwire charger with USB-C connector, low-profile double ball mount with C size (1.5") ball and RAM® Pin-Lock™ Knob, backing plate adapter and cable clamp
- Dock features GDS® Technology™ for charging capabilities; uses USB-C port to connect to power
- RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
- Backed by a 3-year warranty
Ideal for transportation and large fleet vehicles, this bundle is all you need to pair with your Samsung Tab A7 Lite 8.7". This bundle includes a locking GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A7 Lite 8.7", hardwire charger with USB Type-C connector, C Size double ball mount paired with the short arm with RAM® Pin-Lock™ 5-Pin Security Knob, backing plate adapter, and cable clamp. This bundle is ELD compliant, providing a turnkey solution for your fleet. Always Protected. Always Connected.®
GDS® Tough-Dock™ Locking Vehicle Bundle for Samsung Tab A7 Lite 8.7"
Always Protected. Always Connected.®
Overview
Ideal for transportation and large fleet vehicles, this bundle is all you need to pair with your Samsung Tab A7 Lite 8.7". This bundle includes a locking GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A7 Lite 8.7", hardwire charger with USB Type-C connector, C Size double ball mount paired with the short arm with RAM® Pin-Lock™ 5-Pin Security Knob, backing plate adapter, and cable clamp. This bundle is ELD compliant, providing a turnkey solution for your fleet. Always Protected. Always Connected.®
hardware included
Assembly Hardware
(2) Dock Keys
(1) Knob Key
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) Cable Clamp
(1) Vehicle Hardwire Charger
socket to socket length
2.5"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size
C Size (1.5")
materials
Steel
Marine-grade aluminum
High strength composite
packaging type
Poly Bag
output voltage
5-9VDC*
input connector
Female USB Type-C
input cable length
1.2 Meters including 2 Pole Flat Marine Connector
output cable length
150mm
operating temperature
-20°C to +70°C
storage temperature
-40°C to +85°C
regulatory
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
certifications
CE Certification
E-Mark Certification
RCM Certification
FCC Certification
UL 62368-1 Certificaton
Warranty
3 year warranty
Weight
3.6 lb
