RAM^® 100x100mm VESA Plate with Ball - E Size
Part #: RAM-E-246U UPC: 793442903724

Product Information

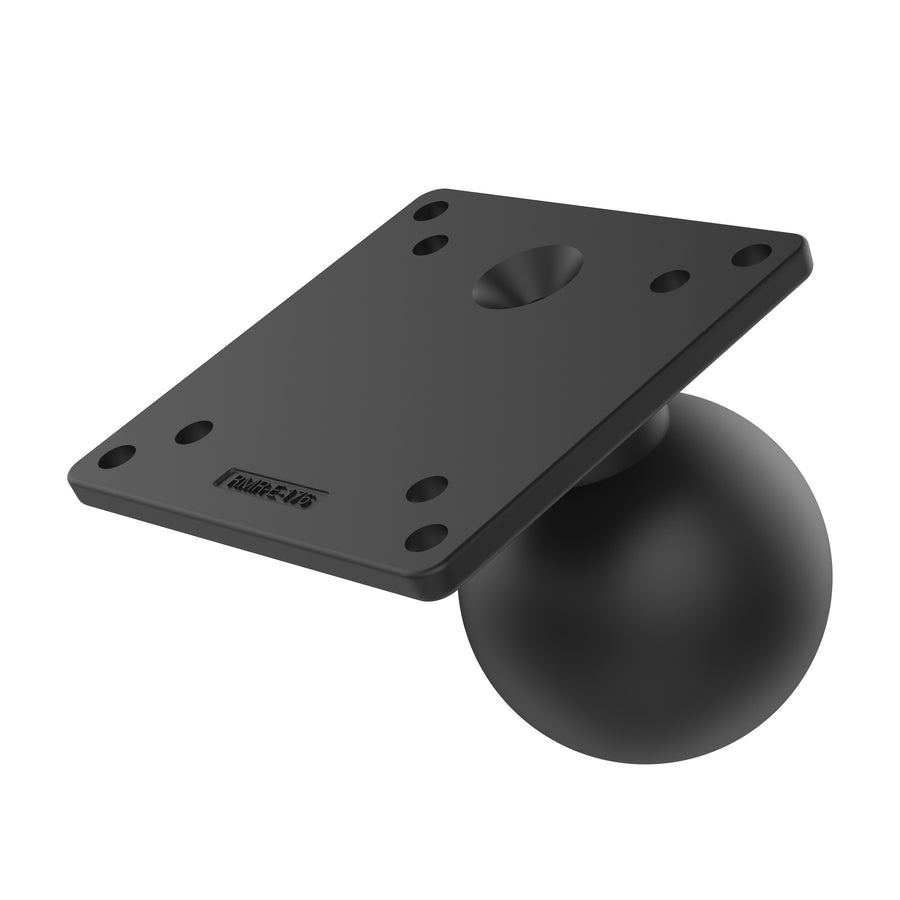

Overview	The RAM-E-246U consists of a 3.38" rubber ball, connected to a 4.75" square plate with 4x100mm holes and 4x75mm holes in each corner. This product includes a set of washers intended to reduce the hole sizes in the VESA plate.

Specifications
hardware included	(4) .312" x .187" Shoulder Washers
hole pattern	See Drawing
ball size	E Size (3.35")
weight capacity	Standard Use: 15 lbs Heavy-Duty Use: 10 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	2.04 lb

RAM<sup>®</sup> 100x100mm VESA Plate with Ball - E Size

Questions about our products? Email us for support.

RAM^® 100x100mm VESA Plate with Ball - E Size

Part#: RAM-E-246U

UPC: 793442903724

E Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
