RAM® Marine Electronics Mount with RAM® Hi-Torq™ Wrench
D Size
Short Arm
$160.99
Overview

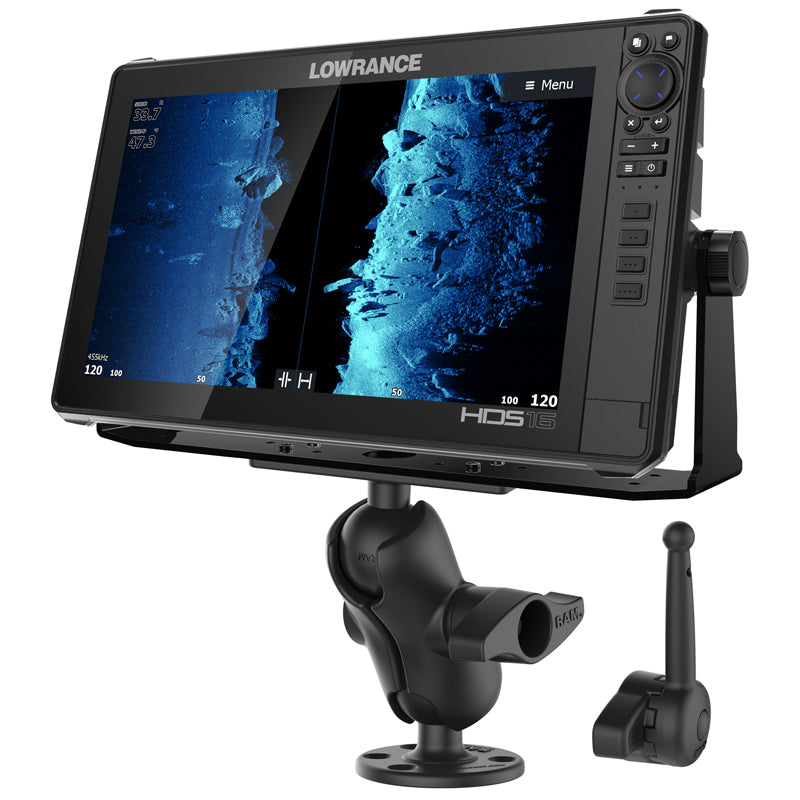

The RAM-D-115-C-KNOB9H consists of a base with a 2.25” diameter D size ball, a short arm, a Hi-Torq™ wrench and a 6.25” x 2” marine electronic plate with a D size ball for supporting larger devices. This marine electronic plate contains different combinations of pre-drilled holes and is a direct fit for 9”-12” fishfinder gimbal brackets. For cold weather environments, the included Hi-Torq wrench helps to tighten the knob on the arm for a secure hold. Supports devices such as the Lowrance HDS-9 Gen2 Touch, Garmin GPSMAP 7407 and more.
Features
- Complete flat surface, drill-down mounting solution with short length D size socket arm compatible with 9"-12" fishfinder gimbal brackets
- Includes RAM® Hi-Torq™ Wrench for extra leverage tightening the socket arm knob
- RAM® Mounts ball and socket technology allows for near-infinite adjustability
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty
product dimensions:
Overall Height: 7.325"
socket to socket length:
3.6"
hole pattern:
See Drawings
plate size:
Top Plate: 6.25" x 2"
Bottom Plate: 3.68" Diameter
ball size:
D Size (2.25")
weight capacity:
Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs
materials:
Marine-grade aluminum
packaging type:
Retail bag
Weight:
3.65 lb
Additional Information:

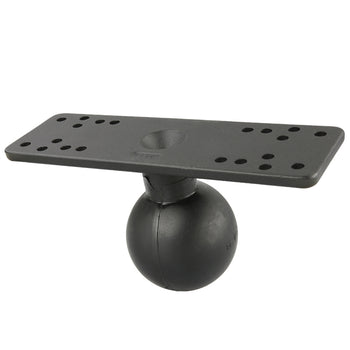

The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
Questions & Answers
Have a Question?
-
What screws are used to attach the RAM Mount to the gimbal bracket?
Typically the gimbal bracket included with your fishfinder will also come with mounting screws that should connect to the RAM® mounting plate. As these mounts are universal and are for many different applications, the necessary hardware needed for each application will vary. For marine applications, RAM® recommends stainless steel hardware to prevent corrosion.
