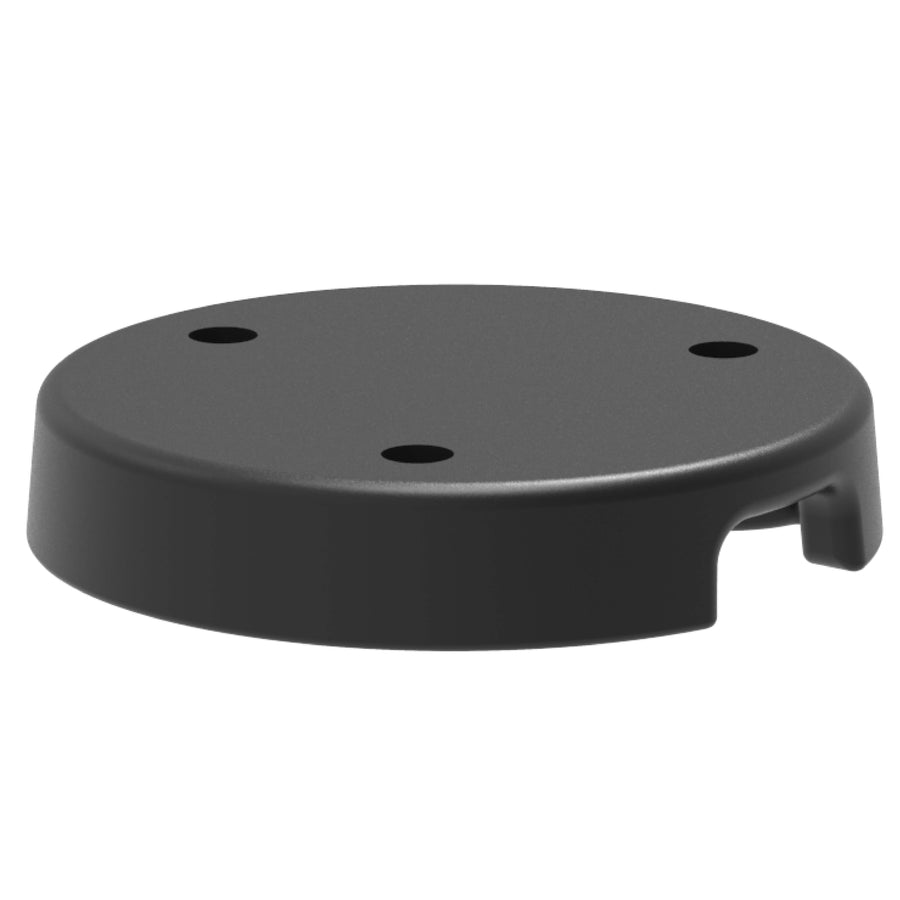

RAM® Cable Manager for Large Electronic Mounts
Overview
The RAM® Cable Manager for Large Electronic Mounts (RAP-402U) creates a clean, protected pathway for electrical wiring, allowig you to mount a device over a new or existing hole used for cable routing. Designed to provide a tidy entry and exit point for cables while concealing installation openings, this plate is compatible with all 2.25" diameter ball bases featuring a three-hole, 120° hole pattern. (Note: it is not compatible with AMPS hole patterns.) Its durable composite construction acts as a buffer between the boat’s surface and the mount’s base, helping minimize vibration and reducing potential fiberglass or gel-coat damage.
Features
- Compatible with 3.68" diameter round plates with a 3 hole pattern
- Backed by a lifetime warranty
hardware included:
(3) 5/16"-18 x 3" Machine Screws
(3) 5/16"-18 Nylock Nuts
(3) 5/16" Stainless Steel Washers
product dimensions:
Cable Slot Height: .45"
Cable Slot Width: .95"
clamp range:
Max mounting surface thickness: 1.47"
hole pattern:
3-Hole 12-Degree: 2.75" Diameter
materials:
High strength composite
packaging type:
Poly Bag
Weight:
0.5 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
QUESTIONS & ANSWERS
Have a Question?
-
Does this work with RAM-111U-B short arm?
No, this is for the D size round plate that is 3.68" in diameter. For the C size kit, you will want the RAP-403U.
-
what cable manager should I use for RAM-D-115? Bottom of ball mount shows RMR-D-178
The RAP-402U is the cable manager recommended for our D sized 2.25" product.
-
Will this work with RAM-D-202-25-C-202U with 4 hole base?
Yes, the RAM-402U is compatible with the three hole offset patter in the drill down base of a RAM-D-202-25-C-202U.
-
Is this the cable manager I need for ram-d-115-c-a?
Yes, the RAP-402U shares the same hole spacing as the drill down base that's included with a RAM-D-115-C.
-
Do you make cable management base for swingarm mount 109h?
No, there is not currently a cable manager for the horiztonal swing arm mounts like the RAM-109HU.
