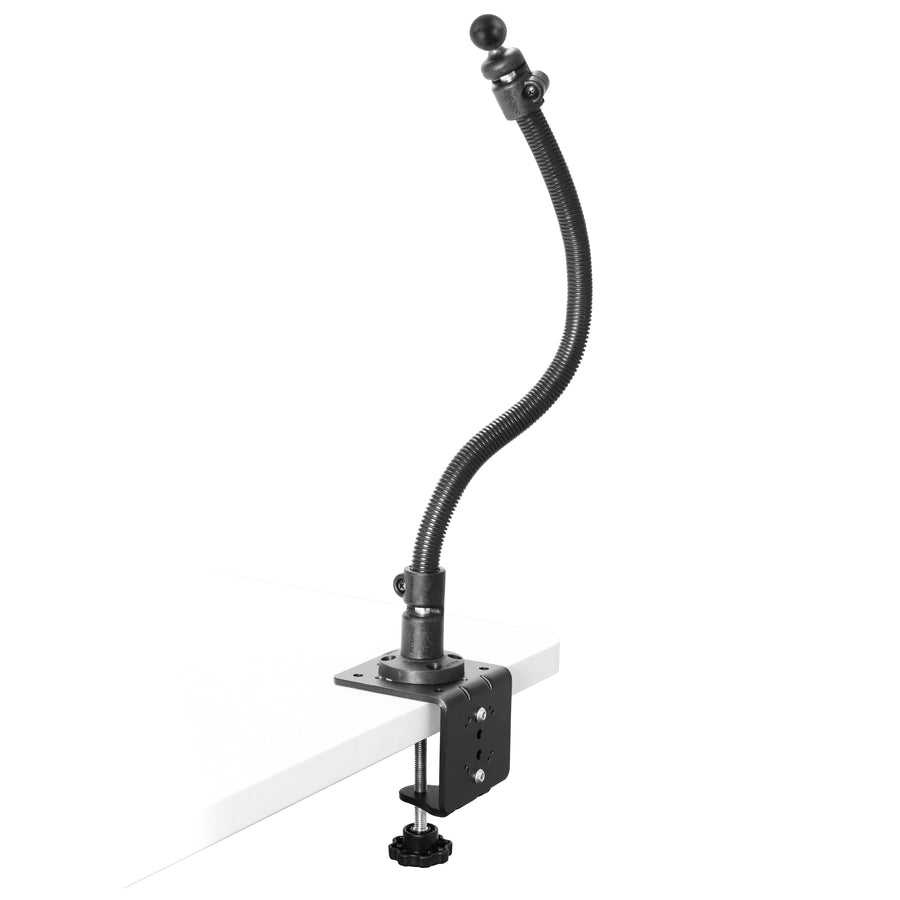

RAM® Heavy Duty C-Clamp Base with 18" Flex-Rod™ with Ball - B Size
Part #: RAM-CC1-18BU UPC: 793442036125 Features Clamp secures to surfaces 0–4” thick Flexible 18" aluminum rod can be bent to achieve ideal viewing and operating angle; includes B size components at both ends Compatible with B size RAM® ball components Non-permanent mounting solution delivers a stable, professional-grade installation without drilling Backed by a lifetime warranty

Product Information

Overview

The RAM® Heavy Duty C-Clamp Base with 18" Flex-Rod™ with Ball - B Size (RAM-CC1-18BU) is a multi-functional mounting solution designed for flexible, non-permanent device installation across a wide variety of workspaces. Ideal for desks, tables, carts, or mobile stations, this clamp secures firmly to surfaces ranging from 0" up to 4" in thickness—no minimum edge depth required. The 18" rigid aluminum Flex-Rod™ can be bent and shaped to achieve the ideal viewing angle and device position, then retains its form for reliable, hands-free operation. Complete with a B-size RAM® ball and socket arm, this mounting system provides a secure foundation for a wide range of phones, tablets, scanners, and other compatible devices, making it an ideal solution for offices, warehouses, healthcare environments, and industrial applications.

Specifications
hardware included	Assembly Hardware
product dimensions	Arm + Ball Length: 20.86"
clamp range	0" - 4"
ball size	B Size (1")
materials	Powder coated steel Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	2.96 lb

RAM® Heavy Duty C-Clamp Base with 18" Flex-Rod™ with Ball - B Size

Name: RAM® Heavy Duty C-Clamp Base with 18" Flex-Rod™ with Ball - B Size
Brand: RAM Mounts
SKU: RAM-CC1-18BU
Price: 114.49 USD
Availability: OutOfStock

Part#: RAM-CC1-18BU

UPC: 793442036125

$114.49

Options

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

Features

Clamp secures to surfaces 0–4” thick
Flexible 18" aluminum rod can be bent to achieve ideal viewing and operating angle; includes B size components at both ends
Compatible with B size RAM® ball components
Non-permanent mounting solution delivers a stable, professional-grade installation without drilling
Backed by a lifetime warranty
