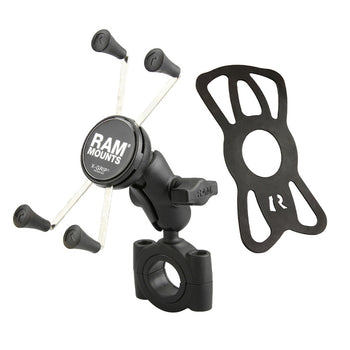

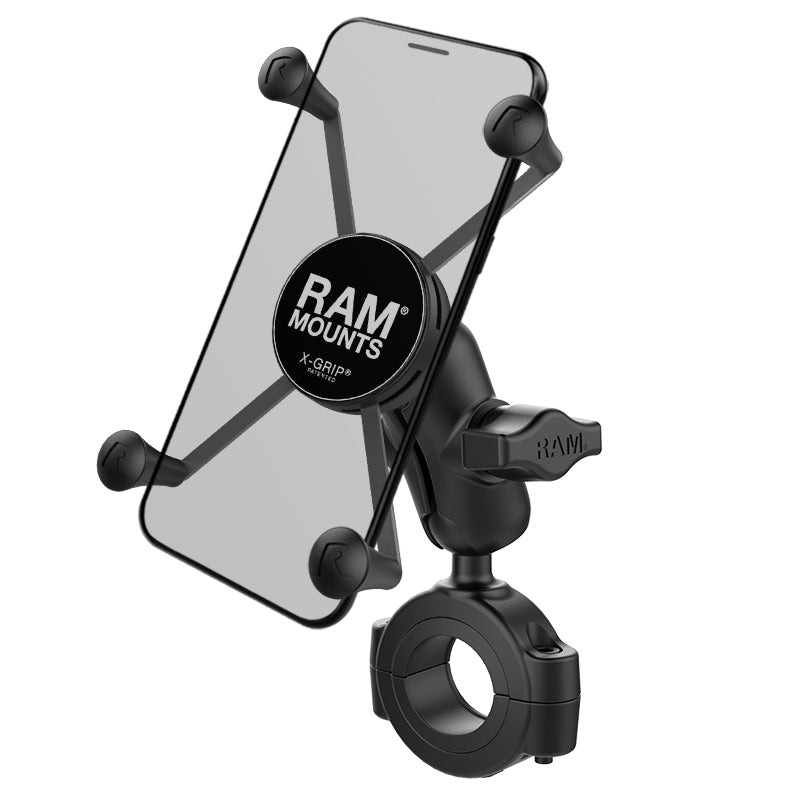

RAM® X-Grip® Large Phone Mount with Torque™ Large Rail Base - Short Arm | |
---|---|
Part #:
RAM-B-408-112-15-A-UN10
UPC:
793442953620
Patented
|
![]() |
Product Information | |
---|---|
Overview | Take your mobile entertainment on the road with the new RAM® Torque™ handlebar and rail mounting base. We’ve paired a B-size 1” rubber ball base that accommodates bars 1 1/8" to 1 ½” in diameter with a short length arm and the dynamic X-Grip® for larger phones. Sizing inserts are included to provide a snug fit and offer additional protection for the rail. The mount utilizes nylon-insert lock nuts to prevent loosening in high vibration environments. This low-profile mount is the perfect way to secure your personal electronics and small accessories in any high-vibration environment. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip® is the cell phone cradle evolved. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size. |
Specifications | |
---|---|
hardware included | (1) Optional Tether (1) Glue Tube for Rubber Caps (2) #10-24 x 1" Socket Head Cap Screws (2) #10-24 Nylock Nuts (2) 1.12" Split Reducing Bushings (2) 1.27" Split Reducing Bushings (1) 5/32" Hex Key Wrench (1) 127mm x 17mm Rubber Adhesive Strip |

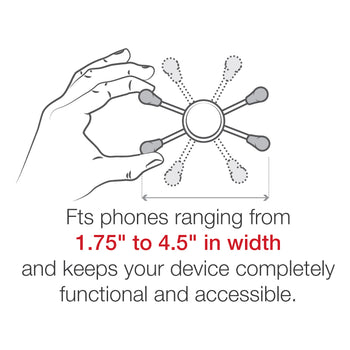

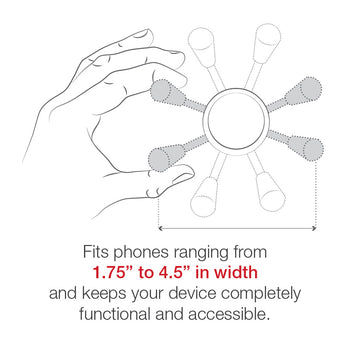

holder dimensions | Width Range: 1.75" - 4.5" Depth Range: .875" max |
clamp range | 1.125" - 1.5" diameter |
socket to socket length | 1.75" |
ball size | B Size (1") |
weight capacity | Standard Use: 2 lbs Heavy-Duty Use: 1 lb |
materials | Marine-grade aluminum High strength composite Stainless steel |
packaging type | Retail Box |
Weight | 0.96 lb |
Additional Information | Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more. |


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Apple
iPhone 6s Plus
iPhone 7 Plus
iPhone 8 Plus
iPhone Xs Max
iPhone 11 Pro Max
iPhone 12 Pro Max
iPhone 13 Pro Max
iPhone 14 Plus
iPhone 14 Pro Max
iPhone 15
iPhone 15 Plus
iPhone 15 Pro Max
iPhone 16
iPhone 16 Plus
iPhone 16 Pro
iPhone 16 Pro Max
Blackberry
Evolve X
Blackview
BV9900
BV9900 Pro
Cat
S42
S62
S62 Pro
Garmin
Drive 50
Drive 51 LM
Drive 52
Drive 61 LM
DriveSmart 51 LMT-S
DriveSmart 61 LMT-S
DriveTrack 71
Nuvi 2788LM
RV 660LMT
RV 770 LMT-S
Pixel 2 XL
Pixel 3 XL
Pixel 3a XL
Pixel 7 Pro
Pixel 8 Pro
HTC
Bolt
U Ultra
Huawei
Mate 20 X
Kyocera
DuraSport 5G
LG
Fiesta 2 LTE
Fiesta LTE
G8S ThinQ
Harmony
Stylo 2 V
Stylo 3
Stylo 3 Plus Titan
Stylo 4
V20
V50 ThinQ
X charge
X venture
Magellan
TR5
TR7
Motorola
moto e4 plus
moto g4
moto z2
moto z2 play
moto z3
Rand
McNally Road Explorer 5
McNally TND 540
Razer
Phone 2
Samsung
Galaxy A7
Galaxy A7 (2017)
Galaxy A7 (2018)
Galaxy A8
Galaxy A8 (2016)
Galaxy A9 (2016)
Galaxy A9 Pro (2016)
Galaxy A9 (2018)
Galaxy A15
Galaxy A70
Galaxy A80
Galaxy A90 5G
Galaxy C7
Galaxy C7 Pro
Galaxy C9 Pro
Galaxy E7
Galaxy Grand Neo Plus
Galaxy J7
Galaxy J7 Max
Galaxy J7 V
Galaxy Note 5
Galaxy Note 10 Plus
Galaxy Note20 Ultra
Galaxy On7
Galaxy S10 5G
Galaxy S8
Galaxy S8 Active
Galaxy S21 5G
Galaxy S21+ 5G
Galaxy S21 Ultra 5G
Galaxy S22 Ultra 5G
Galaxy S23+
Galaxy S23 Ultra
Galaxy S24+
Galaxy S24 Ultra
Galaxy S25+
Galaxy S25 Ultra
Galaxy XCover7
Social
Mobile Rhino C6
Sonim
RS60
Sony
Xperia C4
Xperia L2
Xperia XA Ultra
Xperia XA1 Ultra
Xperia XA2 Ultra
Xperia XZ Premium
Kit Components
