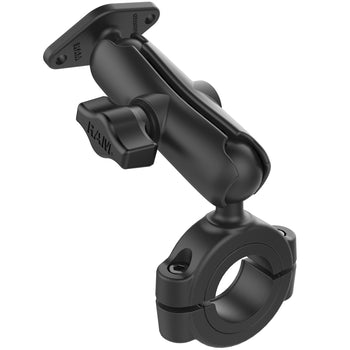

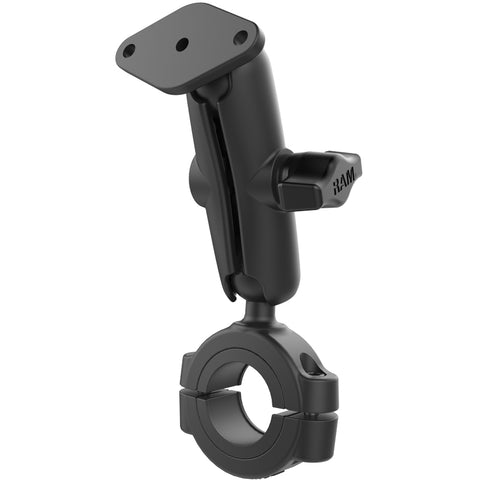

RAM^® Torque^™ Large Rail Base with Diamond Plate - Medium
Part #: RAM-B-408-112-15-238U UPC: 793442951039

Product Information
Overview	Take your mobile entertainment on the road with the RAM^® Torque^™ handlebar and rail mounting base. We’ve paired a B-size 1” rubber ball base that accommodates bars 1 1/8" to 1 ½” in diameter with a standard length double socket arm and B-size ball and diamond base so that you can connect any of the RAM Mounts cradles or anything else with the AMPS hole pattern. Sizing inserts are included to provide a snug fit and offer additional protection for the rail. The mount utilizes nylon-insert lock nuts to prevent loosening in high vibration environments. This low-profile mount is the perfect way to secure your personal electronics and small accessories in any high-vibration environment.

Product Information

Overview

Take your mobile entertainment on the road with the RAM^® Torque^™ handlebar and rail mounting base. We’ve paired a B-size 1” rubber ball base that accommodates bars 1 1/8" to 1 ½” in diameter with a standard length double socket arm and B-size ball and diamond base so that you can connect any of the RAM Mounts cradles or anything else with the AMPS hole pattern. Sizing inserts are included to provide a snug fit and offer additional protection for the rail. The mount utilizes nylon-insert lock nuts to prevent loosening in high vibration environments. This low-profile mount is the perfect way to secure your personal electronics and small accessories in any high-vibration environment.

Specifications
hardware included	(2) #10-24 x 1" Socket Head Cap Screws (2) #10-24 Nylock Nuts (2) 1.12" Split Reducing Bushings (2) 1.27" Split Reducing Bushings (1) 5/32" Hex Key Wrench (1) 127mm x 17mm Rubber Adhesive Strip
clamp range	1.125" - 1.5" diameter
socket to socket length	3"
hole pattern	2-Hole AMPS: 1.912"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.67 lb

RAM<sup>®</sup> Torque<sup>™</sup> Large Rail Base with Diamond Plate - Medium

Questions about our products? Email us for support.

RAM^® Torque^™ Large Rail Base with Diamond Plate - Medium

Part#: RAM-B-408-112-15-238U

UPC: 793442951039

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
