RAM^® Tough-Wedge^™ Base with Double Socket Arm - Long
Part #: RAM-B-407-201U-C UPC: 793442949029

Product Information

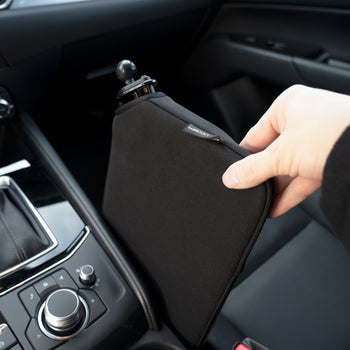

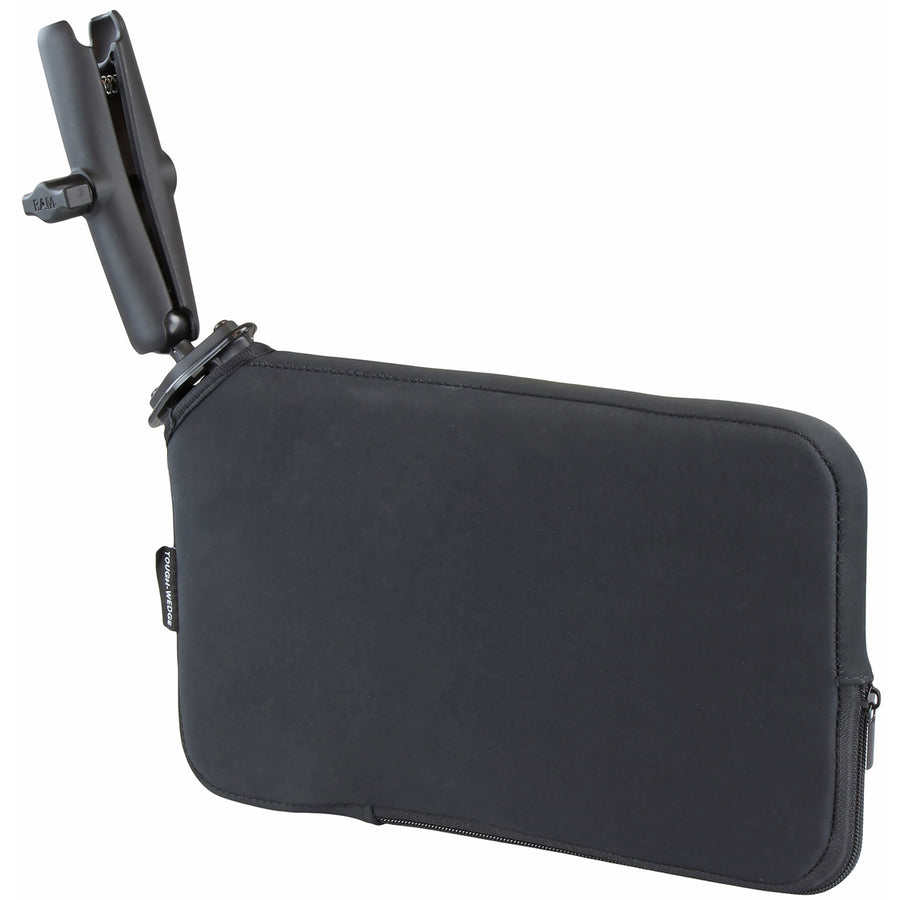

Overview	The RAM-B-407-201U-C consists of the Tough-Wedge^™ and long length double socket arm. The Tough-Wedge^™ is a seat wedge mount that fits in the gap between the vehicle seat and center console; allowing easy access and operation of your mobile device. The Tough-Wedge^™ can also be used for back-seat applications, inserted into the pockets located on the back of the front seats. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm. The long length double socket arm measures 6" and will connect to all RAM cradles/adapters with a 1" ball.

Product Information

Overview

The RAM-B-407-201U-C consists of the Tough-Wedge^™ and long length double socket arm. The Tough-Wedge^™ is a seat wedge mount that fits in the gap between the vehicle seat and center console; allowing easy access and operation of your mobile device. The Tough-Wedge^™ can also be used for back-seat applications, inserted into the pockets located on the back of the front seats. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm. The long length double socket arm measures 6" and will connect to all RAM cradles/adapters with a 1" ball.

Specifications
hardware included	Assembly Hardware
wedge dimensions	Length: 13.25" Height: 8.25" Thickness: 1"
socket to socket length	5.31"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	1.89 lb

RAM<sup>®</sup> Tough-Wedge<sup>™</sup> Base with Double Socket Arm - Long

Questions about our products? Email us for support.

RAM^® Tough-Wedge^™ Base with Double Socket Arm - Long

Part#: RAM-B-407-201U-C

UPC: 793442949029

B Size

Long Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$88.99
