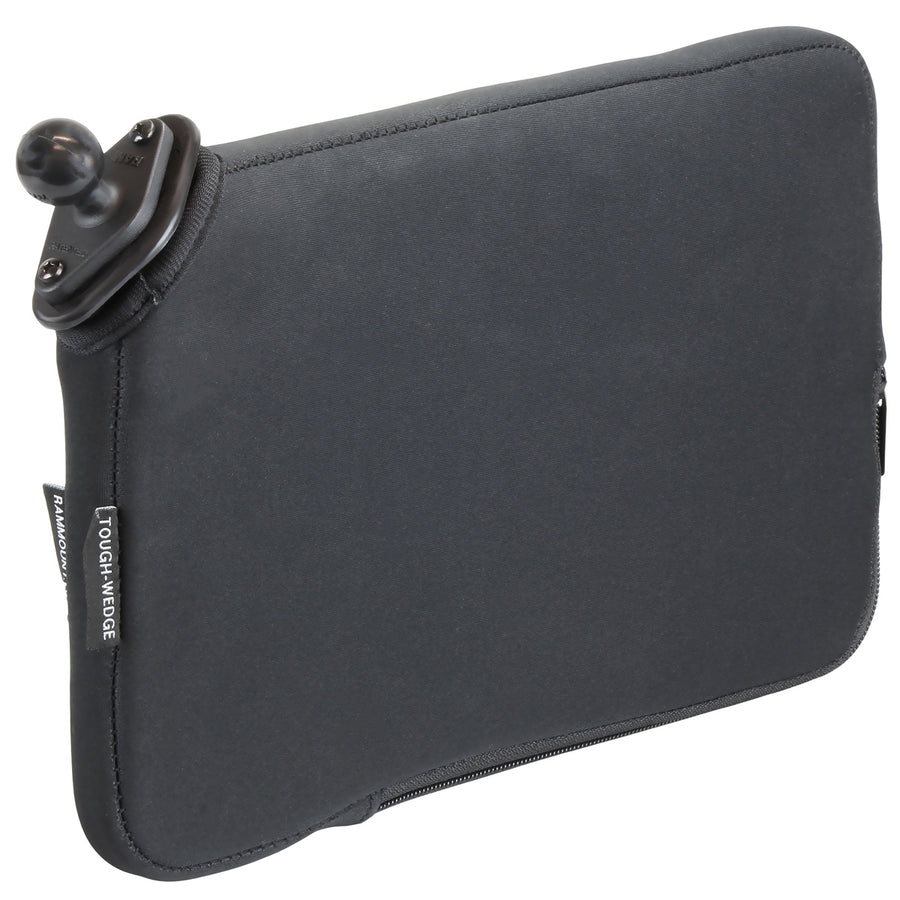

RAM^® Tough-Wedge^™ Base with Ball
Part #: RAM-B-407U UPC: 793442949043

Product Information

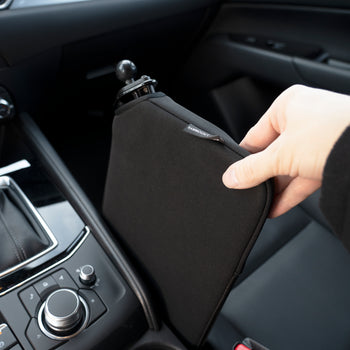

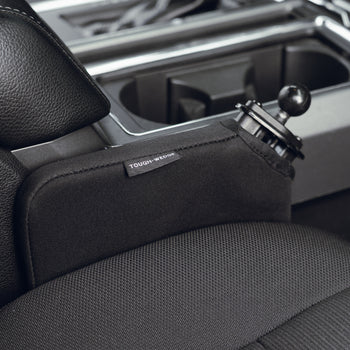

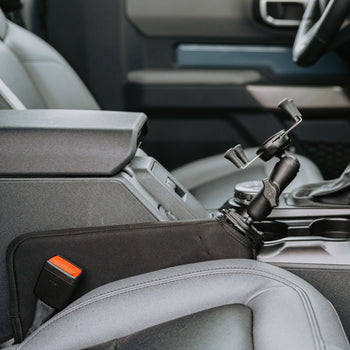

Overview	The Tough-Wedge^™ is a seat wedge mount that fits in the gap between the vehicle seat and center console; allowing easy access and operation of your mobile device. The Tough-Wedge^™ can also be used for back-seat applications, inserted into the pockets located on the back of the front seats. For capturing video on the go, place the Tough-Wedge^™ in your backpack with a RAM camera mount. The included diamond adapter contains the industry standard AMPS hole pattern that allows attachment to a variety of RAM mounts. Hardware included to attach the Tough-Wedge^™ to the mount. The 1" diamond ball base is compatible with all RAM-B size single and double socket arms.

Product Information

Overview

The Tough-Wedge^™ is a seat wedge mount that fits in the gap between the vehicle seat and center console; allowing easy access and operation of your mobile device. The Tough-Wedge^™ can also be used for back-seat applications, inserted into the pockets located on the back of the front seats. For capturing video on the go, place the Tough-Wedge^™ in your backpack with a RAM camera mount. The included diamond adapter contains the industry standard AMPS hole pattern that allows attachment to a variety of RAM mounts. Hardware included to attach the Tough-Wedge^™ to the mount. The 1" diamond ball base is compatible with all RAM-B size single and double socket arms.

Specifications
hardware included	Assembly Hardware
wedge dimensions	Length: 13.25" Height: 8.25" Thickness: 1"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	1.38 lb

RAM<sup>®</sup> Tough-Wedge<sup>™</sup> Base with Ball

Questions about our products? Email us for support.

RAM^® Tough-Wedge^™ Base with Ball

Part#: RAM-B-407U

UPC: 793442949043

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
