RAM^® ATV/UTV Rail Mount with Tough-Ball^™ 1/4"-20 Camera Adapter
Part #: RAM-B-231-2-252025 UPC: 793442941610 Patented

Product Information

Specifications

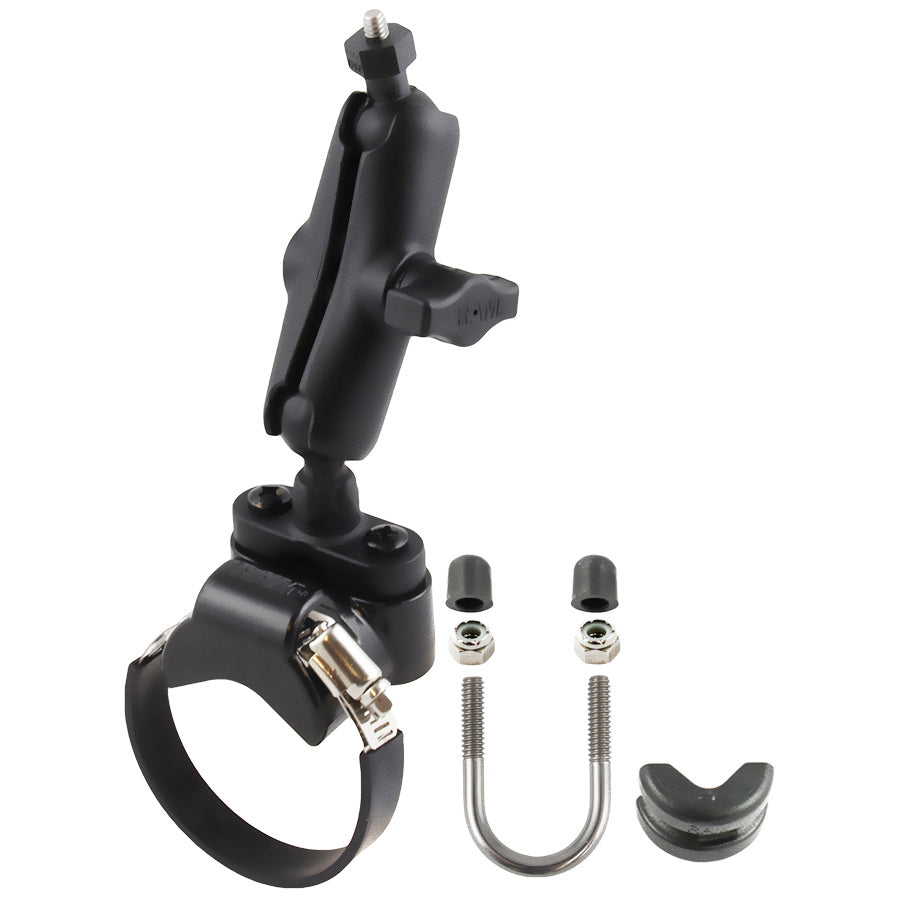

hardware included	(1) Strap Clamp Adapter (2) 1/4"-20 x 1" Machine Screws (2) 1/4"-20 Nylock Nuts (1) Zinc Worm Drive Strap Clamp (1) 6" Rubber Strip (1) 1/4"-20 U-Bolt for .5" - 1" Rails (2) Rubber Caps (1) U-Bolt Spacer

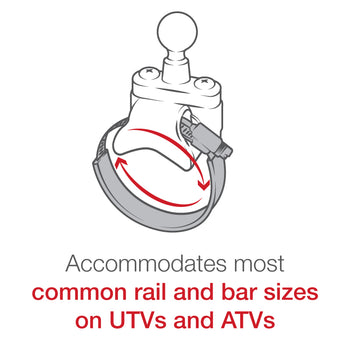

clamp range	U-Bolt: .5" - 1" diameter Strap Clamp: 1.57" - 3.15" diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Retail Bag
Weight	0.8 lb

RAM<sup>®</sup> ATV/UTV Rail Mount with Tough-Ball<sup>™</sup> 1/4"-20 Camera Adapter

Questions about our products? Email us for support.

Patented

RAM^® ATV/UTV Rail Mount with Tough-Ball^™ 1/4"-20 Camera Adapter

Part#: RAM-B-231-2-252025

UPC: 793442941610

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$58.49
