RAM® ATV/Side By Side Ball Base for Rails up to 3.15" - Stainless Steel
Part #: RAM-B-231-2 UPC: 793442905650

Product Information

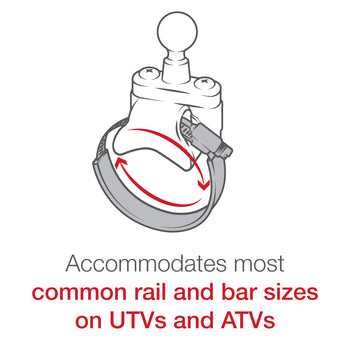

Overview	The RAM-B-231-2 consists of a 1" diameter rubber ball connected at right angles to a base that contains a flexible metal strap. The strap base tightening screw is encased in a compact housing for a clean, safe finish. The strap is long enough to wrap around handle bar posts found on most ATV, Side By Side, Snowmobiles, Motorcycles and any other applications you can think of.

Specifications

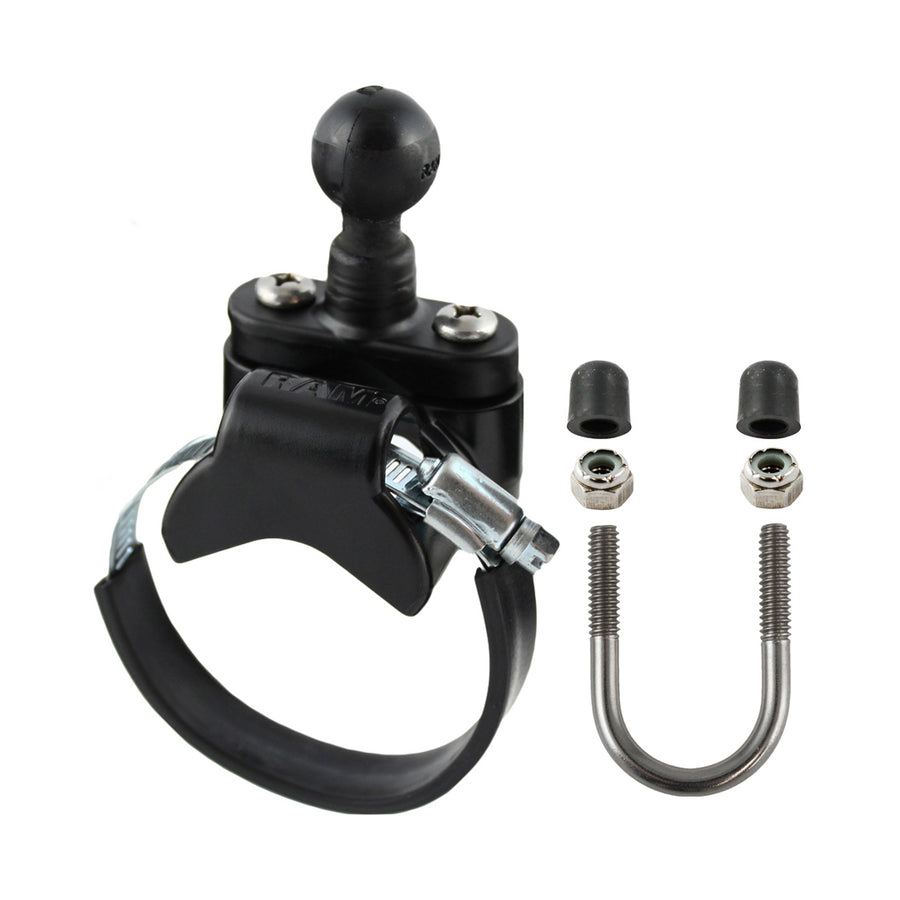

hardware included	(1) Strap Clamp Adapter (2) 1/4"-20 x 1" Machine Screws (2) 1/4"-20 Nylock Nuts (1) Zinc Worm Drive Strap Clamp (1) 6" Rubber Strip (1) 1/4"-20 U-Bolt for .5" - 1" Rails (2) Rubber Caps (1) U-Bolt Spacer
clamp range	U-Bolt: .5" - 1" diameter Strap Clamp: 1.57" - 3.15" diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Retail Bag
Weight	0.42 lb

RAM® ATV/UTV Ball Base for Rails up to 3.15" - Stainless Steel

RAM® ATV/Side By Side Ball Base for Rails up to 3.15" - Stainless Steel

Name: RAM® ATV/Side By Side Ball Base for Rails up to 3.15" - Stainless Steel
Brand: RAM Mounts
SKU: RAM-B-231-2
Price: 32.49 USD
Availability: InStock

Part#: RAM-B-231-2

UPC: 793442905650

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$32.49

Options

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

The RAM-B-231-2 consists of a 1" diameter rubber ball connected at right angles to a base that contains a flexible metal strap. The strap base tightening screw is encased in a compact housing for a clean, safe finish. The strap is long enough to wrap around handle bar posts found on most ATV, Side By Side, Snowmobiles, Motorcycles and any other applications you can think of.

hardware included:

(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range:

U-Bolt: .5" - 1" diameter
Strap Clamp: 1.57" - 3.15" diameter

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Retail Bag

Weight:

0.42 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Documents

Knowledge Base: Ball Sizes

QUESTIONS & ANSWERS

Have a Question?

Ask a Question

Will this fit the handlebars of my motorcycle?

The strap hose clamp portion of the RAM-B-231-2 will accommodate a bar or rail between 1.57" and 3.15" in diameter, while the U-bolt portion of that base will allow you to use a bar or railing between .5" and 1" in diameter.
