RAM® Ball Adapter with Hardware for Raymarine Dragonfly - B Size
$13.99

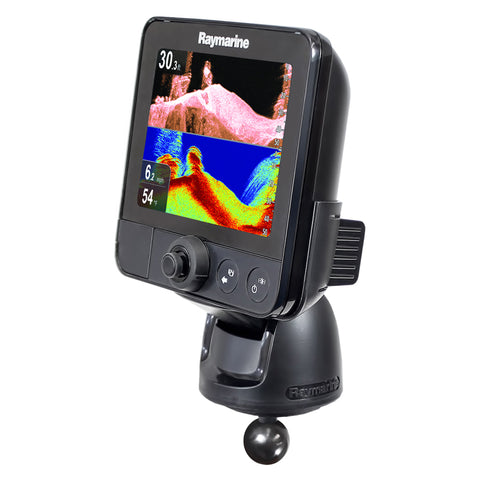

The RAM-B-202U-RYM1 consists of a 1" diameter rubber ball connected to a flat 2.5" diameter base. The base has pre-drilled holes, including the universal AMPs hole pattern. Included are (3 quantity) (#8-32 x 3/4" PH PD Mach Screws) and (3 quantity) (#8-32 SS Nylock Nuts) that will connect the RAM-B-202U-RYM1 to the bottom of all Raymarine® Dragonfly™ Sonar/GPS devices.
RAM® Ball Adapter with Hardware for Raymarine Dragonfly - B Size
Overview
Overview
The RAM-B-202U-RYM1 consists of a 1" diameter rubber ball connected to a flat 2.5" diameter base. The base has pre-drilled holes, including the universal AMPs hole pattern. Included are (3 quantity) (#8-32 x 3/4" PH PD Mach Screws) and (3 quantity) (#8-32 SS Nylock Nuts) that will connect the RAM-B-202U-RYM1 to the bottom of all Raymarine® Dragonfly™ Sonar/GPS devices.

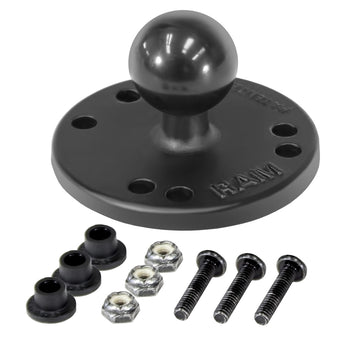

hardware included
(3) #8-32 x 3/4" Machine Screws
(3) #8-32 Nylock Nuts
(3) .312" x .187" Shoulder Washers
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminum
packaging type
Poly Bag
Weight
0.17 lb
